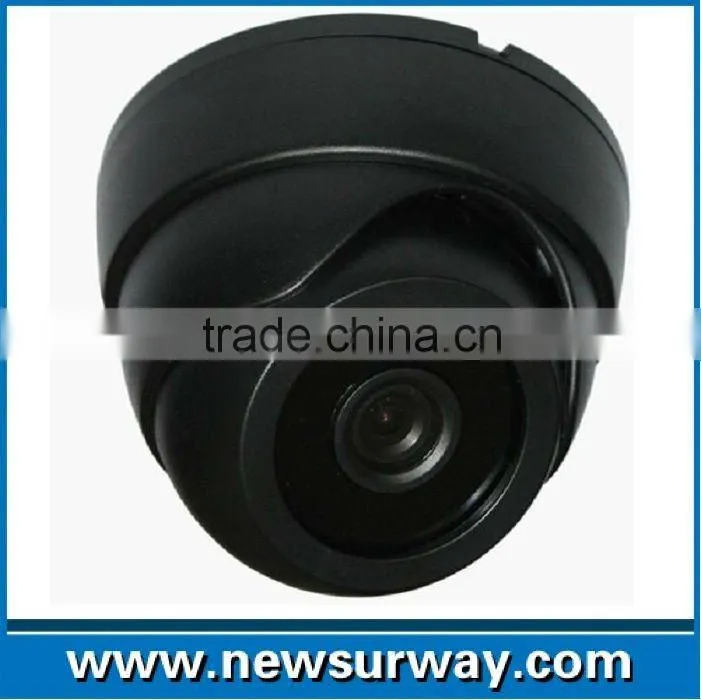

1/4 Color CMOS 420TVL Dome Camera TC-4059CH/2.5 Inch Trumpet Shell

Name: 1/4 Color CMOS 420TVL Dome Camera TC-4059CH/2.5 Inch Trumpet Shell
Brand: VIVIEYE
SKU: 130960771
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

VIVIEYE

Model Number:

TC-4059CH

Shenzhen Newsurway Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VIVIEYE

Model Number TC-4059CH

Type Analog Camera

Style Dome Camera

Sensor Other, CMOS, 1/4 Color CMOS

Technology Other

Special Features Other, trumpet shell

Specifications

1.1/4 Color CMOS 420TVL
2.Vandalproof IR Dome Camera
3.MTV-2.5mm 2.8mm 3.6mm 6mm 8mm optional
4.30 PCS 5mm IR LEDs, 25m

Model	TC-4059CH	TC-4059P	TC-4059CG
Color/BW	Color
Sensor	1/4 CMOS CCD	1/4” SHARP CCD	1/3 CMOS CCD
System of Signal	PAL/NTSC
Picture element	PAL: 582(H) X500(V) NTSC: 510(H) X492(V)
Horizontal Resolution	420TVL		600TVL
Minimum Illumination	0.3 Lux/F1.2
Synchronizing System	Internal
S/N Ratio	>48dB
Auto Electronic shutter	1/50~1/100,000SEC ON/OFF
Video output	1.0Vp-p 75 ohm BNC
Lens	Board Lens 3.6mm (Can option 2.5mm 2.8mm 6mm 8mm)
Power supply	DC12V
Power consumption	150mA
Operation temperature	-10~+50 Celsius
Storage temperature	-30~+80 Celsius
Dimensions	110(D)*75(H) mm/2.5 Inch
Weight	200g
