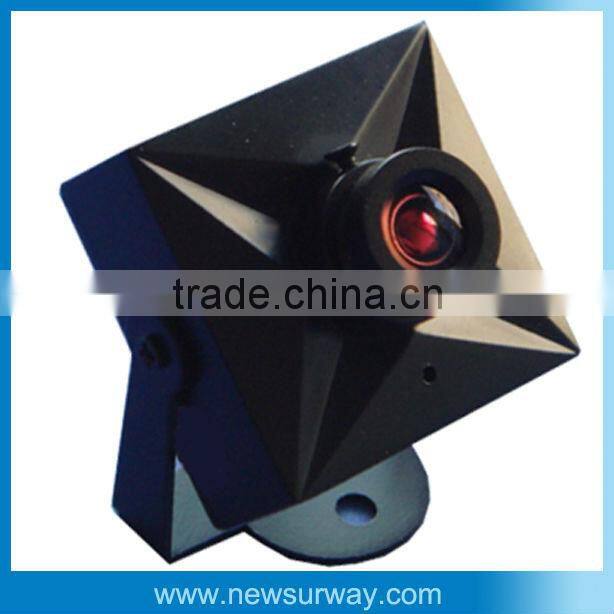

2012 New Housing 1/3 Color CMOS 6mm Lens Mini Survillance Camera with 702SD chip

Model

CS-301A

Color or B/W

Color

Sensor

1/3 CMOS

System of Signal

PAL/CCIR NTSC/EIA

Horizontal Resolution

>380TVL

Minimum Illumination

3.0Lux

Lens

3.6mm

Effective Pixel:

CCIR: 628X582 EIA: 501X492

Dimensions(mm)

25(W)*25(H)*30(D)

Auto Exposure Control:

1/60-1/2000 Sec.

Scanning System Frequency:

CIR: 50HZ. EIA: 60HZ

Video output

1.0Vp-p 75 ohm BNC

S/N Ratio:

>40db

Power supply

DC 9V

Power consumption

<0.2W
