Vehicle HDD&SD DVR

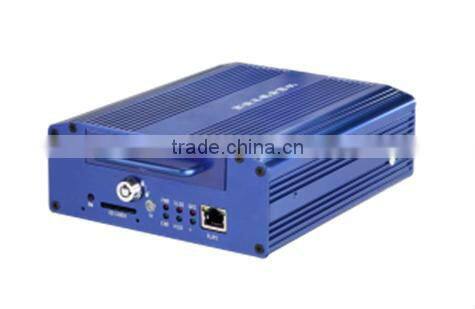

Name: Vehicle HDD&SD DVR
Brand: VIVIEYE
SKU: 130953471
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

VIVIEYE

Model Number:

MDR-514DG

Shenzhen Newsurway Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VIVIEYE

Model Number MDR-514DG

Specifications

1.Vehicle HDD&SD DVR
2.include GPS, G-sensor & 3G module
3.Support SD card up to 32G

H.264 Video compression format; 4 video and 2 Audio input, supports D1 high resolution images
Support 6V~48V Wide Voltage Range, instaneous voltage can up to 70V, provide a strong circuit protection
Hard drive recording (Support SD card recording synchronization), can protect the data lost due to the shock
Support automatic ON/OFF setup, can setup many times
Support unusual reboot function, protect machines & resist data-loss
Support recording packaging time setup
Support fire-off delaying recording
Support file fragmentation clearing and data protection
Support Auto recording, alarm recording, timed recording
Support recording about vehicles state, vehicle no. and vehicle route
Support GPS/G-SENSRO/3G module expansion (optional)
Super network function
Adopt aviation A&V joint ,easy to access and anti-shock
Easy to operate, wireless remote control and wired control panel can be optical
Strong client program. Support monitoring , playback , recording and screenshot
Support software upgrading through hard disk. Support customized function

Model	MDR-514	MDR-514G	MDR-514DG
Video Input	4 channel
Video Output	1 channel
Audio Input	4 channel
Audio Output	1 channel
Video compression format	H.264
Resolution	D1/HD1/CIF selectable.
Video Frame rate	1ch&2ch D1 real time recording, 3ch&4ch CIF real time recording,
Recording	Fire recording, time recording, alarm recording
Storage	Hard drive( Support SD card recording synchronization)
Vehicle recording	Recording Vehicle operations (turn left/right, stop lamp), license NO. ,route, driver
System Protection	Saving the recording data when the power off, support hard disk upgrading
Network	RJ45 Ethernet interface and can copy the data through Wired/ Wireless networks, controlling and managing the main machine.
Module expansion	NULL	GPS/G-SENSRO	GPS/G-SENSRO/3G
PTZ control	NULL		RS232 can turn to PTZ interface
Alarm I/O	NULL		1ch input,1ch output
Battery	Wide Voltage Range. Operation voltage: 6V~48V; Recommend range: 8V-40V; instantaneous range: 6-70V. Support over voltage protection, under-voltage protection, short-circuit protection, transposition protection, fire on/off timing,delay power-off. Output voltage is 12V
Powder	2.4W
System	Embedded full-time multitask control system, support Chinese simplified & English
Working environment	Working temperature: -20C°to 50C°,Working humidity: <90%; storage temperature: -30C to 70C,Storage humidity<90%
Dimensions	200mm130mm65mm
