InGaAs PIN Diode Photo Detector Receptacle Module

InGaAs PIN Diode Photo Detector Receptacle Module thumbnail-1
InGaAs PIN Diode Photo Detector Receptacle Module photo-1
US$ 18.5 - 80 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
O-Send
Model Number:
ODE-1XXXXX
Contact Supplier Request Quote Chat Now
O-Send Opto-Electronics (Chongqing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Chongqing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name O-Send
Model Number ODE-1XXXXX
Package Type Other

Specifications

Small dark current
High linearity
High Accuracy
Power Meter

Absolute maximum ratings

Parameter

Symbol

Condition

Ratings

Unit

Storage temperature

Tstg

—

-40~+100

°C

Operating temperature

Top

—

-40~+85

°C

Reverse voltage

VR

CW

30

V

Soldering time

—

—

10

s

Soldering Temp

—

—

260

°C



Optical & electrical characteristics

Parameter

Symbol

Min.

Typ.

Max.

Unit

Remark

Test Condition

Wavelength Range

λ

850

—

1700

nm



—

Power Range

P

-70

—

6

dBm

*

Vr=5V,Rl =50Ω

-60

—

16

dBm

**

-50

—

26

dBm

***

-40

—

36

dBm

****

Dark Current

Id

—

0.1

1

nA

Φ300um

Vr=5V

—

—

3

nA

Φ500um

Vr=5V

—

—

5

nA

Φ1000um

Vr=0V

—

0.5

—

nA

Φ2000um

Vr=0V

Responsivity

R

—

0.85

—

A/W

*

Vr=5V,

λ=1310 nm

—

0.083

—

A/W

**

—

0.013

—

A/W

***

—

0.0013

—

A/W

****

Accuracy



—

—

±0.25

dB



@25°C

Capacitance

Ct

—

—

5

pF

Φ300um

Vr=5V, f=1MHz

—

—

13

pF

Φ500um

—

—

25

pF

Φ1000um

Response Time

Tr

—

—

1

ns

Φ300um

Vr=5V, 10~90%

—

—

5

ns

Φ500um

—

—

20

ns

Φ1000um

*    ODE-12××  * DE-13×X

***ODE-14××****ODE-15××

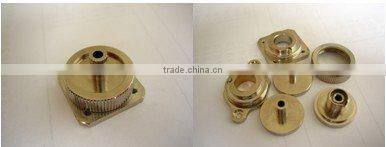

InGaAs PIN Diode Photo detector Receptacle Module

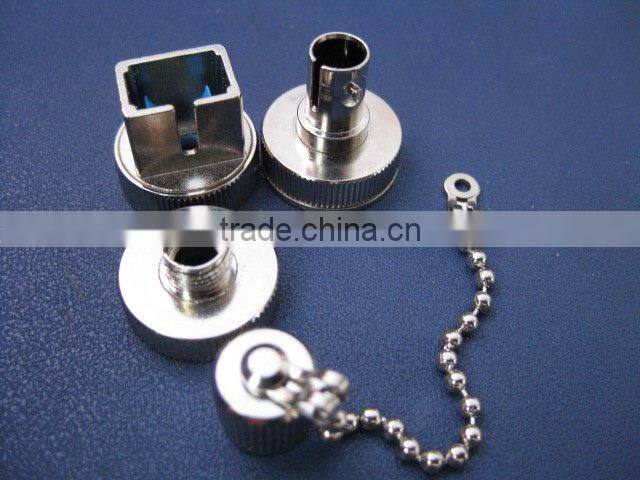

InGaAs PIN Diode Photo detector Receptacle Module
