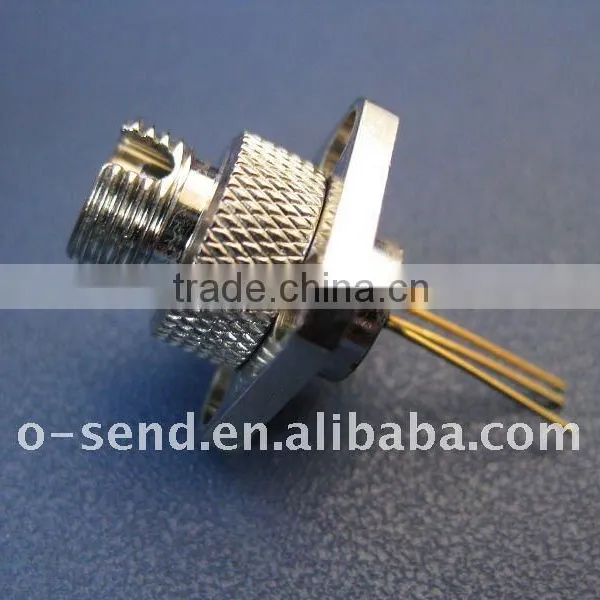

Help Center850nm PIN Diode
US$ 12 - 110
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
O-Send
Model Number:
ODE12XX
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB chongqing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Chongqing, China
Brand Name
O-Send
Model Number
ODE12XX
Type
Other, diode
Package Type
Other, coaxil
Specifications
Small dark currentHigh linearity
High Accuracy
Power Meter
Absolute maximum ratings
Parameter |
Symbol |
Condition |
Ratings |
Unit |
Storage temperature |
Tstg |
— |
-40~+100 |
°C |
Operating temperature |
Top |
— |
-40~+85 |
°C |
Reverse voltage |
VR |
CW |
30 |
V |
Soldering time |
— |
— |
10 |
s |
Soldering Temp |
— |
— |
260 |
°C |
Optical & electrical characteristics
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Remark |
Test Condition |
Wavelength Range |
λ |
850 |
— |
1700 |
nm |
|
— |
Power Range |
P |
-70 |
— |
6 |
dBm |
* |
Vr=5V,Rl =50Ω |
-60 |
— |
16 |
dBm |
** |
|||
-50 |
— |
26 |
dBm |
*** |
|||
-40 |
— |
36 |
dBm |
**** |
|||
Dark Current |
Id |
— |
0.1 |
1 |
nA |
Φ300um |
Vr=5V |
— |
— |
3 |
nA |
Φ500um |
Vr=5V |
||
— |
— |
5 |
nA |
Φ1000um |
Vr=0V |
||
— |
0.5 |
— |
nA |
Φ2000um |
Vr=0V |
||
Responsivity |
R |
— |
0.85 |
— |
A/W |
* |
Vr=5V, λ=1310 nm |
— |
0.083 |
— |
A/W |
** |
|||
— |
0.013 |
— |
A/W |
*** |
|||
— |
0.0013 |
— |
A/W |
**** |
|||
Accuracy |
|
— |
— |
±0.25 |
dB |
|
@25°C |
Capacitance |
Ct |
— |
— |
5 |
pF |
Φ300um |
Vr=5V, f=1MHz |
— |
— |
13 |
pF |
Φ500um |
|||
— |
— |
25 |
pF |
Φ1000um |
|||
Response Time |
Tr |
— |
— |
1 |
ns |
Φ300um |
Vr=5V, 10~90% |
— |
— |
5 |
ns |
Φ500um |
|||
— |
— |
20 |
ns |
Φ1000um |
* ODE-12×× ** ODE-13××
*** ODE-14×× **** ODE-15××
