Hot Selling High Quality Poe Switch 24v
US$ 40 - 500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, 9
Transmission Rate:
10/100Mbps
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Selling High Quality Poe NvrUS$ 40 - 500MOQ: 1 Piece -
Hot Selling High Quality Android Tablet pc Rj45 PoeUS$ 40 - 500MOQ: 1 Piece
-
Hot Selling High Quality Nvr PoeUS$ 40 - 500MOQ: 1 Piece
-
Hot Selling High Quality PoeUS$ 40 - 500MOQ: 1 Piece
-
Hot Selling High Quality Poe SwitchUS$ 40 - 500MOQ: 1 Piece
Products Status
Stock
Ports
Other, 9
Transmission Rate
10/100Mbps
Function
POE, SNMP, VLAN Support
Communication Mode
Other, Full-Duplex & Half-Duplex
Certification
CE,FCC,RoHS
Switch Capacity
1.8G
Brand Name
POWERLINK
Model Number
PL-POE
Place of Origin
Guangdong, China
hot selling high quality poe switch 24v
Product Description

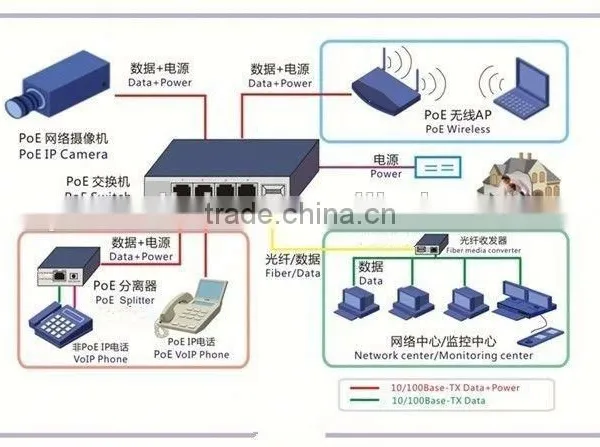

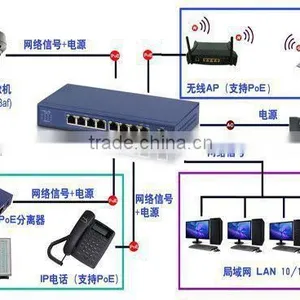

Powerlink’s PoE switch is a Power over Ethernet Switch, fully satisfied equipment’s frequently need to be powered in physical locations where mains power is not available or difficult to deliver. With data and power over Ethernet, the PoE switch is able to reduce cable installation and eliminate the need for electrical outlets on the wall, ceiling or any unreachable place. Energy saving is the key feature of the use of PoE in the deployment. PoE switch provides a compact, affordable, safe and reliable power solution for small to medium enterprises.
Features
Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at
Provides 9 10/100/ Base-TX ports
Provides 8 PoE injector and build in Industrial power
High back-plane bandwidth 1.8Gbps
IEEE802.3x Flow control
Surge protection for power port and data ports
EMI standards complies with FCC, CE class B
Built-in power supply and noiseless fan.
Specification
| Hardware | |
| Interface | 9 10/100M Base-TX ports , Auto-Negotiation, Auto MDI/MDIX |
| LED Indicator | PWR, 1-8 10/100M POE, 1-9 LINK/ACT LED |
| Power Supply | 100-240V AC/50-60Hz |
| POE Power | 15.4W per port, IEEE802.3af |
| Pin assignment | V+ (RJ45 Pin 4, 5), V- (RJ45 Pin 7, 8) / V- (RJ45 pin1,2) V+ (RJ45pin3,6) |
| Dimensions (L×W×H) | 330mm×200mm×44mm |
| Switching Features | |
| Standard | IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX Fast Ethernet IEEE802.3x Flow Control, IEEE802.3 af/at Power Over Ethernet |
| Access Method | CSMA/CD |
| Transmission Method | Store and Forward |
| Switch Architecture | Non-blocking |
| Data Transmission Capacity | 10/100Mbps (Half-duplex) 20/200Mbps (Full-duplex) |
| MAC Address Table | 1K |
| Others poe | |
| Certification | FCC,CE,RoHS |
| Environment | Operating Temperature: 0°C-40°C Storage Temperature: -20°C-70°C Operating Humidity: 5%-90% non-condensing Storage Humidity:5%-90% non-condensing |
| Package | 1* POE Switch(built-in power supply) 1* User's Mannual 1* Warranty Card |
| Order Information: | |
| S2009-4P-125 | 9 ports Unmanaged Ethernet PoE Switch with 4 PoE Injector 125W |
| S2009-8P-125 | 9 ports Unmanaged Ethernet PoE Switch with 8 PoE Injector 125W |
| S2009-8P-250 | 9 ports Unmanaged Ethernet PoE Switch with 8 PoE Injector 250W |
Packaging & Shipping
- Packaging : bags&caron box
- Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
- FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
- DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Our Services
- "One to one" heart to heart service:Sales representative serve for five clients only. We look forward the continuing long-term services for you, but not just one or two times' co-operation.
- Perfect after-sales service :24-hour designated telephone number, e-mail and customer manager
Company Information
Shenzhen powerlink electronic technology company limited is a high-tech private-run enterprise specialized in research development ,manufacturing customized video and fiber optical media converter products and power supply products . mainly manufacture Optical Fiber Transmission, Data Communication and Network Access Equipments. Included LD/PD, Optical Fiber Communication ,fiber media converter, digital video converters, media converters,Digital CCD cameral ,ethernet switch, video converter, fiber optic modem, protocol converter, fiber optic adapter, fiber optic cable, patch cord, optical coupler, wavelength division multiplexer, optical attenuator, fiber optic splice enclosure, fiber optic terminating box ,LED power supply ,switch power supply etc, which have been are widely applied in many industries like telecom, broadcast&television, finance,traffic safety protection, computer, campus network, interliligent district and electronic government affairs engineering etc. those products are used widely in more than 30 industries , such as Telecom ,safe city Surveillance, International Airports, Highway, Power, Hydropower, Public Security.
FAQ
Why POWERLINK
- Higher quality but lower price :Business Process Outsourcing. Outsourcing the repetitive non-core or core production process to professional suppliers, reduce cost; improve service at the same time. Can concentrate on control of the company's core technology, achieve high-end products positioning as well as understand the whole industry chain deeply
- Complete solution, meet individual requirements
- We thoughtfully consider from the initial design to material and supplier selection, from the main parts to one wire or even a screw. Combination local geographical, climatic characteristics, as well as factors such as regional culture in of product design, and fully customized to meet the requirements.
- Resource integration, provide you with the most satisfied products :We have accumulated thousands of solar manufacturers, hundreds of friendly cooperator, we will continue the accumulation.
- Professional technique, quality assurance:Control the quality from the source, professional product engineers and sales engineers make checks at all levels.
- ERP management :All management runs through pre-sale, sales, after- sale strictly in accordance with the ERP.
- Standardization,Atumization,Vitrification,Definite Responsibility,More Optimized Flow

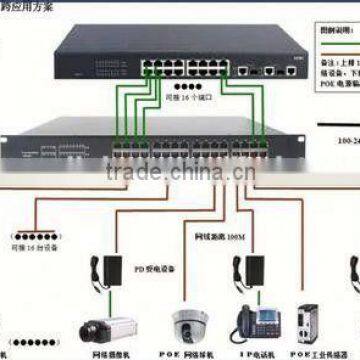

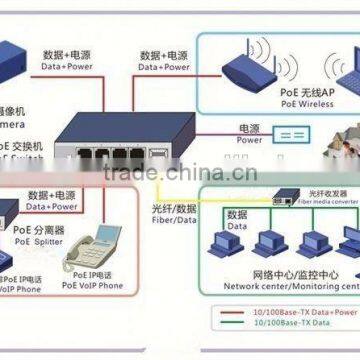

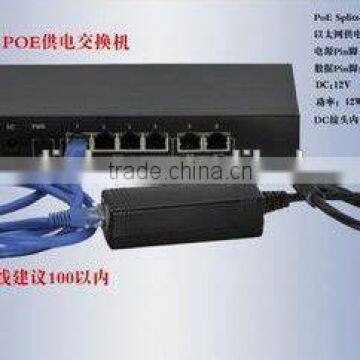

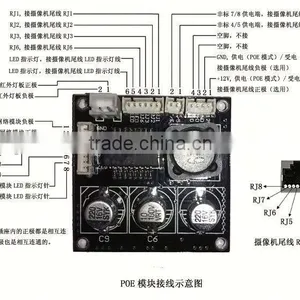

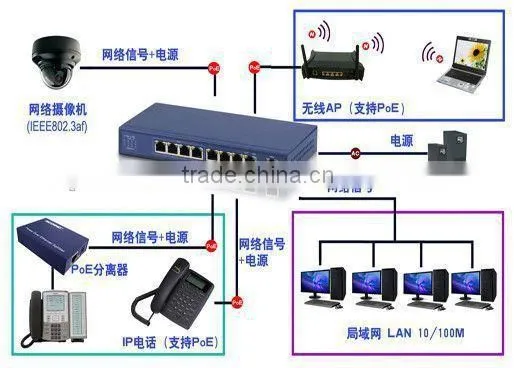

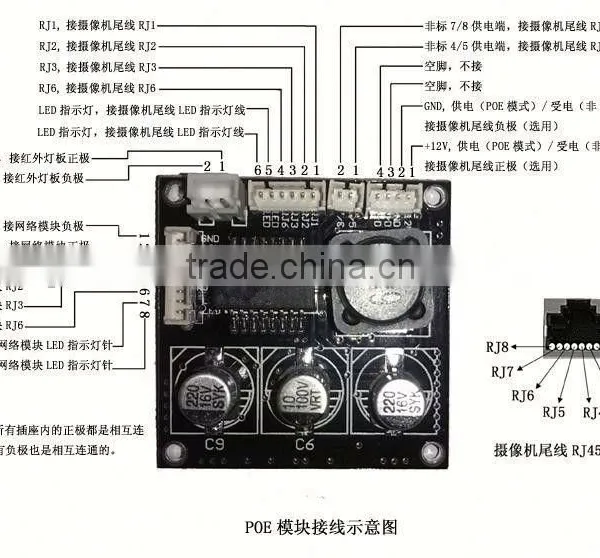

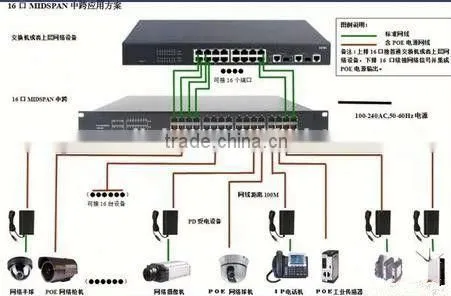

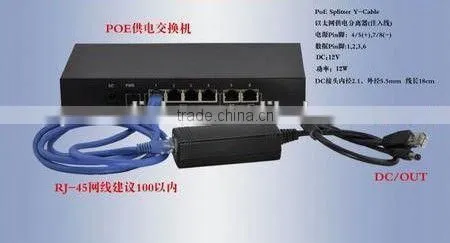

Detailed Images
