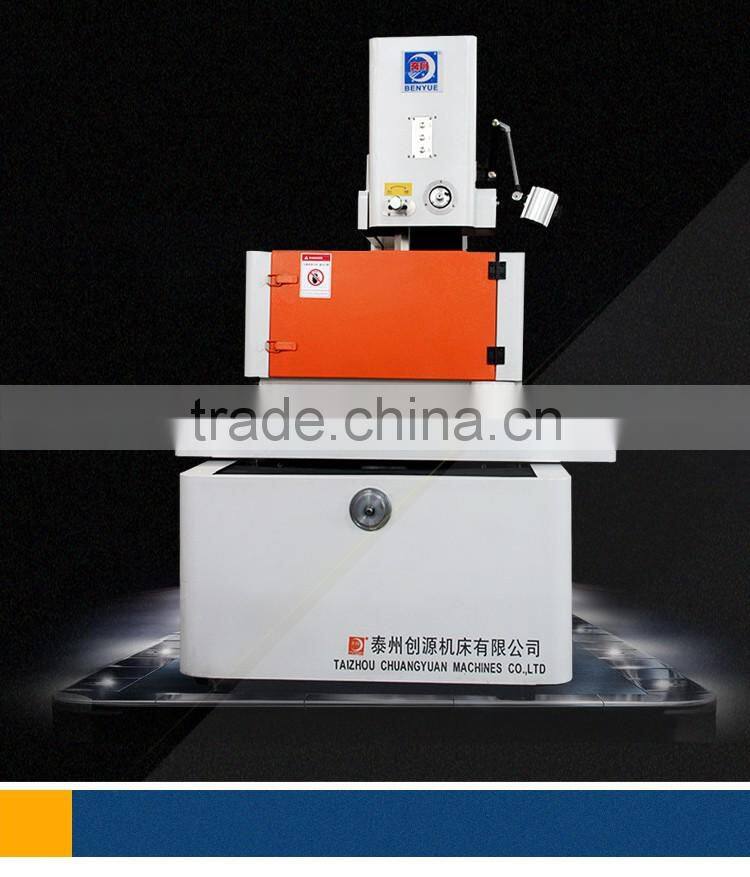

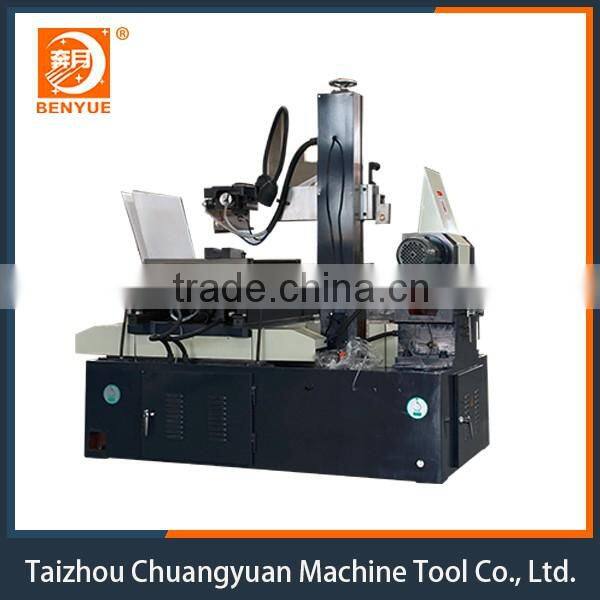

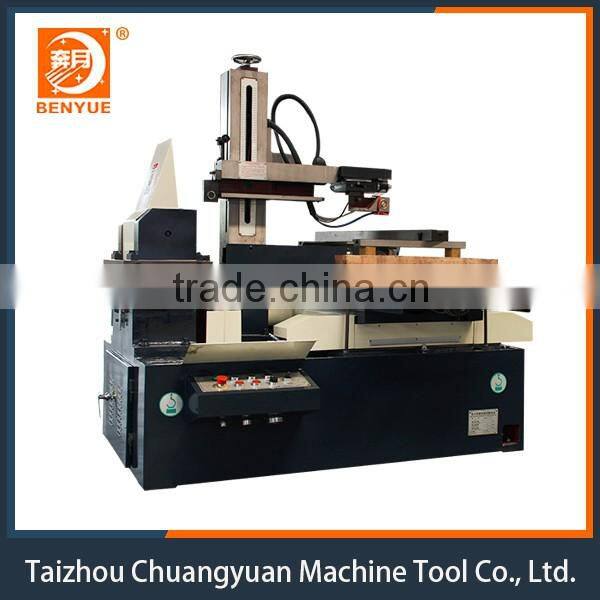

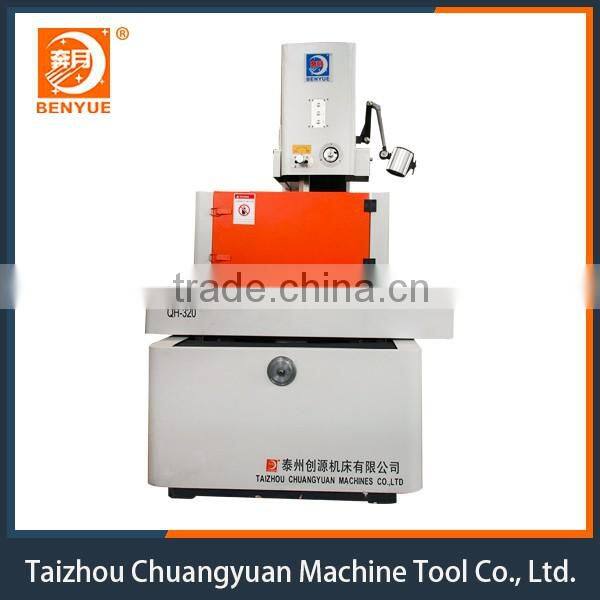

DK7740 Cnc Medium Speed Wire Cutting Machine CNC Wire EDM

DK7740 cnc medium speed wire cutting machine CNC wire EDM

Medium

Speed Wire

Cutting EDM

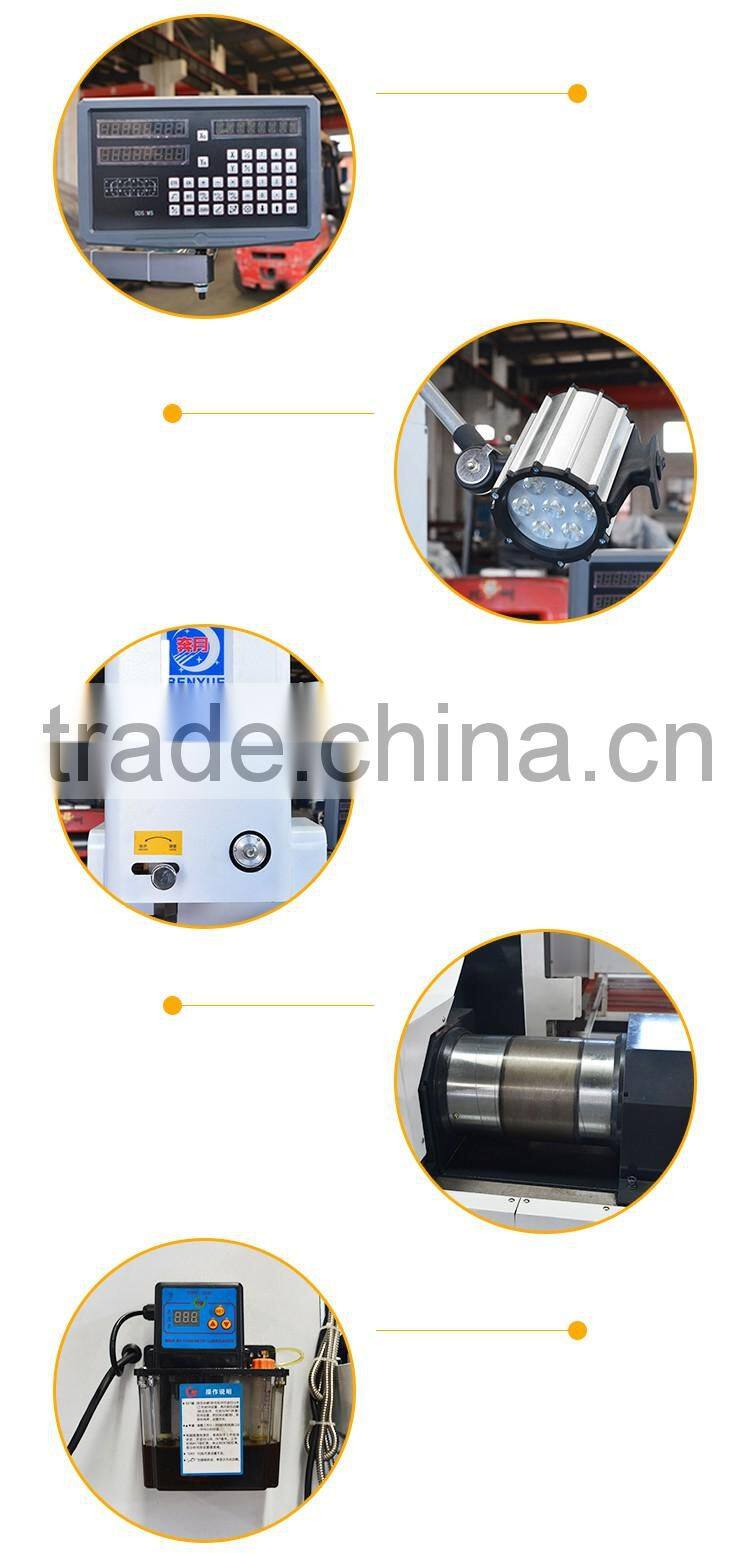

DETAILS

DIGITAL DISPLAY

SYSTEM

using grating ruler, displaying stroke

intuitively

FLOODLIGHT

Using the latest LED photosource,

brighter and more clearly

ELECTRIC LIFTING

using electric lifting, convenient for

operating

MOLYBDENUM

WIRE CANISTER

Strict and precision craftsmanship,

making the bounce reduce to minimum

OILCAN

Electric oilcan, let the machine service

life longer

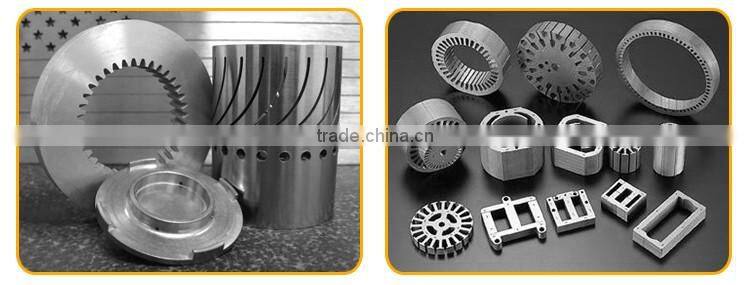

    workpiece

    wire edm machine  -- Optional:

     1.Taper cutting appliance. (±3°, ±30°)

     2.Straight guide rail

     3.Protective cover

     4.high speed controlling system

     dium-feeding wire controlling system

     6.integrated machine appliance

     7.autocut system,HL system,WinCut system,HF system

     8.DK77 Series can choose the Cutting Magnets

     9.DK77 Series can choose the Cutting Aluminium

     Features of the cnc wire cut edm machine:

      Special supporting design of the machine with high strength and heavy loading capacity.

     The machine uses the V-shape long span and long guiding rail structure lined with steel which helps the stability.

     The feeding wire part of the machine uses the driving system of gearwheel with lower noise and longer life.

     The maximum diameter of molybdenum wire is <= 0.25mm. The wire tube uses the chroming material with good

     wear resistance.

     The cutting accuracy of all direction is less than 0.01mm. Use high precision ball screw, which has high

     transmission efficiency,

     good positioning accuracy, long life and well synchronization performance. Use the high precision guide rail with

     high strength, heavy loading capacity and low resistance. High stability of the machine. The failure rate is

     almost 0.

     Apply beakless soft reversing, which prolongs the service life of reversing key. All the machine applies the high

     precision guide wheel appliance to enhance the accuracy of cutting. All the machine-tools use the laser

     interferometer to test the accuracy. (Renishaw Laser Test System from the great Britain).

PLYWOOD PACKING

    Guarantee  and after-sale service:

     one year guarantee for whole machine except wearing parts 24 hours technical support by e-mail calling or

     door-to-door service ues-friendly english software,user manual and detailed videos/CD If you're interested in our

     products, please feel free to contact with us and we would love to offer you our best price and smooth video could

     be supplied for evaluation.
