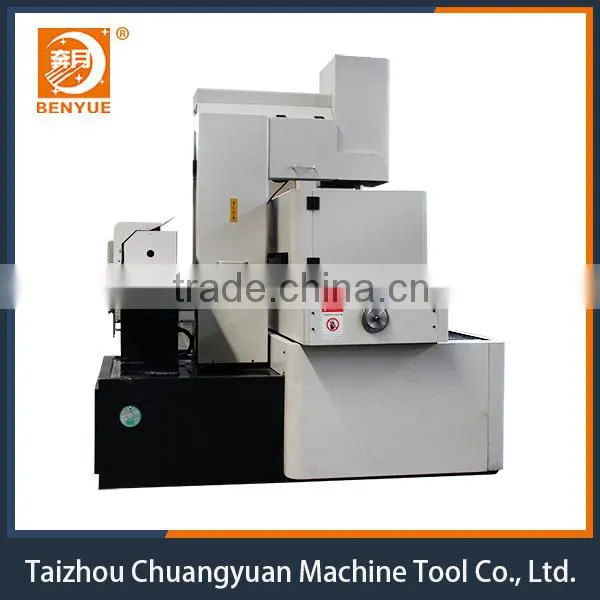

Medium
Speed Wire
Cutting EDM
DETAILS
DIGITAL DISPLAY
SYSTEM
using grating ruler, displaying stroke
intuitively
FLOODLIGHT
Using the latest LED photosource,
brighter and more clearly
ELECTRIC LIFTING
using electric lifting, convenient for
operating
MOLYBDENUM
WIRE CANISTER
Strict and precision craftsmanship,
making the bounce reduce to minimum
OILCAN
Electric oilcan, let the machine service
life longer
wire edm machine -- Parameter:
| Model | Workbench size | Workbench travel | Maximum cutting thickness | Maximum load weight | Optimum surface roughness | Cutting taper | Power | Power supply |
| QH-320 | 760x520mm | 400x320mm | 150mm | 300kg | Ra≤1.0um | 3°/80mm | <2KW | 380V,50HZ |
| QH-400 | 850x600mm | 500x400mm | 150mm | 500kg | Ra≤1.0um | 3°/80mm | <2KW | 380V,50HZ |
workpiece
wire edm machine -- Optional:
1.Taper cutting appliance. (±3°, ±30°)
2.Straight guide rail
3.Protective cover
4.high speed controlling system
dium-feeding wire controlling system
6.integrated machine appliance
7.autocut system,HL system,WinCut system,HF system
8.DK77 Series can choose the Cutting Magnets
9.DK77 Series can choose the Cutting Aluminium
Features of the cnc wire cut edm machine:
Special supporting design of the machine with high strength and heavy loading capacity.
The machine uses the V-shape long span and long guiding rail structure lined with steel which helps the stability.
The feeding wire part of the machine uses the driving system of gearwheel with lower noise and longer life.
The maximum diameter of molybdenum wire is <= 0.25mm. The wire tube uses the chroming material with good
wear resistance.
The cutting accuracy of all direction is less than 0.01mm. Use high precision ball screw, which has high
transmission efficiency,
good positioning accuracy, long life and well synchronization performance. Use the high precision guide rail with
high strength, heavy loading capacity and low resistance. High stability of the machine. The failure rate is
almost 0.
Apply beakless soft reversing, which prolongs the service life of reversing key. All the machine applies the high
precision guide wheel appliance to enhance the accuracy of cutting. All the machine-tools use the laser
interferometer to test the accuracy. (Renishaw Laser Test System from the great Britain).
PLYWOOD PACKING
Guarantee and after-sale service:
one year guarantee for whole machine except wearing parts 24 hours technical support by e-mail calling or
door-to-door service ues-friendly english software,user manual and detailed videos/CD If you're interested in our
products, please feel free to contact with us and we would love to offer you our best price and smooth video could
be supplied for evaluation.
