HD-SDI 3G-SDI/HDMI/VGA over fiber optic video converter transmitter and receiver set 1CH to 64CH cctv fiber video converter fiber optical transmitter and receiver OEM factory
Product Description
Optical Multiplexer is popularly with telecommunication operator and suitable in business for communication operator, government and kinds of entities. It is one of the most transmission equipment in point-point fiber optic network. Typical optical multiplexers are Video & Data & Audio Multiplexers, PDH Multiplexer. Powerlink optical multiplexers are highly manageable, accompanied by a network management system for configuration, service, performance, security, and fault management that enable cost-effective and efficient transport.

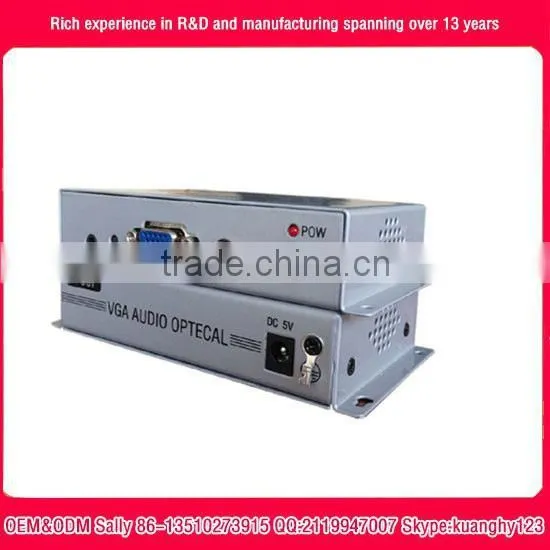

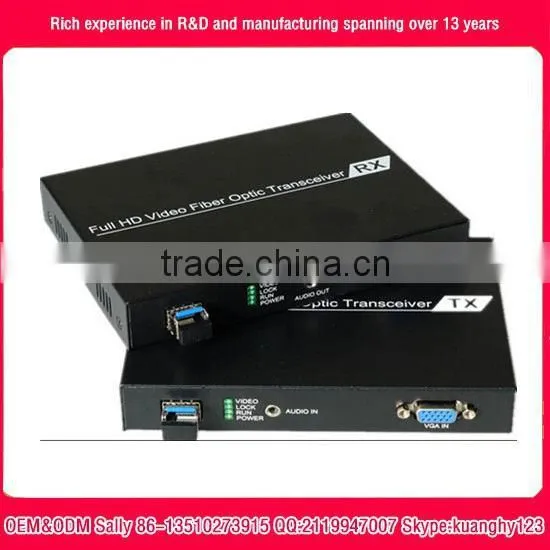

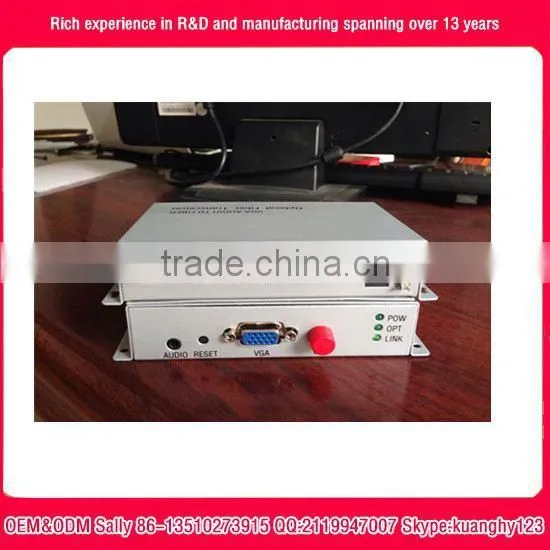

digitally transmits high-resolution VGA/RGB (up to WXGA) and stereo audio over one fiber, single-mode or multimode, single-core, 1310 nm wavelength. Ideal for point-to-point, point-to-multipoint and drop-and-repeat applications, it supports VGA, SVGA, XGA and WXGA (640 x 480, 1024*768, and 1280*1024, up to 1366 x 768) or RGBHV format.
SDI&HDMI&VGI over Fiber Video Converter-Transmitter+ Receiver. Powerlink supply SDI Digital over fiber video converter, 3G-SDI Digital over fiber video converter, HD-SDI over fiber video converter, and SDI-HDMI over fiber video converter. All of our optical/electric interfaces are in accordance with international standards, free of adjustment prior to mounting and applicable in various operating environments. Please feel free to contact us for all your Digital SDI&HDMI&VGI and other video conversion requirements.
HD SDI video signal can be transmitted through one single fiber with non-distortion, high-quality, long-distance transmission. This series of video to fiber converter is with Stable performance, clear picture quality,and high Stability for LED Status Indication on the body of device. The working status of devices can be visually observed. At the same time,the switch value,voltage,working status and other reverse useful signal information can be controlled by data RS485.This makes our devices more flexible when different customers’ request comes.

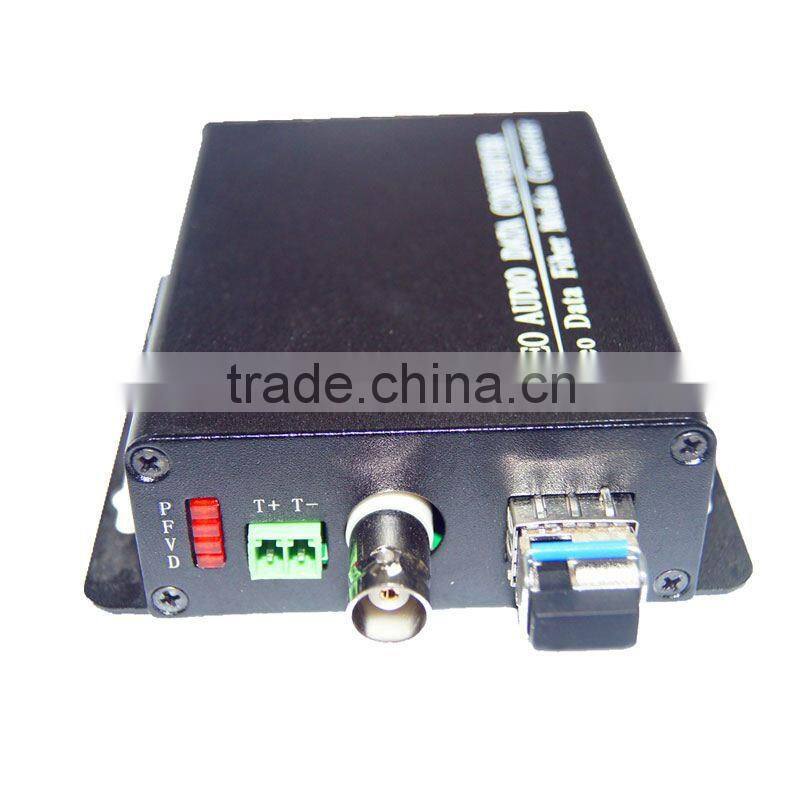

The FS3020D could transmit HD/SD-SDI as per SMPTE 424M-2006, 292 and 259, with or without embedded audio and data, as well as DVB-ASI over one single mode or multimode fiber. Signals are equalized and re-clocked prior to fiber optic transmission. And HD-SDI Unidirectional Fiber Optic Transmitter should be worked with HD-SDI Unidirectional Fiber Optic Receiver.The price on the website is for Pair.
Features
- CRAFT: uncompressed technology
- VIDEO SPEC: 1080P 30 Hz
- Transmisson Distance:20km
- Fiber Type: Single-mode Simplex
- 2-channel unidirectional HD-SDI and 1-ch reversed RS485/RS232/RS422 data and 1-ch analog audio over one fiber
- Range from 19.4Mb/s to 1.485Gb/s
- SMPTE 292M (1.485Gb/s) clock recovery
- Support all SMPTE 295M standard, 143Mb/s - 360Mb/s
- Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard
- Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
- 150m automatic cable equalization, all the 1.485 Gb / s rate below(Belden 1694A)
- LED Status Indication to monitor the working conditions and critical parameters
- Optional network management system
- Support SFP transceiver hot-plugged
- Support stand-alone, 1U rack mount and 4U rack mount
Applications
- Remote OB Van/Truck Video Feeds
- Broadcast Studio Camera Feeds
- Long-haul Signal Transport
- TV station/video conference
- Lecture Hall Projector Connectivity
- Medical/Surgical Room Broadcast
- Building to ing video conference calling
- Small corporate campus video links Product connection diagram

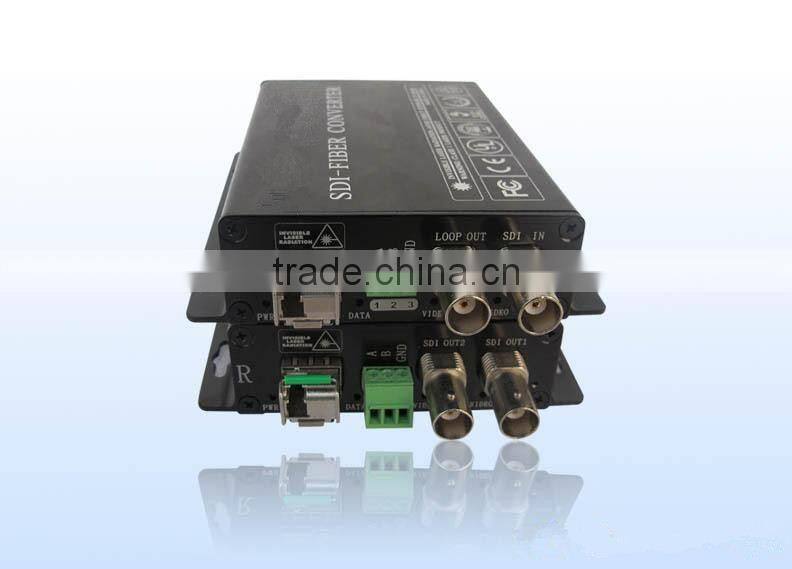

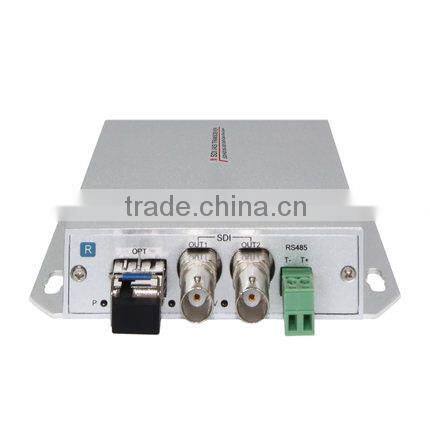

Description for HS-SDI Transmission:
1. Video Interface: High-Definition SDI Video Input (input for signal to be transferred)
2. Fiber-optic video transceiver mark: T: fiber-optic transmitter R: fiber-optic receiver Power Indicator (ON for power-on; OFF for power-off) TX: rns on upon receiving optical signal; turns off when no optical signal is received
3. SDI-DATA: Turns on when SDI signal is input; turns off when there is not. 485/232: Turns on when there is reverse data signal output, or turns off when there is not.
4. Data Interface: Reverse Data Output (for transmission of data sent to optical received) Left: Positive Terminal of Data Output Middle: Negative Terminal of Data Output Right: Earth Terminal (unnecessary for RS485/232 double wires)
Make to Order (Extend information)
| Video Interface | Stereo Audio | Fiber Type | Fiber Port | Data Port | Power Supply | Package |
| 1 CH VGA | 1 CH Forward 1 channel reverse 1 channel bidirectional | Single-mode Simplex | FC ST SC LC | 1 channel Forward RS485/RS232/RS422 1 channel reverse RS485/RS232/RS422 1 channel bidirectional RS485/RS232/RS422 | AC110~260V | stand-alone 1U rack mount |
| Serial TV, BNC Input | Signal standard: SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and Telecom/Datacom |
| rate(19.4Mb/s - 1.485Gb/s) | |
| Input number: 2 | |
| Reflection loss: >15DB | |
| Equilibrium: 0-150m @1.485Gb/s | |
| Connector: FC/PC(SC/PC optional) | |
| Optics | Channel: 2 |
| Type: single-mode (multimode optional) | |
| Wavelength: 1310nm /1550nm(depends on SFP transceiver) | |
| Trasmission distance (550m-120Km( depend on SFP transceiver)) | |
| Reflection loss: > 15dB | |
| Dithering: < 0.2UI | |
| Connector:LC/ FC/PC (SC/PC optional) | |
| Serial TV, BNC output (EO/OE) | Channel: 2 (2 channel optional) |
| Signal level: 800mV nominal | |
| Rise/fall time: 200ps indication | |
| Overshoot: < 10% amplitude | |
| Reflection loss: >15dB | |
| Dithering: < 0.2UI | |
| Connector: 75Ω BNC | |
| Analog audio | Input/ output impedance: 600Ωequilibrium |
| Input/output interface: XLR | |
| Max. input/output level: +15 dBu | |
| Frequency Response: 20Hz-20KHz,±0.1dB | |
| SNR: > 85dB(A weighted) | |
| THD+N: < 0.01%@1KHz | |
| Crosstalk: < -90dB | |
| Data | Channel: 1 |
| Data format: RS-485/422/RS232 (full/half duplex) and support NRZ, RZI and Manchester | |
| Data rate: DC to 100 Kb/s | |
| Mode: Full/half duplex | |
| Connector: wire connecting terminal | |
| Power and environmental indication | Operating temperature: -30°C~+50°C |
| Pressure: 1A@12VDC | |
| Power: 12 W | |
| EMI/RFI: meet FCC Part 15 Class A, EU EMC standard | |
| Average time trouble-free: >100000 hours | |
| SDI video format supports | |
| 625/25PAL;525/29.97NTSC;525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94; | |
