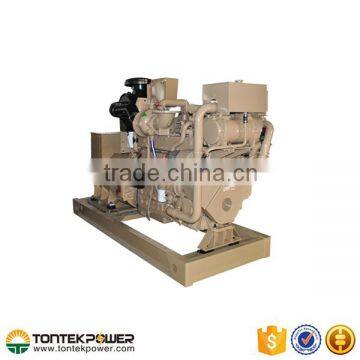

380kW Four Stroke Electrical Power Marine Gen-set Used For Boats
US$ 37,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
TONTEK POWER
Model Number:
CCFJ380J-WTPC6
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
400kW Water Exchanger Cooled Electrical Marine GeneratorUS$ 31,000 - 34,000MOQ: 1 Set -
280kW Heat Exchanger Electrical Power Marine GeneratorUS$ 25,000 - 28,000MOQ: 1 Set
-
440kW Four Stroke Marine Generator With CCSUS$ 38,000 - 41,000MOQ: 1 Set
-
450kW CCS Certificate Marine Generator With Aisikai ATSUS$ 38,000 - 41,000MOQ: 1 Set
-
500kW Marine Generator With CCS/BVUS$ 65,000 - 70,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
TONTEK POWER
Model Number
CCFJ380J-WTPC6
Output Type
AC Three Phase
Speed
1800RPM
Frequency
60HZ
Rated Power
380kW/475kVA
Rated Voltage
440V
Rated Current
684A
Product Attribute
| 380kW Four stroke Electrical Power Marine Gen-set Used For Boats | |||||||||
| 1. Specification of genset | |||||||||
| Gensets model | CCFJ380J-WTPC6 | ||||||||
| Prime power | 380KW/475KVA | ||||||||
| Rated Voltage(V) | 440 | ||||||||
| Rated frequency(HZ) | 60 | ||||||||
| Rated Speed(RPM) | 1800 | ||||||||
| Power Factor | 0.8(lagging) | ||||||||
| Dimensions(mm) (L×W×H) | 3170x1000x1905 | ||||||||
| Genset Weight(kg) | 3600 | ||||||||
| 2. Specification of diesel engine | |||||||||
| Engine model | K19-DM | ||||||||
| Output power | 467.5kW/584kVA | ||||||||
| Number of Cylinders | 6 | ||||||||
| Cylinder arrangement | -In Iine | ||||||||
| Cycle | Four stroke | ||||||||
| Aspiration | Turbocharged,LTA | ||||||||
| Bore×Stroke (mm×mm) | 159x 159 | ||||||||
| Displacement (Liter) | 19 | ||||||||
| Compression Ratio | 13.5:1 | ||||||||
| Speed Governor | Electrical | ||||||||
| Cooling System | cooled by heat exchanger | ||||||||
| Total lubrication system capacity (L) | 70 | ||||||||
| Fuel Consumption at 100% Load (g/kw.h) | 208 | ||||||||
| Starting Method | DC24V electrical starting | ||||||||
| 3. Specification of alternator | |||||||||
| Alternator brand | Stamford | ||||||||
| Alternator model | HCI 4F | ||||||||
| Rated power | 380KW/475KVA | ||||||||
| Number of Phase | 3 | ||||||||
| Number of Bearing | 1 | ||||||||
| Protection Grade | IP22 | ||||||||
| Altitude | ≤1000m | ||||||||
| Exciter Type | Brushless ,Self-exciting | ||||||||
| Insulation Class | H | ||||||||
| Telephone Influence Factor (TIF) | ≤50 | ||||||||
| THF | ≤2% | ||||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||||
| Transient State Voltage | ≤-15%~+20% | ||||||||

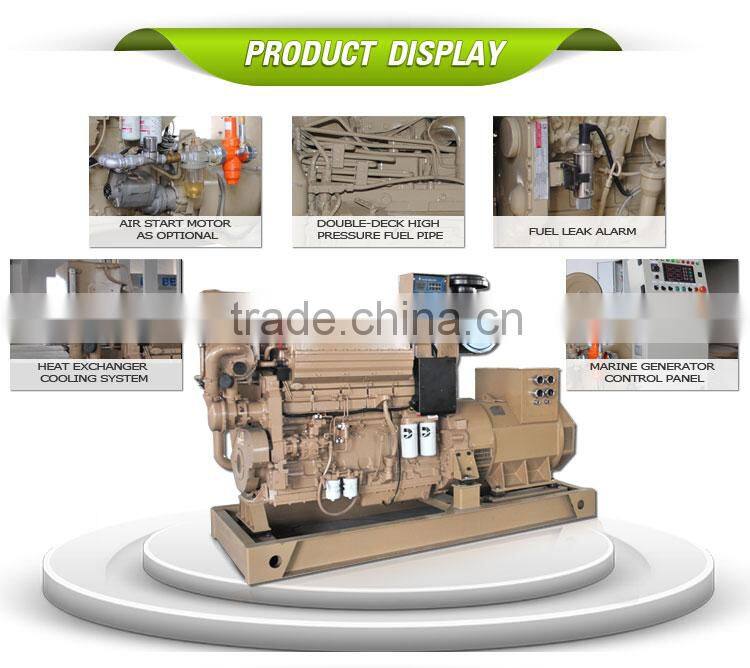

Product Description
Packaging & Shipping
Payment terms: 30% T/T as deposit, 70% balance be paid before shipment or
100% irrevocable L/C at sight
Delivery time: 5-25 days against deposit (according to specific project)
