Help Center90KW/110KVA 6Cylinder Marine Generator Prices
Related Products
-
20kW Weight Electric 25KVA Marine GeneratorUS$ 2,171 - 5,607MOQ: 1 Set -
50KVA Small Cooled by Heat Exchanger Marine GeneratorUS$ 6,373 - 7,387MOQ: 1 Set
-
62.5KVA Electric Starting Four Stroke Marine GeneratorUS$ 6,798 - 7,801MOQ: 1 Set
-
64kw/80kva Electric Marine Generator For BoatsUS$ 6,498 - 7,801MOQ: 1 Set
-
75kW/94kVA Marine Generator For Boats PricesUS$ 8,133 - 8,572MOQ: 1 Set

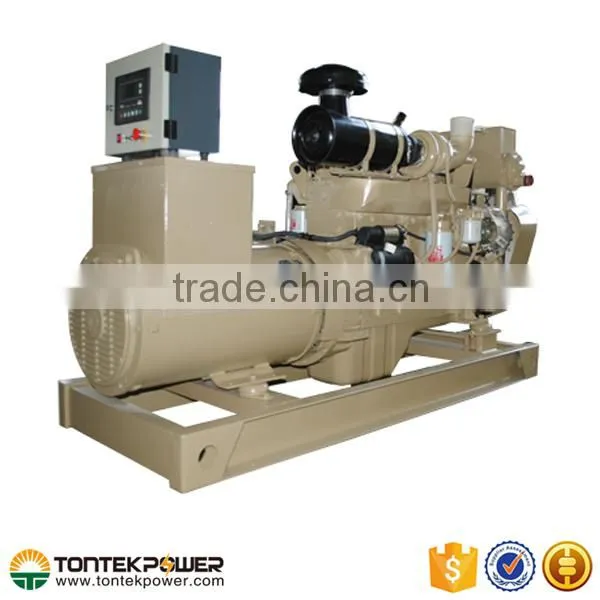

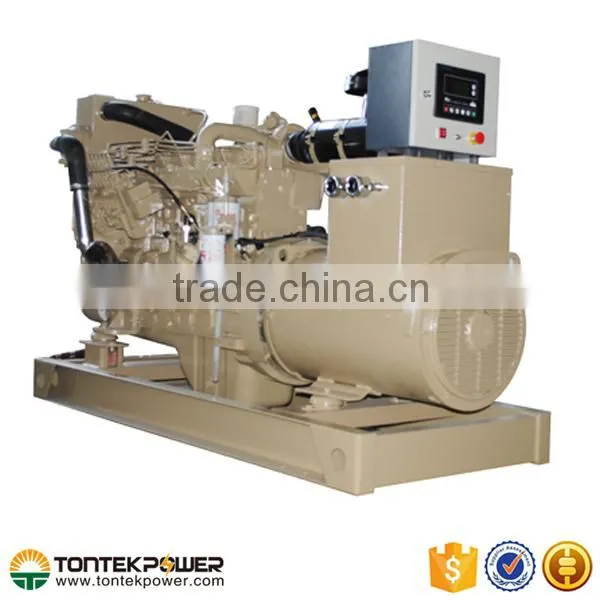

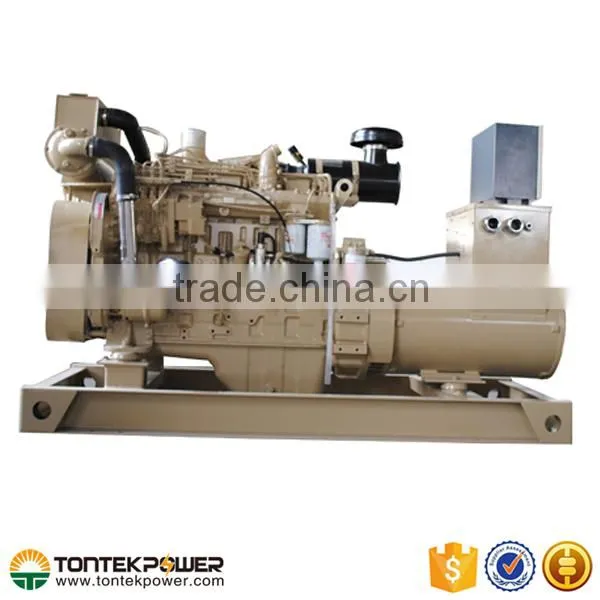

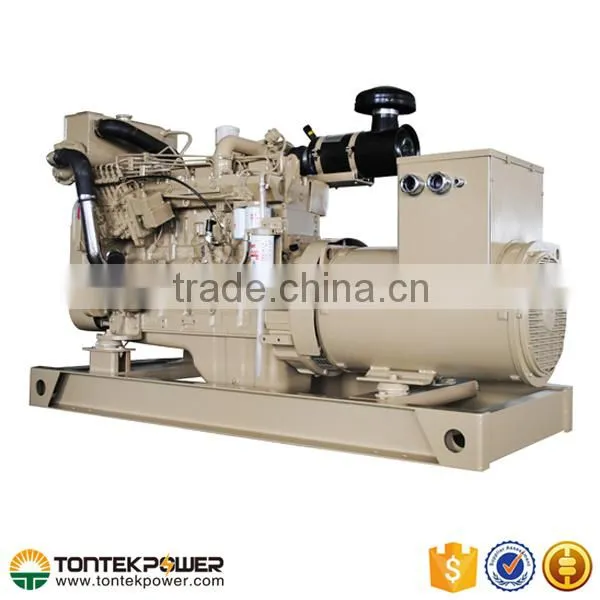

| 90KW/110KVA 6Cylinder Marine Generator Prices | |||||||||
| 1. Specification of genset | |||||||||
| Gensets model | CCFJ90J-WTPC5 | ||||||||
| Prime power | 90KW/113KVA | ||||||||
| Rated Voltage(V) | 400 V | ||||||||
| Rated frequency(HZ) | 50 | ||||||||
| Rated Speed(RPM) | 1500 | ||||||||
| Power Factor | 0.8(lagging) | ||||||||
| Dimensions(mm) (L×W×H) | 2080x895x1300 | ||||||||
| Genset Weight(kg) | 1200 | ||||||||
| 2. Specification of diesel engine | |||||||||
| Engine model | 6BTA5.9-GM100 | ||||||||
| Output power | 110kW/137.5kVA | ||||||||
| Number of Cylinders | 6 | ||||||||
| Cylinder arrangement | In-Iine | ||||||||
| Cycle | Four stroke | ||||||||
| Aspiration | Turbo ,Water /Air Cooling | ||||||||
| Bore×Stroke (mm×mm) | 102x 120 | ||||||||
| Displacement (Liter) | 5.9 | ||||||||
| Compression Ratio | 17.3:1 | ||||||||
| Speed Governor | Electrical | ||||||||
| Cooling System | cooled by heat exchanger | ||||||||
| Total lubrication system capacity (L) | 70 | ||||||||
| Fuel Consumption at 100% Load (g/kw.h) | 215 | ||||||||
| Starting Method | DC24V electrical starting | ||||||||
| 3. Specification of alternator | |||||||||
| Alternator brand | Stamford | ||||||||
| Alternator model | UCI 274D | ||||||||
| Rated power | 90KW/113KVA | ||||||||
| Number of Phase | 3 | ||||||||
| Number of Bearing | 1 | ||||||||
| Protection Grade | IP22 | ||||||||
| Altitude | ≤1000m | ||||||||
| Exciter Type | Brushless ,Self-exciting | ||||||||
| Insulation Class | H | ||||||||
| Telephone Influence Factor (TIF) | ≤50 | ||||||||
| THF | ≤2% | ||||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||||
| Transient State Voltage | ≤-15%~+20% | ||||||||
Payment terms: 30% T/T as deposit, 70% balance be paid before shipment or
100% irrevocable L/C at sight
Delivery time: 5-25 days against deposit (according to specific project)
1. In manufacturing of power generators, TONTEK POWER is able to draw on an experience
of more than 10 years. Our total production capacity is about 40,000 units per year.
2. The power generator sets are designed for continuous power supply and have proved 10,000
fold around the world in various applications on every continent.
3. Except standard products, we also provide customized design service for you, design generator
sets as per your specific requirements.
4. We provide professional & in time service after sale.
Q1: How is your Warranty?
Warranty: All TONTEK POWER goods are warranted in accordance with our
warranty terms for a period of 12 months from date of dispatch or 1,000 running
hours from date of commissioning whichever comes earlier.
Q2: Any advantages about your company?
-- Fast delivery time
-- Good design and high quality
-- Good service after sale
-- High quality with good price help you get more benefit and beat your competitors
Q3: Can you supply OEM service?
Yes, we can offer OEM service
Q4: How about the service after sale?
We have agents spread all over the world, our service network spanning more
than 50 countries so we can ensure fast and good service for our clients. We are
recruiting agents, welcome you to be our friend and get a win-win cooperation .
