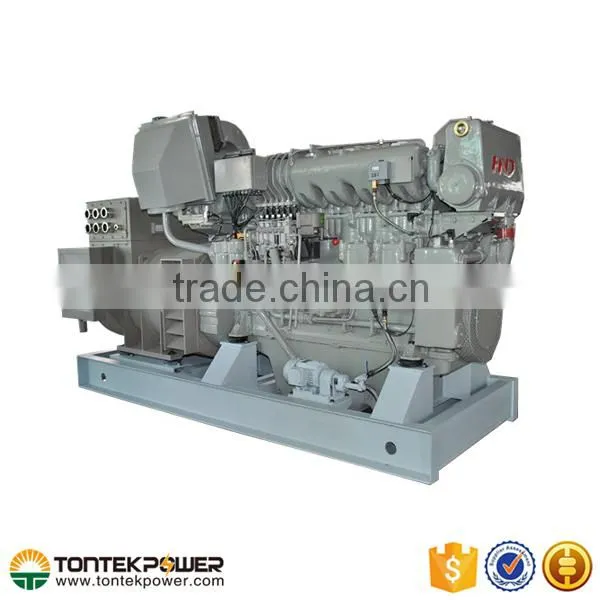

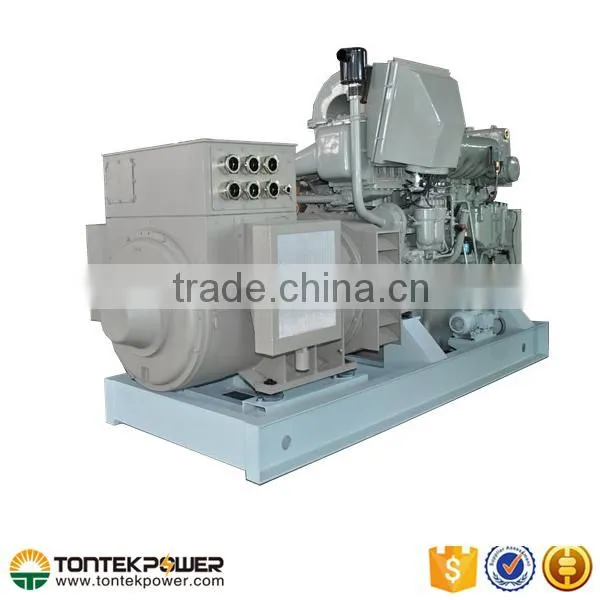

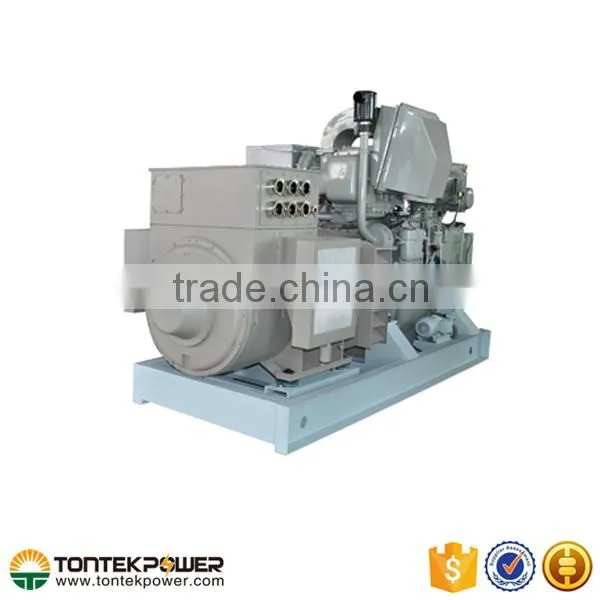

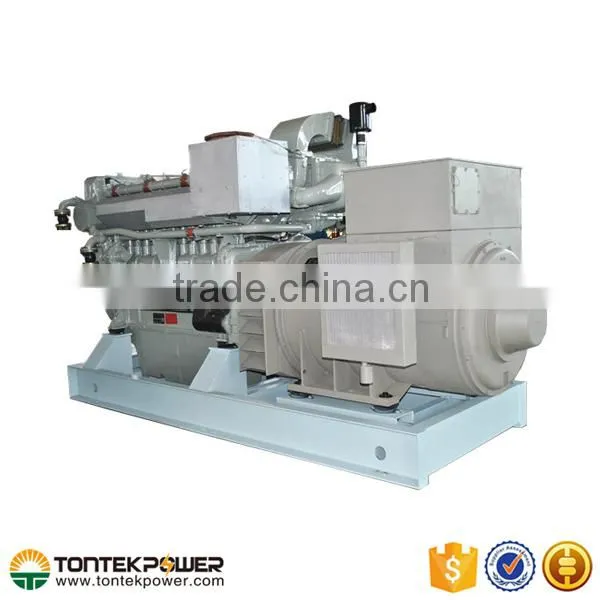

750kW Electrical Power 8Cylinders Marine Genset
US$ 66,000 - 74,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
TONTEK POWER
Model Number:
CCFJ750J-WTPH6
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Voltage Open Type 800kW Marine GeneratorUS$ 100,000 - 110,000MOQ: 1 Set -
700kW CCS/BV Certificate Electronic Power Marine GeneratorUS$ 97,500 - 108,000MOQ: 1 Set
-
High RPM 1000kW Marine Generator at 60HZUS$ 200,000 - 250,000MOQ: 1 Set
-
1100kW Four Stroke 12Cylinders Marine Generator Used for OffshoreUS$ 260,000 - 360,000MOQ: 1 Set
-
900kW Marine Genset Sales for Factory PriceUS$ 100,000 - 110,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
TONTEK POWER
Model Number
CCFJ750J-WTPH6
Output Type
AC Three Phase
Speed
1800RPM
Frequency
60HZ
Rated Power
750kW/937kVA
Rated Voltage
440
Rated Current
1350A
Product Attribute
750kW Electrical Power 8Cylinders Marine Genset
| 1. Specification of genset | |||||||||
| Gensets model | CCFJ750J-WTPH6 | ||||||||
| Prime power | 750KW/937KVA | ||||||||
| Rated Voltage(V) | 440 | ||||||||
| Rated frequency(HZ) | 60 | ||||||||
| Rated Speed(RPM) | 1800 | ||||||||
| Power Factor | 0.8(lagging) | ||||||||
| Dimensions(mm) (L×W×H) | 4200x1690x2270 | ||||||||
| Genset Weight(kg) | 7100 | ||||||||
| 2. Specification of diesel engine | |||||||||
| Engine model | TBD620V8 | ||||||||
| Output power | 1001kW/1251kVA | ||||||||
| Number of Cylinders | 8 | ||||||||
| Cylinder arrangement | –V type | ||||||||
| Cycle | Four stroke | ||||||||
| Aspiration | Aspiration | ||||||||
| Bore×Stroke (mm×mm) | 170x 195 | ||||||||
| Displacement (Liter) | 35.4 | ||||||||
| Compression Ratio | 14.0:1 | ||||||||
| Speed Governor | Electrical | ||||||||
| Cooling System | cooled by heat exchanger | ||||||||
| Total lubrication system capacity (L) | 7.5 | ||||||||
| Fuel Consumption at 100% Load (g/kw.h) | 197 | ||||||||
| Starting Method | DC24V electrical starting | ||||||||
| 3. Specification of alternator | |||||||||
| Alternator brand | Stamford | ||||||||
| Alternator model | LVI6D | ||||||||
| Rated power | 700KW/875KVA | ||||||||
| Number of Phase | 3 | ||||||||
| Connecting Type | 3 Phase and 4 Wires | ||||||||
| Number of Bearing | 1 | ||||||||
| Protection Grade | IP22 | ||||||||
| Altitude | ≤1000m | ||||||||
| Exciter Type | Brushless ,Self-exciting, | ||||||||
| Insulation Class | H | ||||||||
| Telephone Influence Factor (TIF) | ≤50 | ||||||||
| THF | ≤2% | ||||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||||
| Transient State Voltage | ≤-15%~+20% | ||||||||

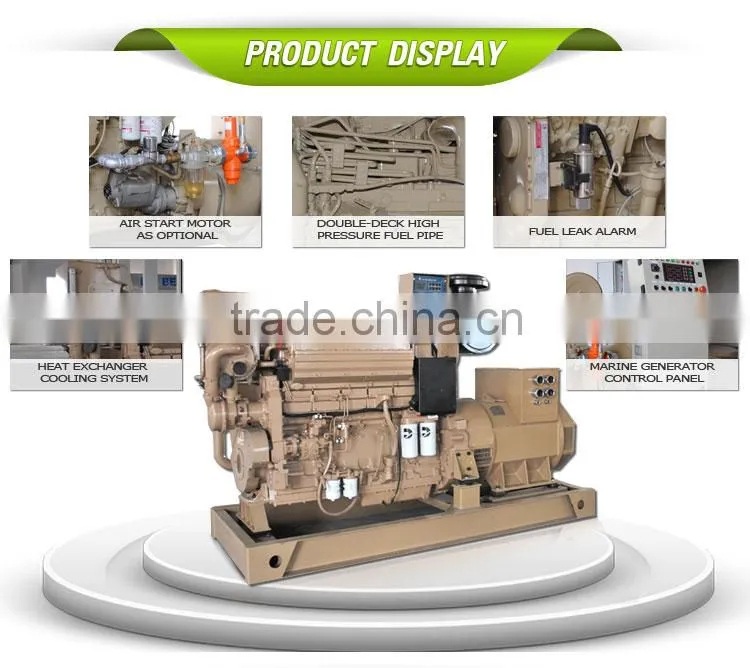

Product Description
Packaging & Shipping
Payment terms: 30% T/T as deposit, 70% balance be paid before shipment or
100% irrevocable L/C at sight
Delivery time: 5-25 days against deposit (according to specific project)
