Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 6 Cylinder High Rpm Industrial Diesel Genset With Electronic Governor

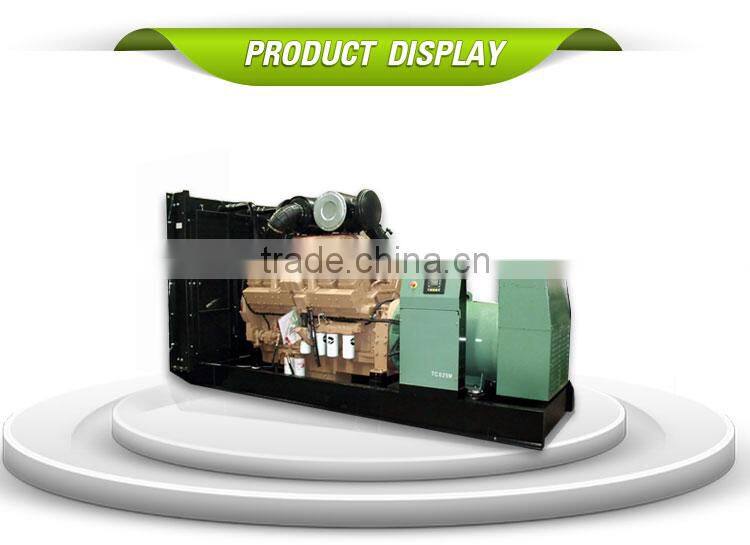

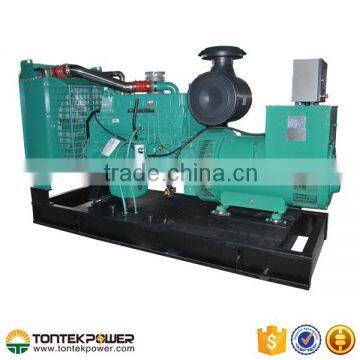

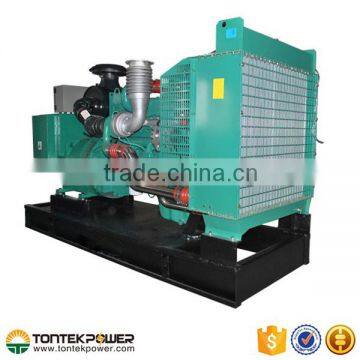

6 Cylinder High Rpm Industrial Diesel Genset With Electronic Governor
US$ 3,600 - 4,600
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
TONTEK POWER
Model Number:
TPD344C5
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
650kVA High Rpm Diesel Generating Set With Electronic GovernorUS$ 41,000 - 44,000MOQ: 1 Set -
6 Cylinder Engine Three Phase Diesel Generator 575kVAUS$ 42,800 - 47,200MOQ: 1 Set
-
30 kW Prime Power Electrical Starting Diesel Generating SetUS$ 4,600 - 4,900MOQ: 1 Set
-
12Cylinder Heavy Duty Diesel Engine GeneratorUS$ 68,400 - 77,500MOQ: 1 Set
-
800kVA Electric Start Diesel Engine Generator SetUS$ 71,000 - 74,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
TONTEK POWER
Model Number
TPD344C5
Output Type
AC Three Phase
Speed
1500rpm
Frequency
50HZ
Rated Power
275KW/344KVA
Rated Voltage
400/230V
Rated Current
495A
FAQ
| 6 Cylinder High rpm Industrial Diesel Genset with Electronic Governor | |||||||||
| 1. Specification of genset | |||||||||
| Gensets model | TPD344C5 | ||||||||
| Prime power | 275KW/344KVA | ||||||||
| Rated Voltage(V) | 400/230 | ||||||||
| Rated frequency(HZ) | 50 | ||||||||
| Rated Speed(RPM) | 1500 | ||||||||
| Power Factor | 0.8(lagging) | ||||||||
| Dimensions(mm) (L×W×H) | 2886x1010x1710 | Open type | |||||||
| Genset Weight(kg) | 3000 | ||||||||
| Dimensions(mm) (L×W×H) | 4300x2100x2300 | Silent type | |||||||
| Genset Weight(kg) | 5000 | ||||||||
| 2. Specification of diesel engine | |||||||||
| Engine model | NTA855-G2A | ||||||||
| Output power | 343kW/429kVA | ||||||||
| Number of Cylinders | 6 | ||||||||
| Cylinder arrangement | In-line | ||||||||
| Cycle | Four stroke | ||||||||
| Aspiration | Turbo, Water / Air Cooling | ||||||||
| Bore×Stroke (mm×mm) | 140 x 152 | ||||||||
| Displacement (Liter) | 14 | ||||||||
| Compression Ratio | 14.0:1 | ||||||||
| Speed Governor | Electronic | ||||||||
| Cooling System | Forced Water Cooling Cycle | ||||||||
| Total lubrication system capacity (L) | 38.6 | ||||||||
| Fuel Consumption at 100% Load (g/kw.h) | 193 | ||||||||
| Starting Method | DC24V electrical starting | ||||||||
| 3. Specification of alternator | |||||||||
| Alternator brand | Stamford | ||||||||
| Alternator model | HCI 4E | ||||||||
| Rated power | 275kW | ||||||||
| Number of Phase | 3 | ||||||||
| Connecting Type | 3 Phase and 4 Wires | ||||||||
| Number of Bearing | 1 | ||||||||
| Protection Grade | IP23 | ||||||||
| Altitude | ≤1000m | ||||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | ||||||||
| Insulation Class | H | ||||||||
| Telephone Influence Factor (TIF) | ≤50 | ||||||||
| THF | ≤2% | ||||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||||
| Transient State Voltage | ≤-15%~+20% | ||||||||

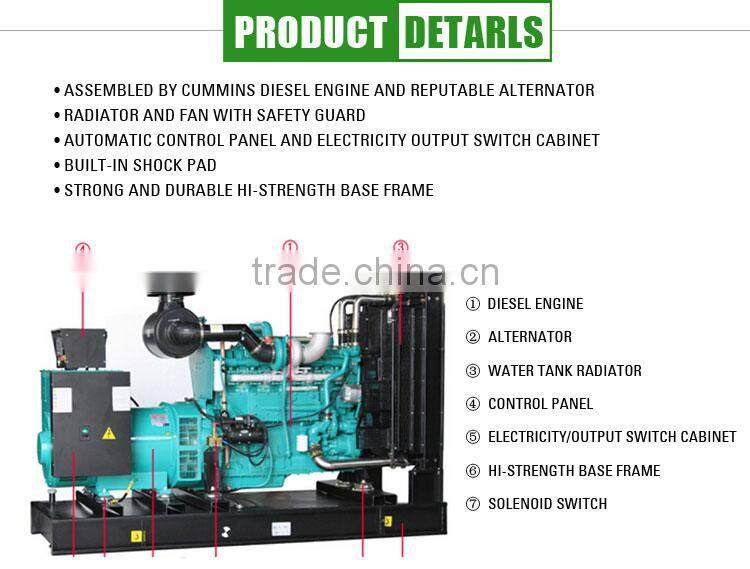

Product Description
Our Services
Packaging & Shipping
Payment terms: 30% T/T as deposit, 70% balance be paid before shipment or
100% irrevocable L/C at sight
Delivery time: 5-25 days against deposit (according to specific project)
100% irrevocable L/C at sight
Delivery time: 5-25 days against deposit (according to specific project)
