fiber optic cable welding Fibers Single-mode Single Armor Single Jacket Stranded Loose Tube Steel Wire Strength Waterproof Outdoor Cable - GYTA fiber optical cable
fiber optic cable comes in lots of types, depending on where it will be installed. Where to buy fiber optic cable? As the best OEM fiber optic cable manufacturer, Powerlink provides a wide range of quality optical fiber cables with detailed specifications displayed for your convenient selecting. Per foot price of each fiber cable is flexible depending on the quantities of your order, making your cost of large order unexpected lower. Customers can also have the flexibility to custom the cable plant to best fit their needs. Only fiber cable that meets or exceeds industry standards is used to ensure quality products with best-in-class performance.
GYTA
Features
- Fiber Count : 24 Fibers Strength Member Materials: Steel Wire
- Fiber Type: Singlemode G.652B (Default)
- Armor Layer: Aluminum tape
- Outer Sheath: PE (Default)
Des cription
- low dispersion and attenuation.
- Proper design, precise cotrol for fiber excess length and distinct stranding process render the cable excellent mechanincal and environmental characteristics
- Anti-electromagnetism ability.
- Samall cable diameter, light cable weight, self-supporting, easily to install.
- Good mechanical and temperature performance.
- High strength loose tube that is hydrolysis resistant.
- Tube filling compound to ensure a critical fiber protection.
- Special design to prevent loose tube shrinking.
- Crush resistance, water blocking and flexibility.
- PE sheath protects cable from ultraviolet radiation.
- Use the steel wire as the central strength member, 100% cable core filling and APL moisture barrier can ensure the cable watertight.
Technical characterision
Very strict material and manufacturing control guarantees the cable can work stably for more than 30 years.
Total cross-section water-resistant structure makes cable have excellent properties of moisture resistance
Special jelly filled in the loose tube provides the fibers with critical protection
Figure-8 self-supporting structure, high tension strength, facilitate in aerial, low installation costs
copper wires in the cable for electric communication.

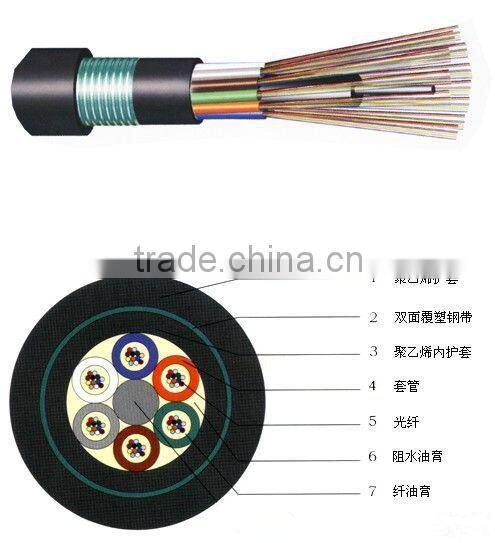

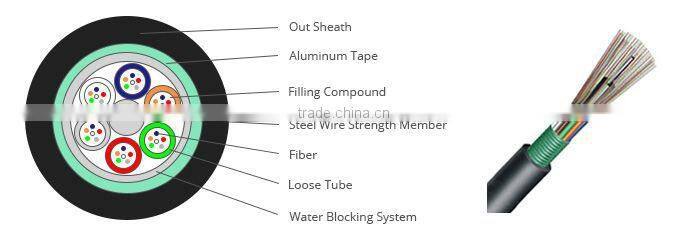

Cable Structure
Application
- Laying modes: Aerial & Conduit/Duct.
- Rural communication
- Local trunk line
- CATV
- Computer networks system
Color Code
No |
1 |
2 |
3 |
4 |
5 |
6 |
Color |
Blue |
Orange |
Green |
Brown |
Slate |
White |
No |
7 |
8 |
9 |
10 |
11 |
12 |
Color |
Red |
Black |
Yellow |
Violet |
Pink |
Aqua |
Technical Parameter
|
Fiber count
|
Cable dia.(mm) |
Cable net weight(Kg/km) |
Min. bending radius(mm) |
Min. tensile strength(N) |
Min. crush pressure(N/100mm) |
|||
Static state |
Dynamic state |
Short term |
Long term |
Short term |
Long term |
|||
2~36 |
11.6 |
144 |
120 |
240 |
3000 |
1000 |
1000 |
300 |
38~60 |
12.3 |
155 |
130 |
260 |
3000 |
1000 |
1000 |
300 |
62~72 |
13.1 |
190 |
140 |
280 |
3000 |
1000 |
1000 |
300 |
74~84 |
13.9 |
208 |
140 |
280 |
3000 |
1000 |
1000 |
300 |
86~96 |
14.7 |
228 |
150 |
300 |
3000 |
1000 |
1000 |
300 |
98~108 |
15.5 |
247 |
160 |
320 |
3000 |
1000 |
1000 |
300 |
110~120 |
16.3 |
268 |
170 |
340 |
3000 |
1000 |
1000 |
300 |
122~132 |
17.1 |
290 |
180 |
360 |
3000 |
1000 |
1000 |
300 |
134~144 |
17.9 |
313 |
180 |
360 |
3000 |
1000 |
1000 |
300 |
Messenger |
Diameter: 5.1 mm, Weight: 86 kg/km |
|||||||
Connecting part |
Dimension :3.5×2.6 mm, Weight: 9 kg/km |
|||||||

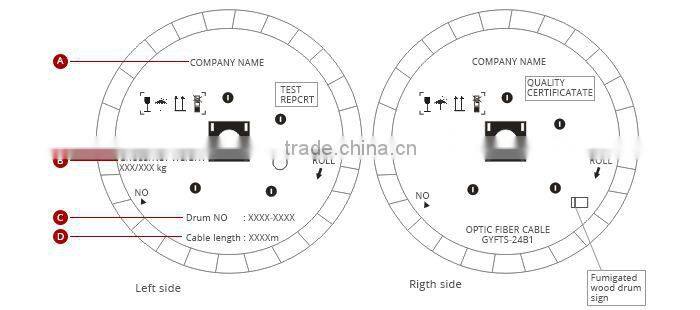

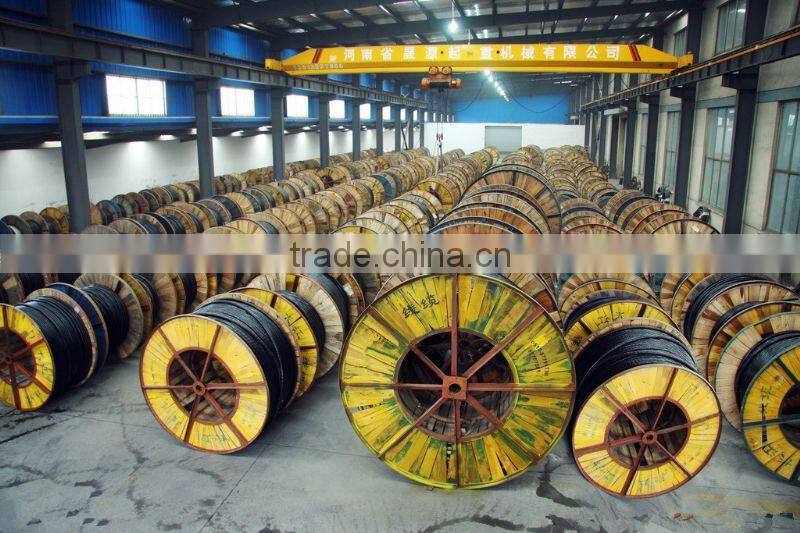

Package
