Help CenterSingle Union Ball Check Valve
US$ 7 - 1,000
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
High Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic Pipe Union 4"US$ 0.1 - 100MOQ: 100 Pieces -
Plastic UNION CPVC 1/2"US$ 0.1 - 100MOQ: 100 Pieces
-
Plastic Butterfly Valve With Lever Handle TypeUS$ 40 - 100,000MOQ: 100 Pieces
-
Plastic Butterfly Valve - Universal TypeUS$ 45 - 310MOQ: 100 Pieces
-
Plastic Swing Check ValveUS$ 100 - 20,000MOQ: 100 Pieces
Standard or Nonstandard
Standard
Structure
Ball
Pressure
High Pressure
Power
Hydraulic
Material
Other, PVC/CPVC/PP/PVDF, UPVC CPVC PP PVDF
Temperature of Media
High Temperature
Media
Other, Oil, Gas, Acid, Water
Port Size
1/2"~10"
Place of Origin
Jiangsu, China
Model Number
JB100/JB200/JB300
Brand Name
SH
Specifications
Plastic Single Union Ball Check Valve1.Material:PVC/PP/CPVC/PVDF
2.Complete Product Range
3.Competitive price
4.ISO&NSF
SHIE YU Professional in PIPE&FITTINGS AND DIAPHRAGM VALVE&BUTTERFLY VALVE&BALL VALVE&CHECK VALVE
SHIE YU Milestones
-1973, Shieyu Group is established in Taichung
-1994, first company in Taiwan gained NSF listing
-1997, obtained ISO9001
-1999, established Kaohsiung facility to produce fittings and pipes
-2002, established manufacturing facility in China
-2008, China facility obtained NSF listing for CPVC CTS fittings.
-2012, Group annual turnover rate is 100 million USD.
-2013.05, Celebrated 40thanniverysary
-2013.08, China facility obtained NSF listing for UPVC SCH80 pipes and fittings
-2013.12, Set up second facility in Kunshan specializing in PPH/PVDF/ECTFE/HDPE products under the brand ASIAN VALVE.
Company introduction:
1.We have own factoty for over 40 years with good quality and Service.
2.Good Quality: Implement NSF and ISO quality system on all products.
3.Good reputation in Southeast Asian,Middle east, South America market.
4.We have complete product ranges.
UPVC 1/2“~24”
CPVC 1/2”~24”
PPH 12 ~1200mm
HDPE 12 ~1200mm
PVDF 12 ~630 mm
ABS 12 ~630 mm
Standards: DIN, Sch80, Sch40, JIS, BS, or other assigned standards
5.Flexible lead time.
Product Name:Plastic Single Union Ball Check Valve
Description:
| 1.Materials: | UPVC/CPVC/PP/PVDF |
| 2.Size Available: | 1/2"(DN15)~10"(DN250) |
| 3.Standard: | ANSI, DIN , JIS |
| 4.Connector: | SOCKET JB100/THREAD JB200/FLANGED JB300 |
| 5.Seat Carrier O-Ring: | EPDM/VITON |
| 6.Brand: | SH |
| 7.Color: | Gray/cream-coloured/white |
| 8.MOQ: | 50~100Pieces |
| 9.Production Capatity: | 400Pieces per Month |
| 10.Product Tests: | 100% Tested |
| 11.Certification Available: | NSF/ISO |

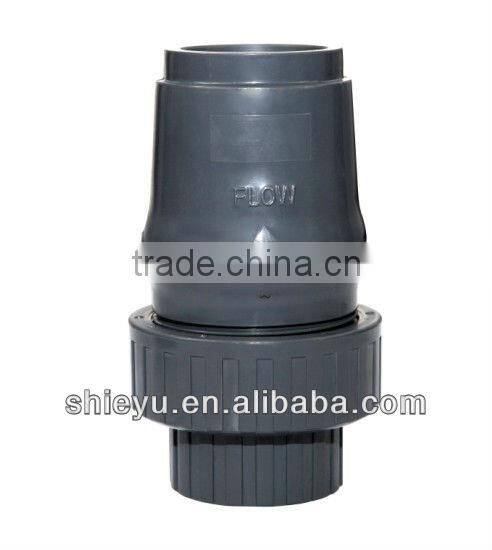

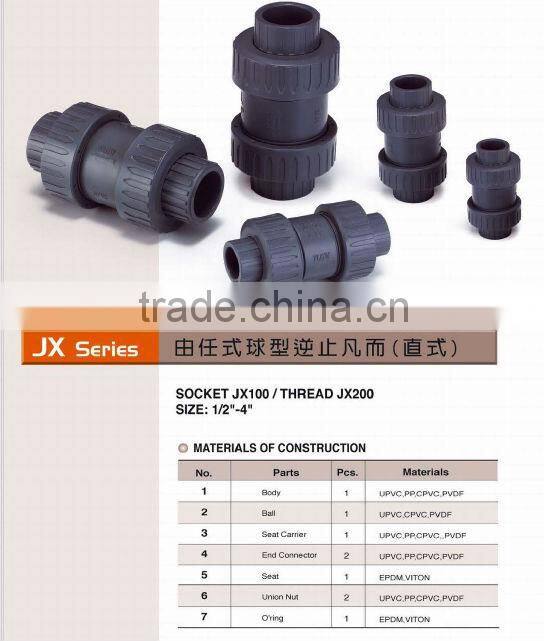

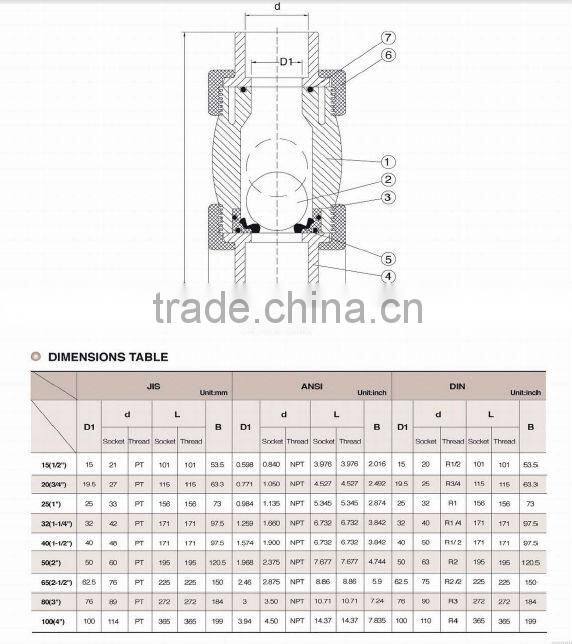

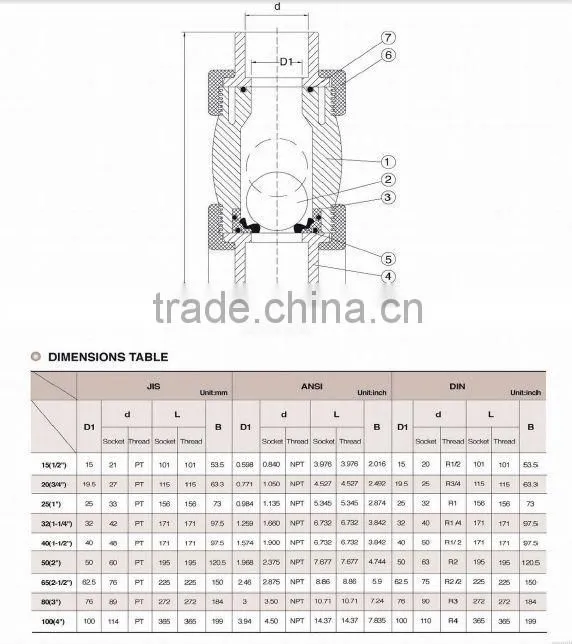

Products Picture:
Valve Tests:
1.Measure the diameters
2.Inner diameters
3.Outer diameters
4.Wall thickness
5.100% pressure testing
6.Inject air into valves then place them in the water to check for leakages
7.If there’s leakage, bubbles will appear
ALL VALVES ARE 100% TESTED
ISO Certificate:
NSF certificate:
