JIS UNION 16A CPVC
- 3000 Piece / Pieces per Month
- Shanghai Ningbo
- T/T Credit Card
Product Details
Standard or Nonstandard: | Standard | Structure: | Ball | Pressure: | High Pressure |
Power: | Hydraulic | Material: | Other, CPVC | Temperature of Media: | High Temperature |
Media: | Other, Oil, Gas, Acid, Water | Port Size: | 1/2"~4" | Place of Origin: | Jiangsu, China |
Model Number: | EU100/EU200 | Brand Name: | DFP |
Product Description
SHIE YU Professional in UPVC, CPVC, HDPE, PPH, PVDF PIPE&FITTINGS
SHIE YU Milestones
-1973, Shieyu Group is established in Taichung
1.We have own factoty for over 40 years with good quality and Service.
2.Good Quality: Implement NSF and ISO quality system on all products.
3.Good reputation in Southeast Asian,Middle east, South America market.
4.We have complete product ranges.
UPVC 1/2“~24”
CPVC 1/2”~24”
PPH 12 ~1200mm
HDPE 12 ~1200mm
PVDF 12 ~630 mm
ABS 12 ~630 mm
Standards: DIN, Sch80, Sch40, JIS, BS, or other assigned standards
5.Flexible lead time

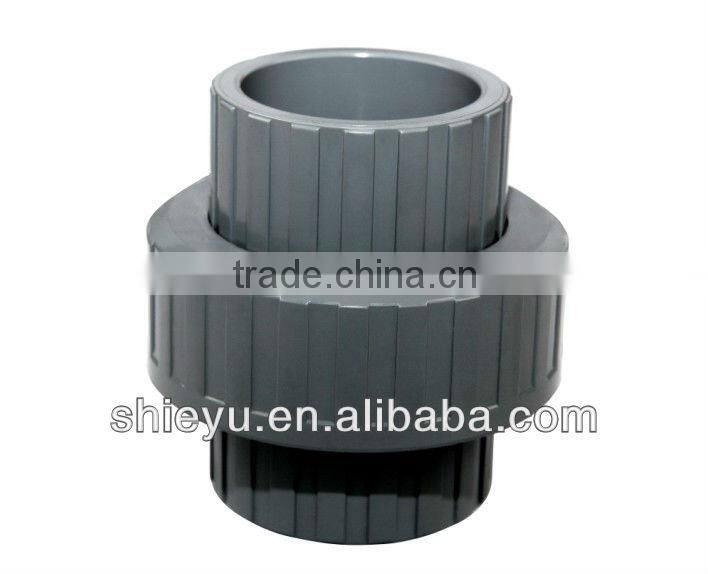

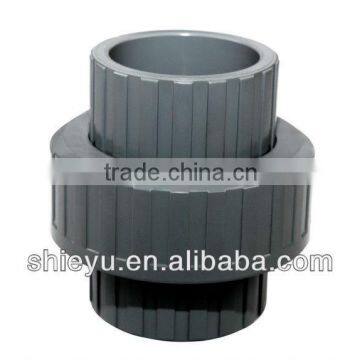

Product Name:Plastic CPVC UNION
Description:
1.Materials: | CPVC |
2.Size Available: | 1/2"(DN15)~4"(DN100) |
3.Standard: | ANSI, DIN , JIS |
4.Connector: | EU100:SOCKET/EU200:THREAD |
5.Seat Carrier O-Ring: | EPDM/VITON |
6.Brand: | SH |
7.Color: | Gray |
8.MOQ: | 50~100Pieces |
9.Production Capatity: | 3000Pieces per Month |
10.Product Tests: | 100% Tested |
11.Certification Available: | NSF/ISO |

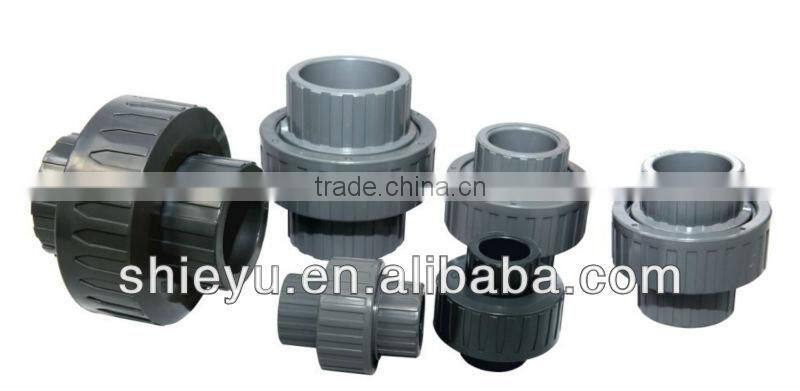

Products Picture:
Material Overview:
Material: Chlorinated Polyvinyl Chloride
Symbol: CPVC
Chemical Compatibility: Withstand low to high levels of chemical corrosions
such as most acids,alkalis,and salt solutions and great
thermal resistance
Max.Temperature Rate: CPVC 95°C ~ 110°C
Product Advantages:
1,Non-toxic, ageless, compatible in PH solutions, abrasion-resistant, non-deforming, smooth inner surface, no scaling, less dirt, thermal retention, cold weld, hassle-free installation.
2,Longer performance life, easy and quick maintenance
3,Easy handling, lower installation costs
Typical Application:
CPVC: Under certain pressure water application of industrial solid,liquid,and gas chemicals:
l Oil
l Chemical processes
l Electronics
l Gold
l Papermaking
l Processed foods and beverages
l Pharmaceutical operations
l Industrical plating
l Seawater treatments
l Hot spring water distribution
