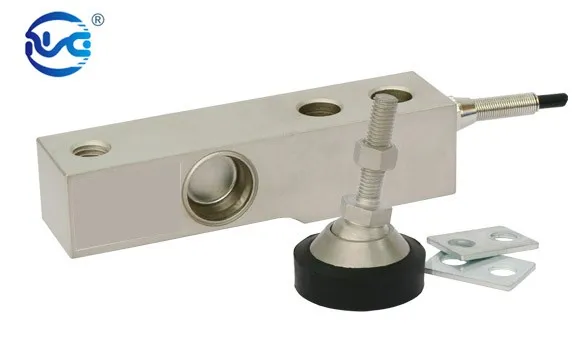

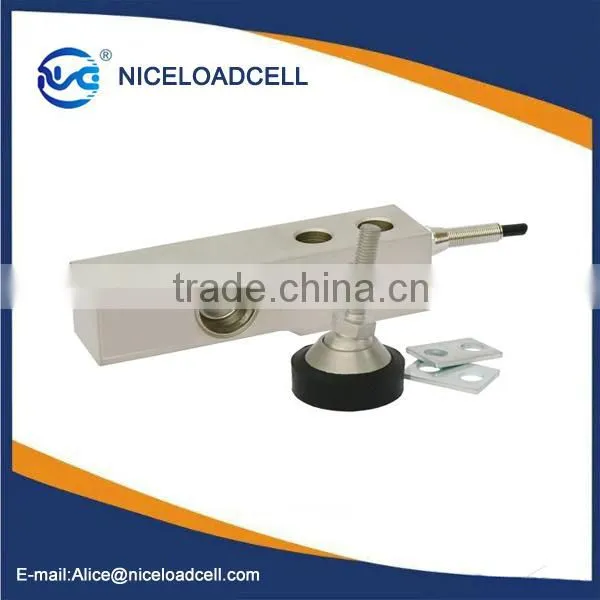

5T Stainless Steel Shear Beam Load Cells

5T Stainless Steel Shear Beam Load Cells thumbnail-1
5T Stainless Steel Shear Beam Load Cells photo-1
US$ 5 - 10 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
CZS
Model Number:
CZS802
Contact Supplier Request Quote Chat Now
Changsha Naisi Electronic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name CZS
Model Number CZS802
Usage Pressure Sensor
Theory Resistance Sensor
Output Analog Sensor
Load Cell

Rated load:500kg～20000kg
Main features:Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and other electronic weighing devies.

Parameters:Rated load:500kg～5000kg
Main features:Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and other electronic weighing devies.

Parameters:
Precison : C2 & C3
Temp. effect on span(%F.S/10℃): ±0.017& ±0.011
Comprehensive error(%F.S) : ±0.03 & ±0.02
Temp. effect on zero(%F.S/10℃): ±0.023 & ±0.015
Rated output(mv/v) : 3.0±0.003
Compensated temp. range(℃ ) : -10～+40
Creep(%F.S/30min) : ±0.024 & ±0.016
Use temp. range(℃ ) : -20～+55
Zero balance(%F.S) : ±1.0
Excitation voltage(V) : 9～12(DC)
Input resistance(Ω) : 350±5
Safe overload (%F.S) : 150
Output resistance(Ω) : 350±3
Ultimate overload (%F.S) : 200
Insulation resistance(MΩ) : ≥5000(100VDC)
Defend grade : IP66





Wiring schematic diagram:

Red: Input ( ＋ ) 111 White: Output ( － )

Black: Input ( － ) 111 Green: Output ( ＋ )

Related Products

 Models:CZS803Y 500KG-2000KG

 Precision:C2
 Rated Output:2.0±0.03MV/V
 Cable:Use 4-Core shielded cable,5X3000MM






Our Company

Certifications
Packing & Delivery
FAQ

Can i get a samples?

Yes,When we are in storage ,will be sending 1-5pcs by free but the shipping cost is by client!

Accept special design?

Yes,we can be accept any special customized

How long for delivery days?

Samples:1-10DAYS

Big Quantity(10K-50K):30-45days

Did you have of gurantee  period?

Yes,Within 1year the goods have any problems that you could be return to me revise it but freight cost is by customer

We have a best price and high precision.Welcome to your inquiry!
