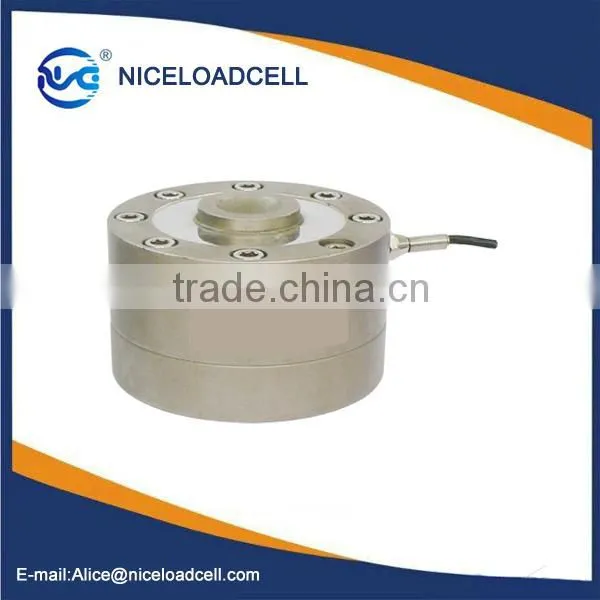

Help CenterElectric Spoke Round Style Prices of Load Cell 50t 100t
Related Products
-
Little Spoke and Round Style Load Cell 0.1tUS$ 90 - 150MOQ: 1 Piece -
Stainless Steel Single Shear Beam Load Cell for Weighing ScaleUS$ 5 - 10MOQ: 10 Pieces
-
Single Shear Beam Load CellUS$ 35 - 40MOQ: 10 Sets
-
Single Shear Beam Load CellUS$ 50 - 60MOQ: 10 Sets
-
Single Shear Beam Load CellUS$ 35 - 40MOQ: 10 Sets
Parameters:
Precison : C1
Temp. effect on span(%F.S/10℃): ±0.03
Comprehensive error(%F.S) : ±0.05
Temp. effect on zero(%F.S/10℃): ±0.05
Rated output(mv/v) : 2.0±0.002
Compensated temp. range(℃ ) : -10～+40
Creep(%F.S/30min) : ±0.03
Use temp. range(℃ ) : -20～+55
Zero balance(%F.S) : ±1.0
Excitation voltage(V) : 9～12(DC)
Input resistance(Ω) : 700±10
Safe overload (%F.S) : 120
Output resistance(Ω) : 700±5
Ultimate overload (%F.S) : 150
Insulation resistance(MΩ) : ≥5000(100VDC)
Defend grade : IP66 & IP68
Wiring schematic diagram:
Red: Input ( ＋ ) 111 White: Output ( － )
Black: Input ( － ) 111 Green: Output ( ＋ )
Notes：It used 4-core shielded cable(φ5×3000mm)
CZS203
Can i get a samples?
Yes,When we are in storage ,will be sending 1-5pcs by free but the shipping cost is by client!
Accept special design?
Yes,we can be accept any special customized
How long for delivery days?
Samples:1-10DAYS
Big Quantity(10K-50K):30-45days
Did you have of gurantee period?
Yes,Within 1year the goods have any problems that you could be return to me revise it but freight cost is by customer
We have a best price and high precision.Welcome to your inquiry!
