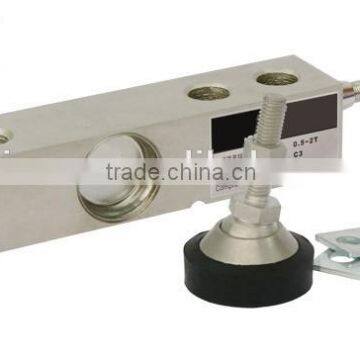

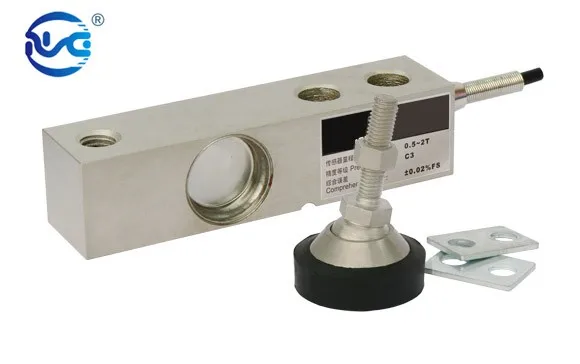

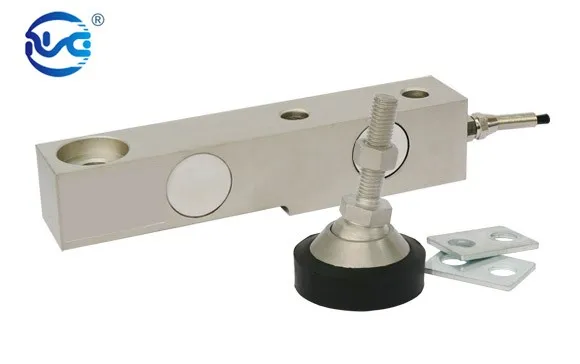

Big Capacity 10T Single Shear Beam Load Cell Lower Price
US$ 5 - 10
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
CZS
Model Number:
CZS803KA
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2000kg Load Cell Stainless Steel Single Shear Beam Load CellUS$ 5 - 10MOQ: 10 Pieces -
Alloy Steel and Stainless Steel Structure Sher Beam Load CellNegotiableMOQ: 1
-
Resistance Sensor With Single Shear Beam Load CellUS$ 5 - 10MOQ: 10 Pieces
-
Single Shear Beam Load Cell With Materil Alloy Steel Stainless StructureUS$ 5 - 10MOQ: 10 Pieces
-
500kg Stainless Steel Shear Beam Load CellUS$ 5 - 10MOQ: 10 Pieces
Place of Origin
Hunan, China
Brand Name
CZS
Model Number
CZS803KA
Usage
Pressure Sensor
Theory
Resistance Sensor
Output
Analog Sensor
Load Cell
Rated load:500kg～10000kg
Main features:Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and other electronic weighing devies.
Parameters:
Precison : C2
Temp. effect on span(%F.S/10℃): ±0.017
Comprehensive error(%F.S) : ±0.03
Temp. effect on zero(%F.S/10℃) : ±0.023
Rated output(mv/v) : 2.0±0.003
Compensated temp. range(℃ ) : -10～+40
Creep(%F.S/30min) : ±0.024
Use temp. range(℃ ) : -20～+55
Zero balance(%F.S) : ±1.0
Excitation voltage(V) : 9～12(DC)
Input resistance(Ω) : 350±5
Safe overload (%F.S) : 150
Output resistance(Ω) : 350±3
Ultimate overload (%F.S) : 200
Insulation resistance(MΩ) : ≥5000(100VDC)
Defend grade : IP66
