1Mpa Strain Gage Force Sensor

1Mpa Strain Gage Force Sensor thumbnail-1
1Mpa Strain Gage Force Sensor photo-1
US$ 50 - 55 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CZS
Model Number:
CZS502
Contact Supplier Request Quote Chat Now
Changsha Naisi Electronic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CZS
Model Number CZS502

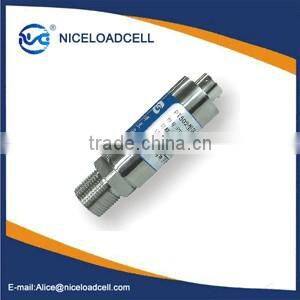

1Mpa Strain gage force sensor



Connectors type



ABSTRACT:

    Applying to pressure measuring and controlling of industrial facility, Irrigation, Chemical industry, Medical, Electric power, air condition.
    Diamond press machine, metallurgy, water supply to building and so on.







 1Mpa Strain gage force sensor



PARAMETERS:
Capacity Range 0-10-100MPa
Comprehensive Precision  0.1%FS , 0.2%FS, 0.3%FS, 0.5%FS, 1.0%FS
Output Signal 4~20mA; 0~5V; 1~5V; 0~10V
Use Temp Range -10℃~+80℃- 150℃
Electric Connectio 4-core plug or take-up nut
Excitation Voltage 9~36V, if output =4~20mA or 0~5V or1~5V; 15~36V, if outpur= 0~10V
Stability 0.1%F.S/year
Burden Resistance Current output: ≤800Ω,Voltage output :≥50KΩ
Insulation Resistance ≥2000MΩ,100VDC
Effection of Vibration On 20HZ-1KHZ of mechanical shake, output ≤ 0.1%F.S
Defend Grade  IP68



EXAMPLE: PT501 - 1M - 01 - C - 1 - I - CW - ZC1

PT5

01

1M

01

C

1

I

CW

ZC1



01

Models

1

Capacity(Noted by number)

M

Pressure Mearsure( K=KPa, B=Bar, M=MPa,H=mH2O )

01

Output Signal
( 01=4~20mA, 02=0~5V, 03=1~5V, 04=0~10V )

C

Precision (%FS)(A=0.1, B=0.2, C=0.3, D=0.5)

1

Pressure Typ:
(1=Gauge Pressure 2 =Combination Pressure

I

Thread Connection:
(I=M22×1.5 J=M20×1.5 L=M18×1.5 P=M16×1.5 M=M14×1.5 N=G1/4-19 Q=1/2-20 F=M12×1 R=1/4NPT S=1/2NPT T=1/8NPT U=7/16-20)

CW

Temp. Of Medium(℃)
( CW=-10~80,CG=-20~125,GW=-30~150)

FS5

Electric Connection
( ZC=M22×1.5 airproof port DI=Hirsmann Connector
HK= 4-pin navigate plug FS=Waterproof&anticorrosion Cable)







Factory

1Mpa Strain gage force sensor1Mpa Strain gage force sensor

 1Mpa Strain gage force sensor



1Mpa Strain gage force sensor



1Mpa Strain gage force sensor1Mpa Strain gage force sensor1Mpa Strain gage force sensor1Mpa Strain gage force sensor1Mpa Strain gage force sensor
