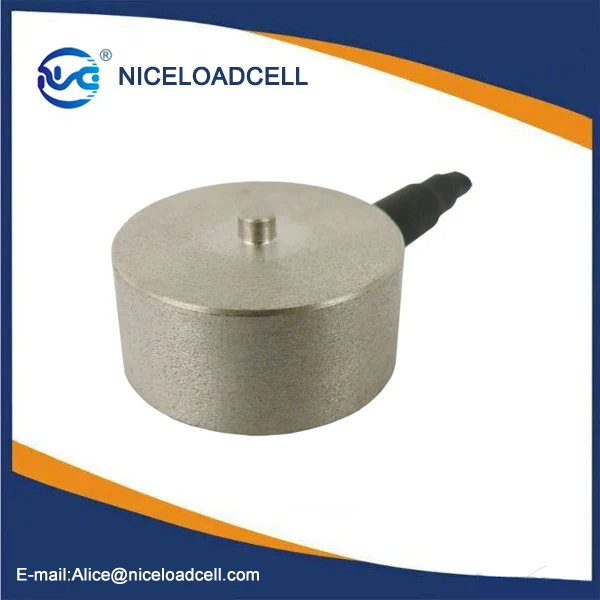

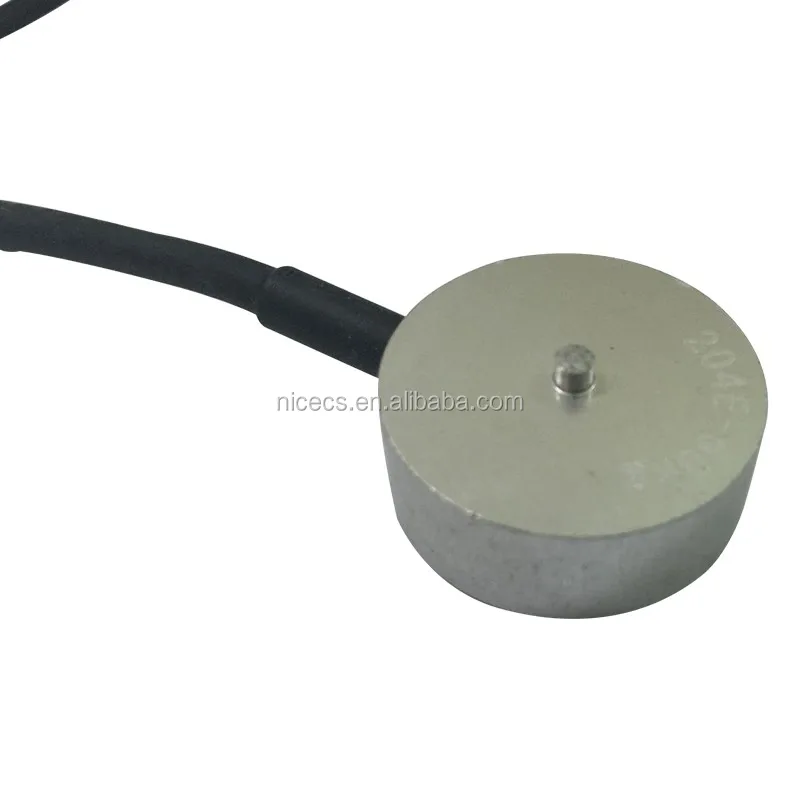

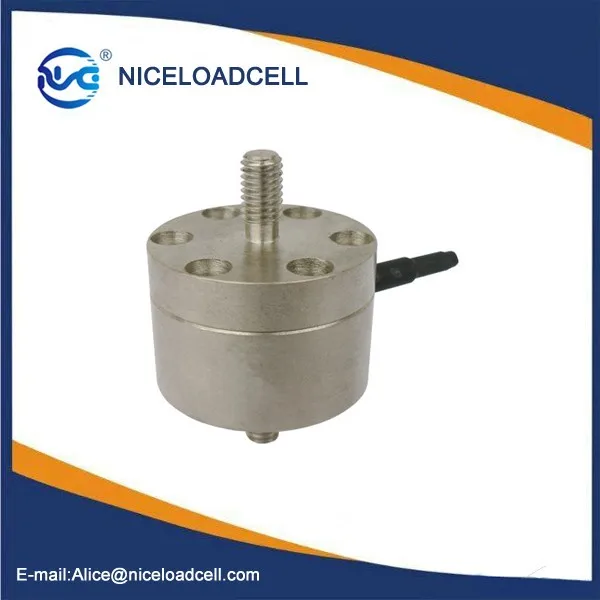

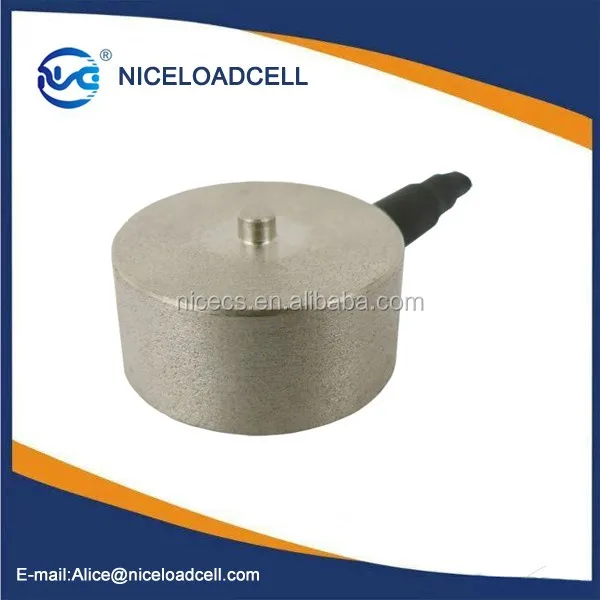

Chinese Lower Price of 5KG to 500kg Micro Alloy Steel Load Cells

Chinese Lower Price of 5KG to 500kg Micro Alloy Steel Load Cells thumbnail-1
Chinese Lower Price of 5KG to 500kg Micro Alloy Steel Load Cells thumbnail-2
Chinese Lower Price of 5KG to 500kg Micro Alloy Steel Load Cells thumbnail-3
Chinese Lower Price of 5KG to 500kg Micro Alloy Steel Load Cells photo-1

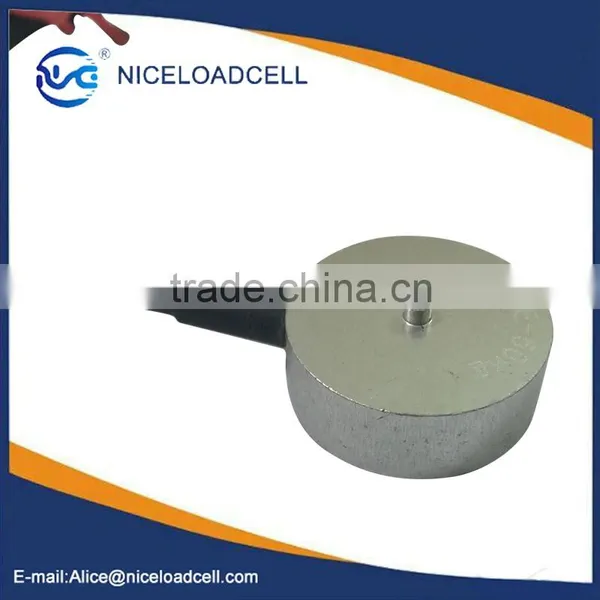

Chinese Lower Price of 5KG to 500kg Micro Alloy Steel Load Cells photo-2

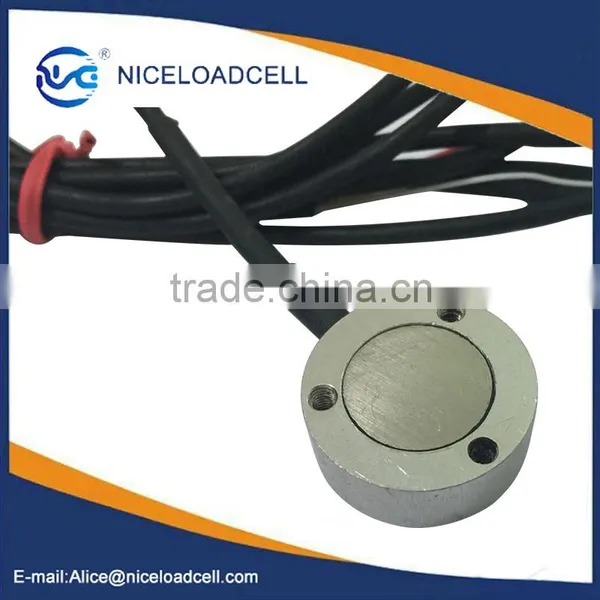

Chinese Lower Price of 5KG to 500kg Micro Alloy Steel Load Cells photo-3
US$ 2 - 3 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CZS
Model Number:
czs204e
Contact Supplier Request Quote Chat Now
Changsha Naisi Electronic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CZS
Model Number czs204e
Usage Pressure Sensor
Theory Resistance Sensor
Output Analog Sensor
Product Description


Main features:Alloy steel & stainless structure;
bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments;
 suitable for electronic platform scales, hopper scales, and other electronic weighing devies.


.

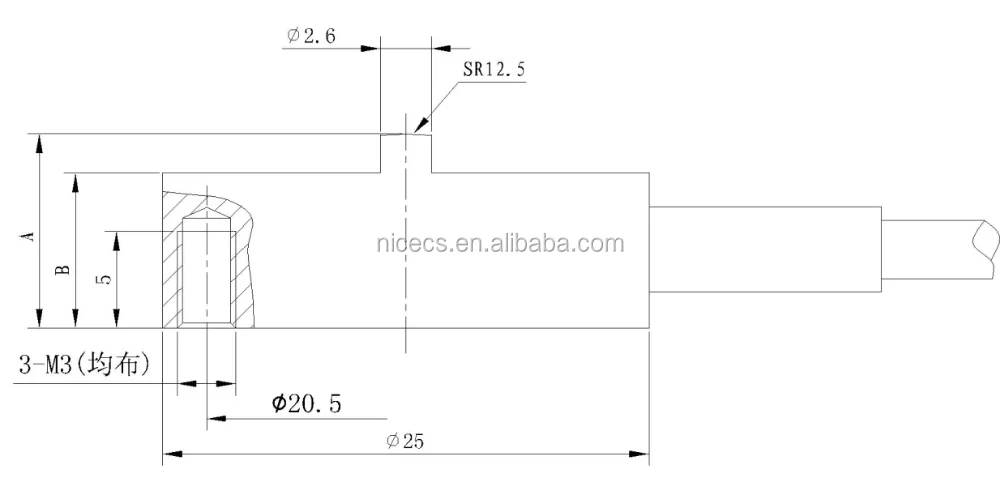

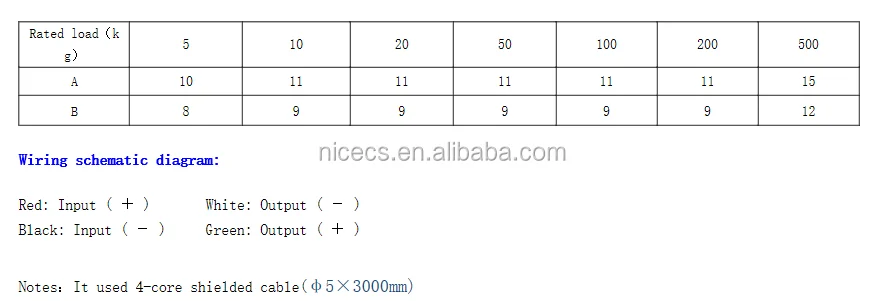

Dimension Size



Parameters:
Precison : G2
Temp. effect on span(%F.S/10℃): ±0.05        Comprehensive error(%F.S) : ±0.2
Temp. effect on zero(%F.S/10℃): ±0.05         Rated output(mv/v) : 2.0±0.04
Compensated temp. range(℃ ) : -10～+40     Creep(%F.S/30min) : ±0.02
Use temp. range(℃ ) : -35～+65                       Zero balance(%F.S) : ±1.0

Excitation voltage(V) : 9～12(DC)                     Input resistance(Ω) : 700±10
Safe overload (%F.S) : 120                                  Output resistance(Ω) : 700±5
Ultimate overload (%F.S) : 150                           Insulation resistance(MΩ) : ≥5000(100VDC)
Defend grade : IP68


Round type Load Cells apply to :mulitiform environments,force control in production process,vibratory feeding equipment and other electrnoic weighing devices
