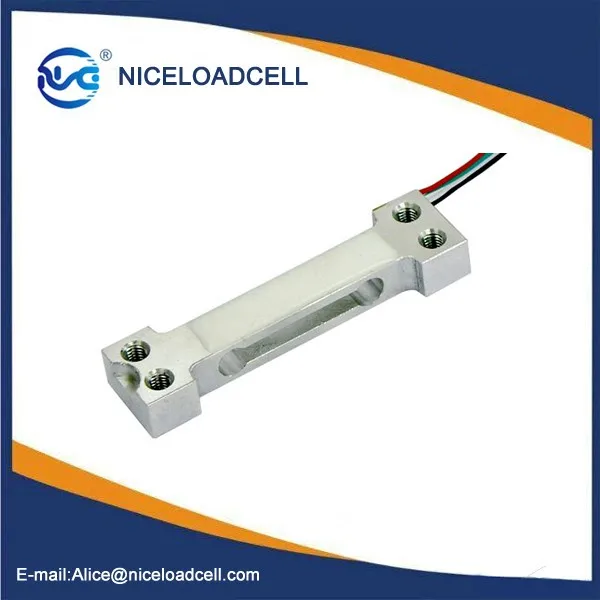

100g 200G 300g 500G 750g 2000g load celll Jewelry palm micro load cell

FOB Price

USD $3 - $4 / Set

10 Sets(Min.Order)

Product Description

Feature

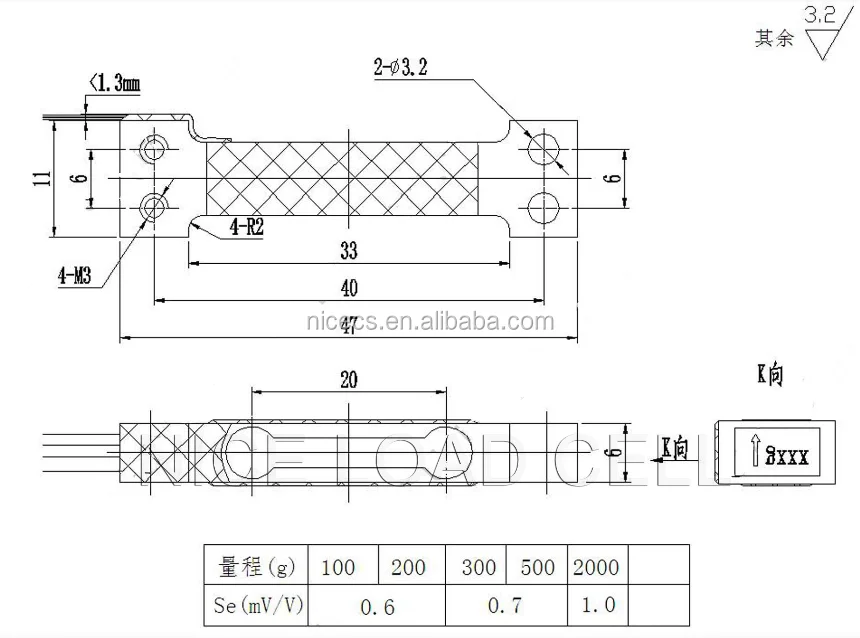

Demension Size47x16x6MM

Rated Output:07+/01.5mv/v

Materil:Aluminium Alloy

Micro load cells full bridge type

Capacity:100g 200g 300g 500g 750g 2000g load cells

Cable:0.6X110mm

Specifications
Zero Balance	±0.1mV/V
Conner Errpr	±0.1%FS
linearity	±0.05%F.S
Hysteresis	±0.05%F.S
Repeatability	±0.05%F.S
Creep	±0.05%F.S(3MIN)
Input Resistance	1000±10 ohm
Output Resistance	1000±10 ohm
Temperature Range for Using	-10--+60 deg C
Temperature Effect on Zero	±0.5%F.S/10 deg C
Temperature Effect on Sensitivity	±0.5%F.S/10 deg C
Insulation Resistance	2000Mohm
Excitation Voltage	3-10VDC
Ultimate Overload	150%
Accuracy	0.05%F.S
