Kitchen Scales Mini Small Micro Load Cell 2kg 10kg 20kg

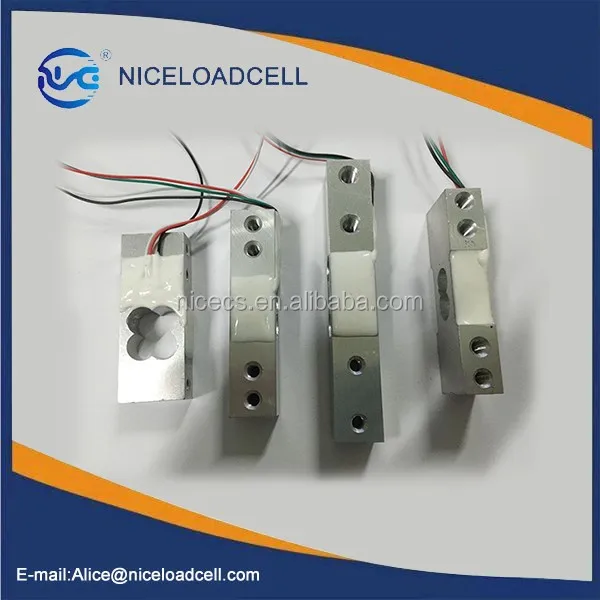

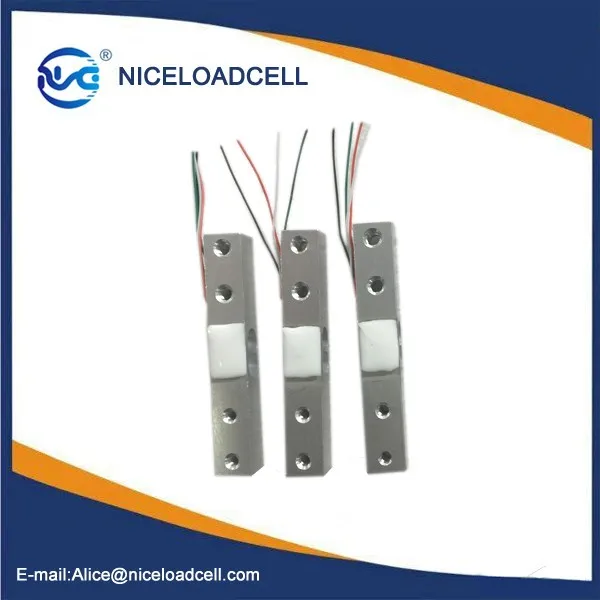

Kitchen Scales Mini Small Micro Load Cell 2kg 10kg 20kg photo-1

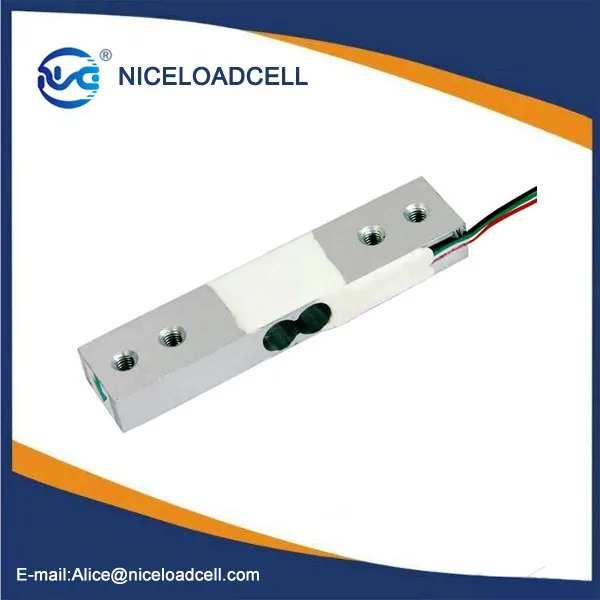

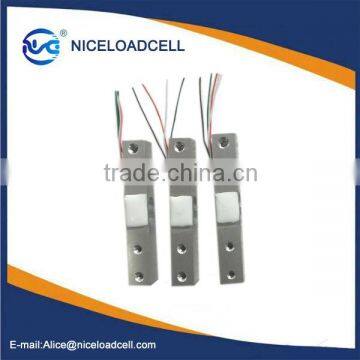

Kitchen Scales Mini Small Micro Load Cell 2kg 10kg 20kg photo-2

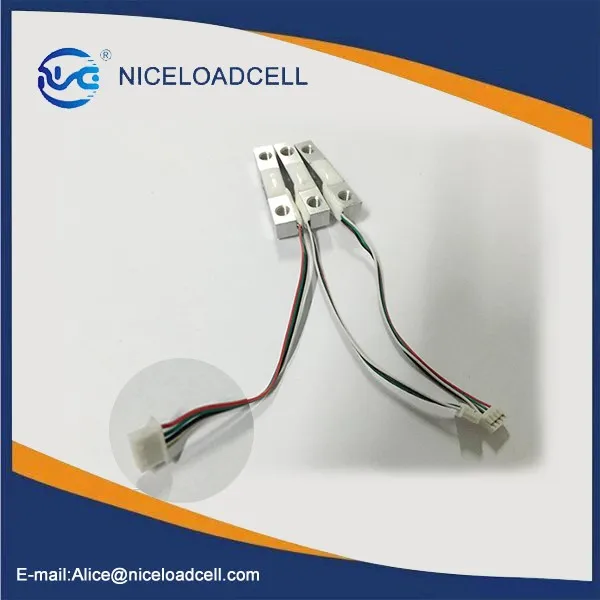

Kitchen Scales Mini Small Micro Load Cell 2kg 10kg 20kg photo-3
US$ 1 - 2 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
CZS
Model Number:
CZS611CD
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hunan, China
Brand Name CZS
Model Number CZS611CD
Usage Position Sensor
Theory Resistance Sensor
Output Analog Sensor
Product Description

Feacture:
Capacity:CZS611CD 2-20kg
Materil:Aluminmum alloy
Dimension Size:58X12.7X12.7MM
Cable:0.8X200MM
Rated Output: 1.0+/-0.15mV/V
Kitchen scales,postal scales.fishing scales,Jewelry scales,other micro weighing equipment

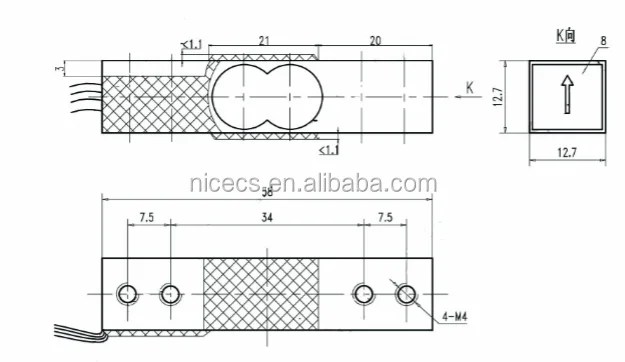

Dimension Size:


Specifications:

1:Capacity:2-20kg

2. Nonlinearity: +/-0.05%F.S
3. Reapitability: +/-0.05%F.S
4. Hysteresis: +/-0.05%F.S
5. Creep: +/-0.1%F.S(3min)
6. Zero Balance: +/-0.1mV/V
7. Input Resistance: 1050+/-100 ohm
8. Output Resistance: 1000+/-10 ohm
9. Insulation Resistance: ≥2000Mohm
10. Temperature Effect on Zero: +/-0.1%F.S/10 deg C
11. Temperature Effect on Sensitivity: +/-0.05%F.S/10 deg C
12. Four-Angle Error: +/-0.05%F.S
13. Overload: 150%
14. Wires: Energize+(red),

                  Energize-(black),

                  Signal+(green),

                  Signal-(white)
15. Excitation Voltage: 3~10VDC

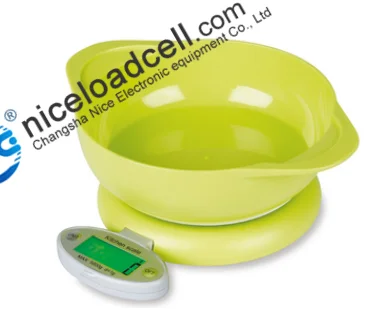

Micro load cells suitable for :


     Apply to Kitchen scales, postal scales, fishing scale




Kitchen scales, postal scales, fishing scale


Related Products

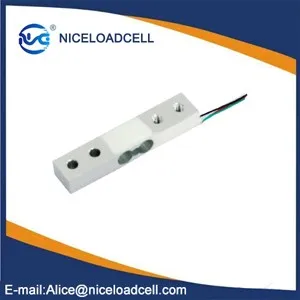

Micro load cell
czS616C Capacity 300-750g
Dimensions Size:45x9.3x6mm
Comprehensive error:0.05%FS
Rate Output:0.7+/-0.15MV/V

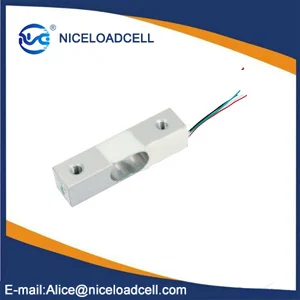

 Micro load cell

czS616CD Capacity 2-20KG

DimensionsSize:58x12.7x12.7mm
Comprehensive error:0.05%FS
Rate Output:1.0+/-0.15MV/V


             Micro load cell
czS635 Capacity 1-50KG

Dimensions Size:55X12.7X12.7MM
Comprehensive error:0.05%FS
Rate Output:1.0+/-0.15MV/V
