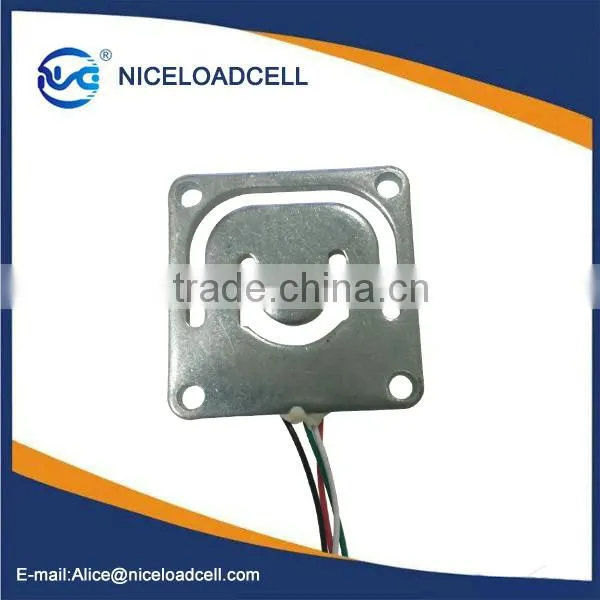

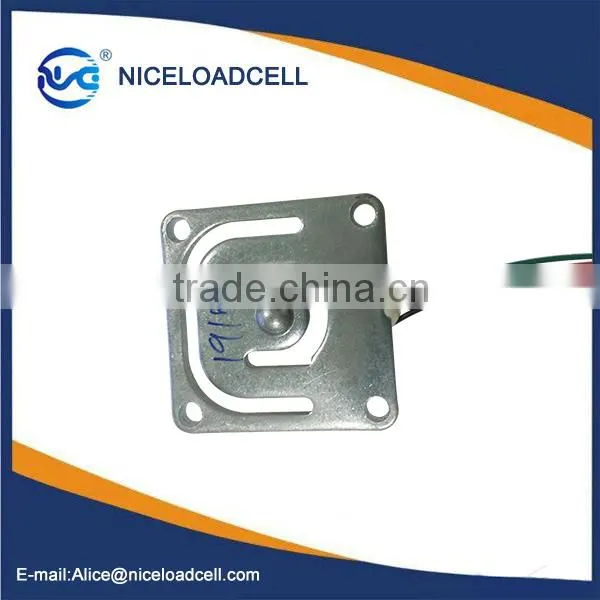

Help CenterFlat Size 1mm Body Scales Mini Miro Small Load Cells
Related Products
-
Kitchen Scales Micro Mini Miniature Load Cell 3KGUS$ 2 - 3MOQ: 10 Pieces -
Luggage Scales Hanging Scale Load Cells Micro Mini Load Cells 40kgUS$ 2 - 5MOQ: 1 Piece
-
50kg Body Scales Load Cell Micro Mini Little Full Bridge Weighing Load CellsUS$ 2 - 3MOQ: 10 Sets
-
5kg Load Cell Kitchen Scales Load Cell Micro Mini Little Weighing Load CellsUS$ 2 - 3MOQ: 10 Sets
-
50kg Mini Load Cell Chinese Micro Bathroom Scale Load CellUS$ 2 - 3MOQ: 10 Sets

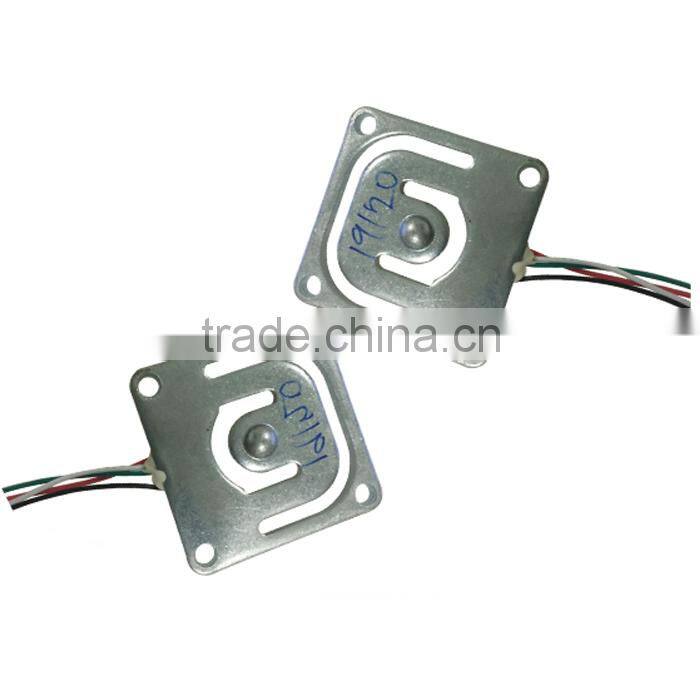

Feacture:
Ratel Load:CZS928DA-50KG
Dimension Size:34x34x4.5mm
Materil :Stell Alloy
Suitable for body scales micro scales, hand scales,digital scales and another micro weighing scales machine
Flat thin 1mm
Part of the shade for load cell bearing area, convex points for stress
the another as the force deformation area, there are can't influence in the stress deformation
Suggest bottom sensors the location of the plastic shell for more than 3 mm
Half Bridge four load cell as a group

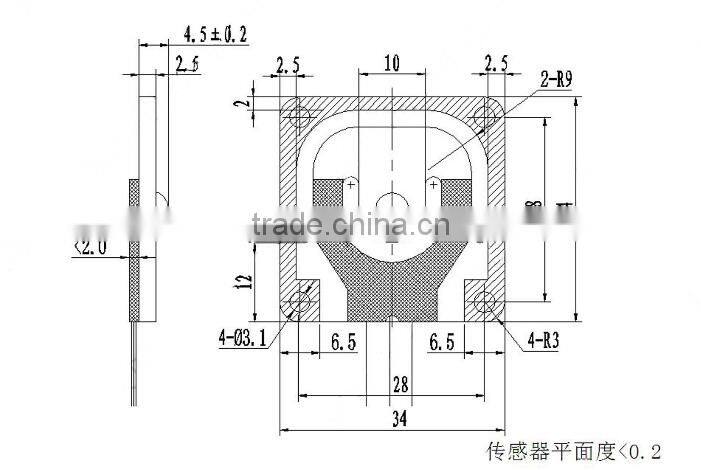

Dimension Size:
Part of the shade for load cell bearing area, convex points for stress
the another as the force deformation area, there are can't influence in the stress deformation
Suggest bottom sensors the location of the plastic shell for more than 3 mm

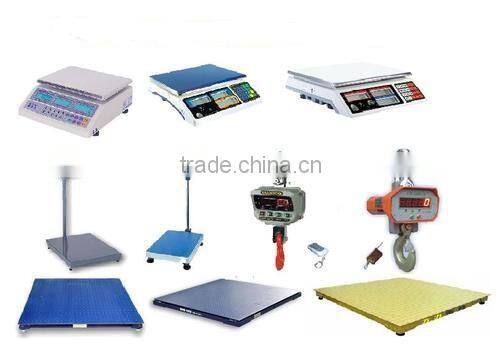

Suitable for
Specifications:
| Rated load:(kg) | 50kg |
| Zero Balance | ±0.5mv/v |
| Rated output | 0.8±0.2 mV/V |
| Linearity | 0.05 |
| Hysteresis | 0.05 |
| Repeatability | 0.05 |
| Creep | 0.05%F.S/1MIN |
| Output resistance | 1000±10ohm |
| Input resistance | 1000±10ohm |
| Use temp. range | (℃ )-10~60 |
| Temeperature Effect on Zero | (%FS):0.2/10”C |
| Temeperature Effect on Sensitivity | (%FS):0.1/10”C |
| Insulation resistance(MΩ)≥ | (MΩ)≥2000 MΩ |
| Excitation voltage(V) | 3-10(VDC) |
| overload (%F.S) | 150%±10 |
| Accuracy | 0.5%F.S |
