Body Personal Scales Type Micro Mini Small Litthle Load Cells
US$ 3 - 4
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
CZS
Model Number:
CZS902
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Scales Mini Miro Small Load CellsUS$ 2 - 3MOQ: 10 Pieces -
Kitchen Scales Mini Small Micro Load Cell 2kg 10kg 20kgUS$ 1 - 2MOQ: 10 Pieces
-
Personal Body Bathroom Scales Type Micro Mini Low Cost of Load CellUS$ 3 - 4MOQ: 10 Pieces
-
High Precision Medical Cabinet Machine Micro Mini Load CellsUS$ 3 - 4MOQ: 10 Pieces
-
Kitchen Scales House Hold Micro Mini Miniature Load Cell 5KG 7kgUS$ 2 - 3MOQ: 10 Pieces
Place of Origin
Hunan, China
Brand Name
CZS
Model Number
CZS902
Usage
Position Sensor
Theory
Resistance Sensor
Output
Analog Sensor
Product Description
Feature:

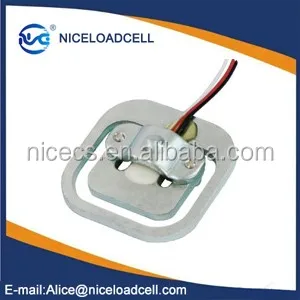

Body Scales Micro load cells
Capacity :50kg
Output:1.0±0.15mv/V

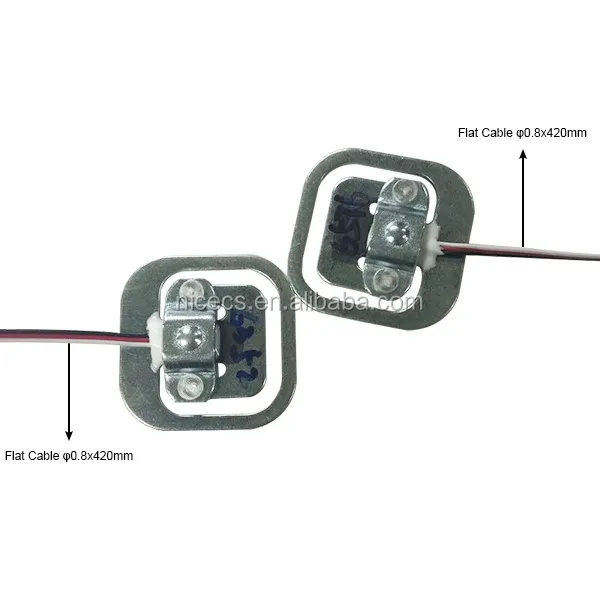

Cable:0.8X420MM
Apply to :Body scales
4PCS connection as a group (Set) Half Bridge
Dimension Size:34x34x7.8mm
.
Datahsheet：
Rated load:(kg)50kg
Zero Balance:±0.3mv/v
Rated output:1.0-2.0 mV/V
Linearity: (%FS):0.3
Hysteresis: (%FS):0.3
Repeatability:(%FS):0.1
Creep: 0.15%F.S/3MIN
Output resistance:1000±10ohm
Input resistance:1000±10ohm
Use temp. range(℃ )-10～+40
Wire：
Power+(Red),Power-(Black)
Signal+(Green),Signal-(White)
Temeperature Effect on Zero:(%FS):0.3/10”C
Temeperature Effect on Sensitivity:(%FS):0.3/10”C
Insulation resistance(MΩ)≥1000 MΩ(100VDC)
Excitation voltage(V) :3-10(VDC)
overload (%F.S) : 150%
Accuracy:0.3%F.S
Zero Balance:±0.3mv/v
Rated output:1.0-2.0 mV/V
Linearity: (%FS):0.3
Hysteresis: (%FS):0.3
Repeatability:(%FS):0.1
Creep: 0.15%F.S/3MIN
Output resistance:1000±10ohm
Input resistance:1000±10ohm
Use temp. range(℃ )-10～+40
Wire：
Power+(Red),Power-(Black)
Signal+(Green),Signal-(White)
Temeperature Effect on Zero:(%FS):0.3/10”C
Temeperature Effect on Sensitivity:(%FS):0.3/10”C
Insulation resistance(MΩ)≥1000 MΩ(100VDC)
Excitation voltage(V) :3-10(VDC)
overload (%F.S) : 150%
Accuracy:0.3%F.S
