Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Tile Making Machine > 1220-800 Color Steel Arch Roof Sheet Roll Forming Machine

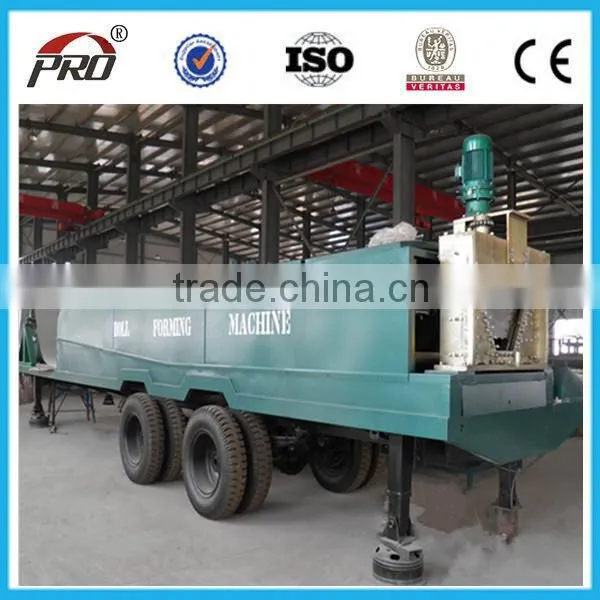

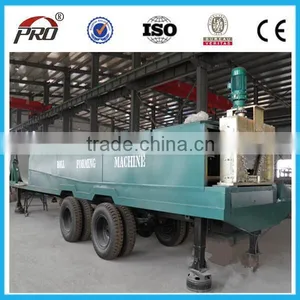

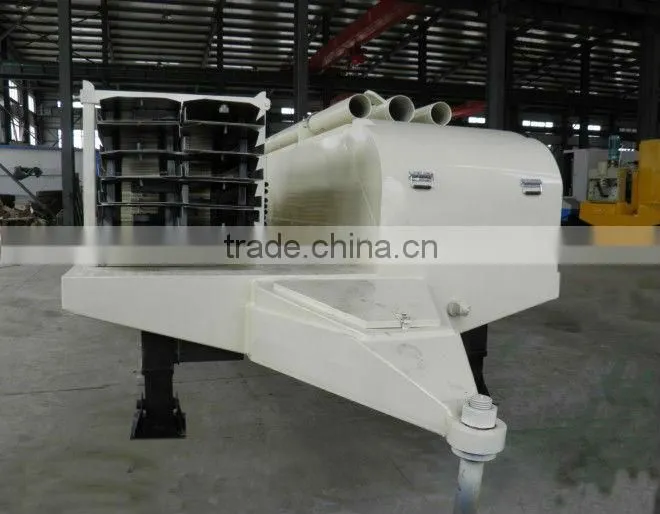

1220-800 Color Steel Arch Roof Sheet Roll Forming Machine

US$ 30,000 - 80,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Tile Forming Machine

Tile Type:

Steel

Contact Supplier Request Quote Chat Now

Yingkou Professional Roll Forming Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Tile Forming Machine

Tile Type Steel

Use Roof

Production Capacity 65.5%

Place of Origin Liaoning, China

Brand Name PRO

Model Number 240(1220-800)

Power(W) 18.9KW

Voltage 380V

Dimension(L*W*H) 11650mm *2230mm*2850mm

Weight 12T

Certification CE/ISO9001

Warranty 13 months after B/L date

After-sales Service Provided Engineers available to service machinery overseas

1220-800 arch sheet roll forming machine

1.Technical parameter

main Technical Specification:
Size: 11650mm × 2230mm × 2300mm	Total Weight: about 15000KG
MainMotorPower:18.9KW
Bending power: 3.0kw+1.1kwx2; Sewing power: 2.2kw	Cutting power: 4.0kw; Forming power: 7.5kw
Working Speed: Straight sheet: 15m/min Arch sheet: 13m/min Sewing: 16m/min
Feeding Width: 1220mm	Effective Width: 800mm
Step of rollers: 14 steps	Controlling system: PLC &Manual
Material of cutting blade: Cr12 moV	Sheet operating factor: 65.5%
Thickness of the coil: 0.6-1.5mm	Material of roller shaft: 45# steel, galvanized
Material of rollers: 45# steel, quenched with hard chrome	Type of cutting: Roll-formed and length-set cutting
Electric Standard : 380V / 50 HZ / 3 PHASES	The depth of the groove:277mm
Proper span: ≤45m	Ship Container: 40’HQ x 1
Characteristics
1. The rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium. 2. The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer. 3. The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument. 4. Our machine can be divided in to two cutting ways, one is hydraulic, and the other is mechanical. Controlling system include manual and automatic. It can be also designed according to your requirement. 5. Our helping hand wheel and the counter are used in adjustment of the bending of arch sheet, which makes the operation simpler. 6. Our hoisting tool is light and handy; the weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick.
