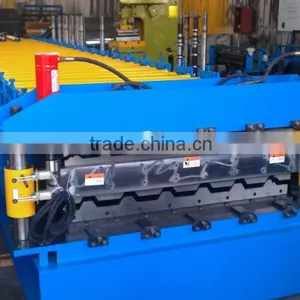

Double-layer Sheet Roll Forming Machine
US$ 15,000 - 27,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
PRO
Model Number:
D
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian or according to your requst
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Excellent Quality of Glazed Tile Roll Forming MachineUS$ 16,000 - 33,000MOQ: 1 Set -
PRO Steel Roof Tile Making Machine or Corrugated Sheet Roll Forming MachineUS$ 12,000 - 19,000MOQ: 1 Set
-
Color Coated Corrugated Metal Sheet Roof Panel Roll Forming MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
Z-shape Stainless Steel Used Metal Roll Forming MachineUS$ 20,000 - 30,000MOQ: 1 Set
-
Excellent Quality of C-shape Steel Purlin Roll Forming MachineUS$ 16,000 - 30,000MOQ: 1 Set
Place of Origin
Liaoning, China
Brand Name
PRO
Model Number
D
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Main parameter
1. De-coiler: manual operation, passively de-coiling
2. Loading of de-coiler: 5 T
3. Frame of machine: welded with 350H beam steel
1. De-coiler: manual operation, passively de-coiling
2. Loading of de-coiler: 5 T
3. Frame of machine: welded with 350H beam steel
4. Thickness of wallboard: 18 mm
5. Guide feeding way of forming: side direction roller type
6. Forming machine type: wallboard and chain drive
7. Diameter of shaft: ￠76mm
8. Chain: 16A single row
9. Motor power of forming machine: 5.5KW
10. Line speed of forming machine: 18 m/min
11.Steps of forming machine: 16/20
12.Roller material: superior 45# steel forging
13.Thickness of Chrome plated on roller: 0.05mm
14.Hydraulic station motor: 4 KW
15.Hydraulic station oil pump: gear pump
16.Cutting way: cut off before/ after hydraulic shaped
17.Cutting blade material: Cr12
18.Cutting blade heat treatment: HRC58º-60
19.Rolling thickness: 0.3-0.8 mm
20.Feeding width: 1220mm
21.Precision of cut-to-length: ±2mm
22.Frequency changer : Tricrystal
23. Computer adopts PLC : Panasonic
5. Guide feeding way of forming: side direction roller type
6. Forming machine type: wallboard and chain drive
7. Diameter of shaft: ￠76mm
8. Chain: 16A single row
9. Motor power of forming machine: 5.5KW
10. Line speed of forming machine: 18 m/min
11.Steps of forming machine: 16/20
12.Roller material: superior 45# steel forging
13.Thickness of Chrome plated on roller: 0.05mm
14.Hydraulic station motor: 4 KW
15.Hydraulic station oil pump: gear pump
16.Cutting way: cut off before/ after hydraulic shaped
17.Cutting blade material: Cr12
18.Cutting blade heat treatment: HRC58º-60
19.Rolling thickness: 0.3-0.8 mm
20.Feeding width: 1220mm
21.Precision of cut-to-length: ±2mm
22.Frequency changer : Tricrystal
23. Computer adopts PLC : Panasonic
24.Computer operation panel adopts touch screen
25. Voltage: 380V/50HZ, 3 phase
26. Dimension of machine: 7.8 M x 1.7 M x 1.5 M
25. Voltage: 380V/50HZ, 3 phase
26. Dimension of machine: 7.8 M x 1.7 M x 1.5 M
Technological process
Passively de-coiling → Guiding & Feeding material → Roll Forming → Cutting-to-length → Output panel
Passively de-coiling → Guiding & Feeding material → Roll Forming → Cutting-to-length → Output panel

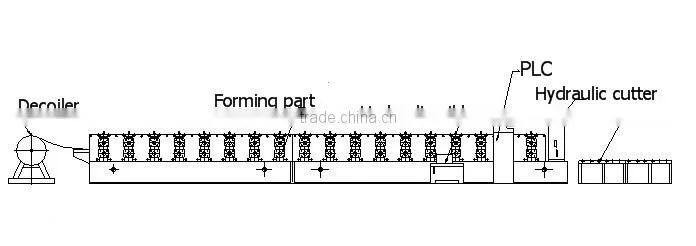

Equipment configuration
Manual De-coiler(5T),Main machine of roll forming, Hydraulic forming cutter,Hydraulic station,PLC computer operation cabinet,Runout table
Manual De-coiler(5T),Main machine of roll forming, Hydraulic forming cutter,Hydraulic station,PLC computer operation cabinet,Runout table

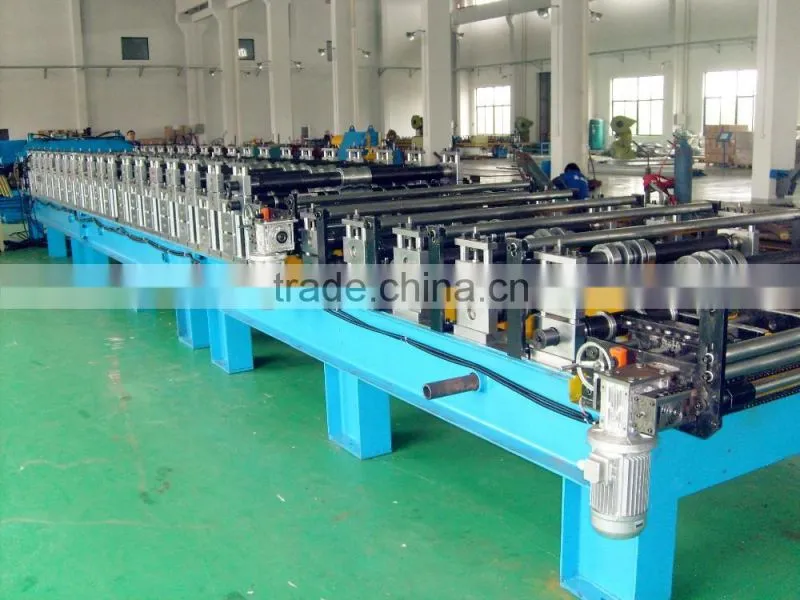

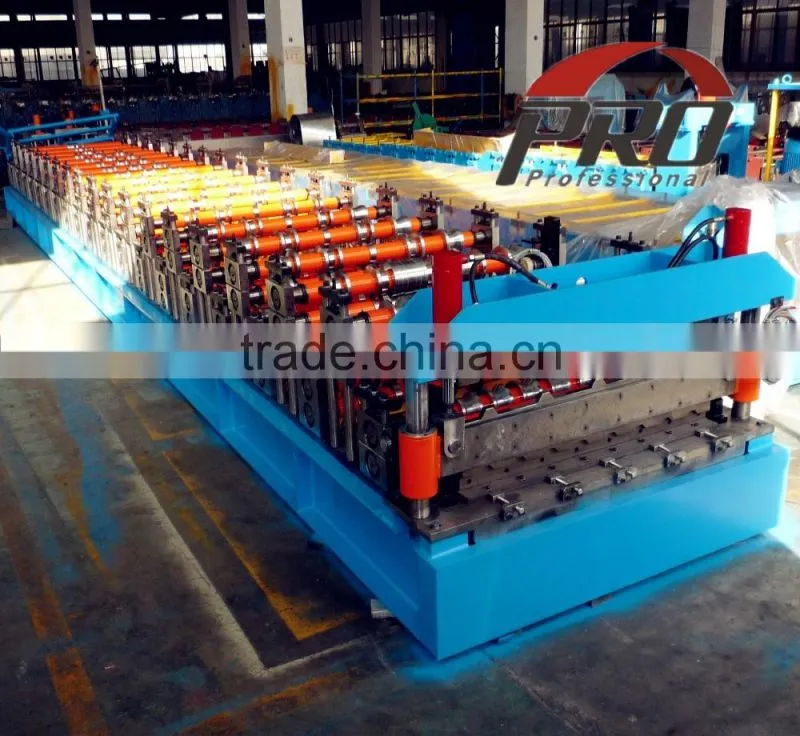

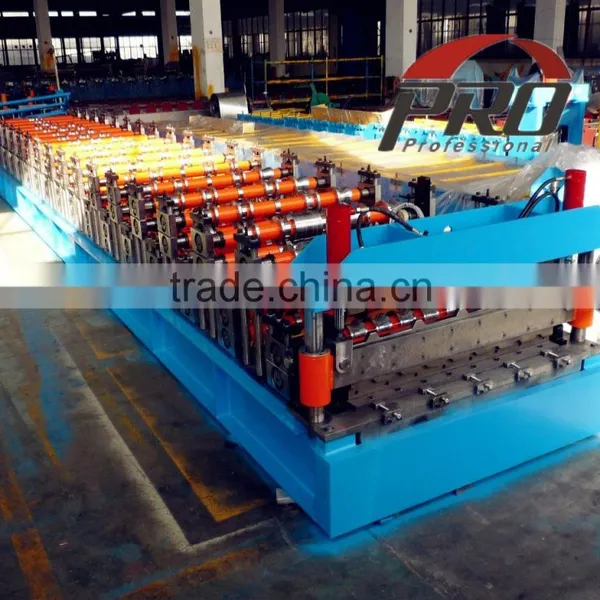

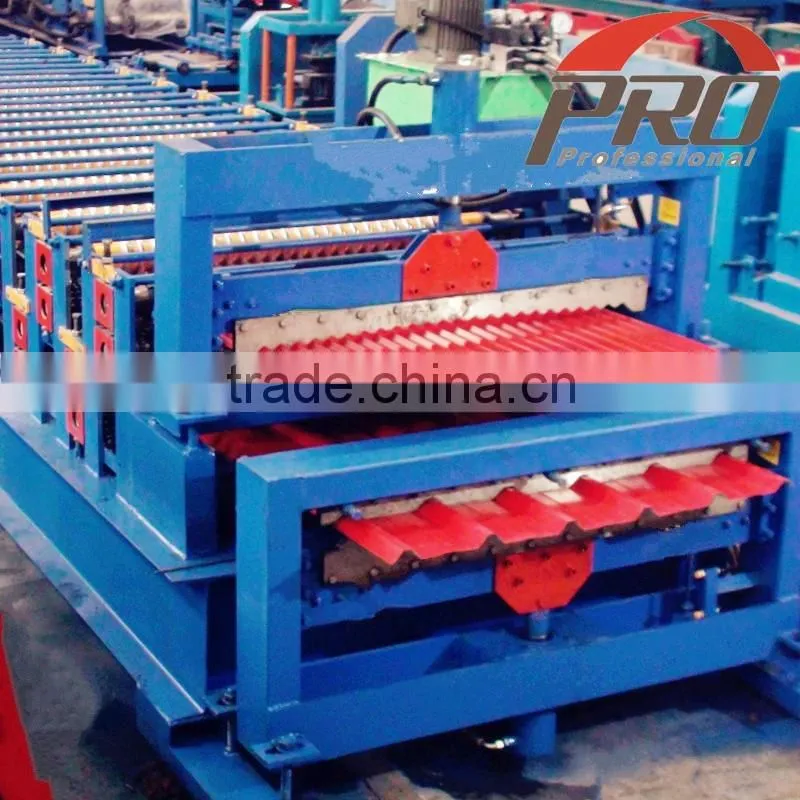

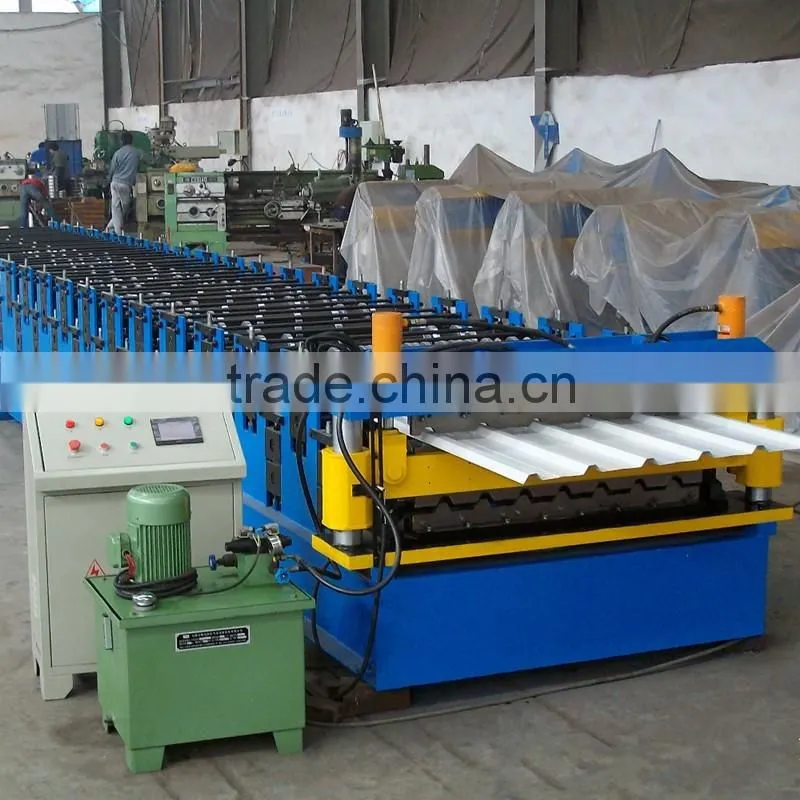

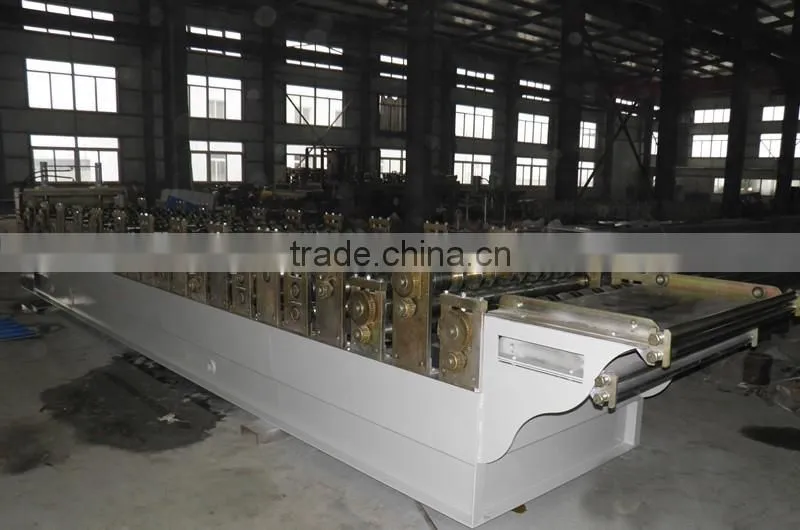

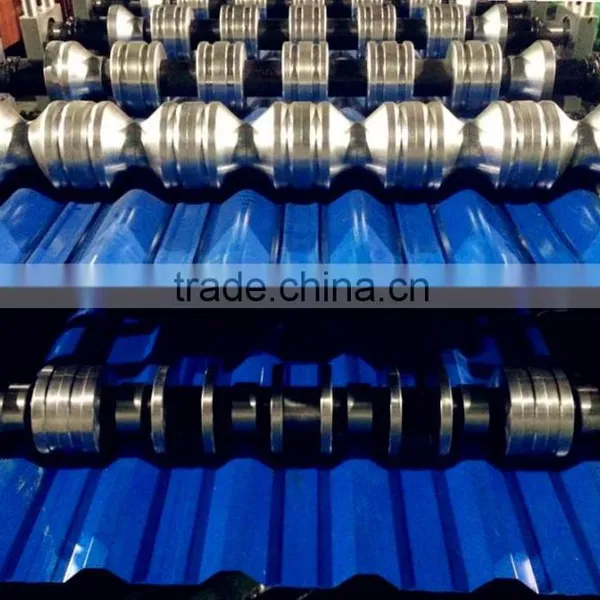

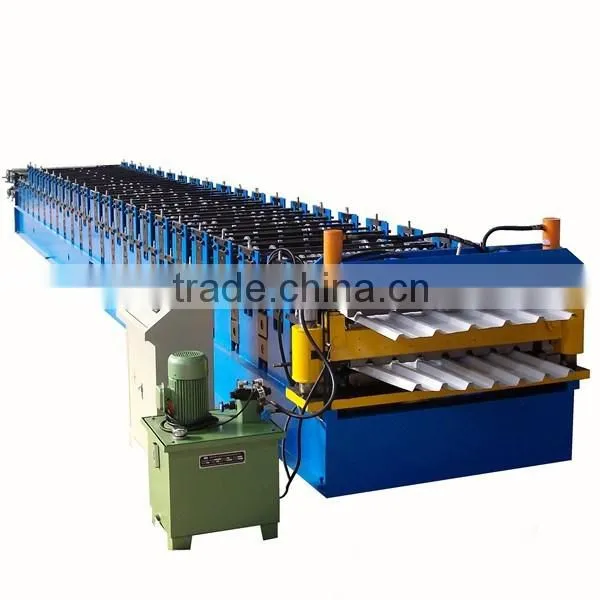

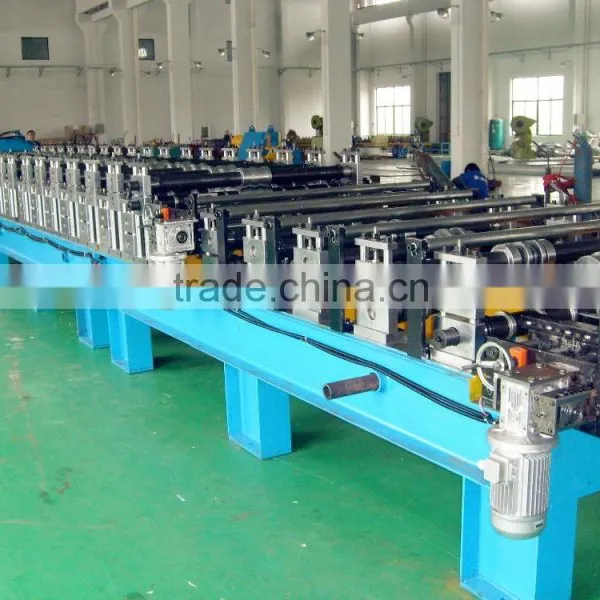

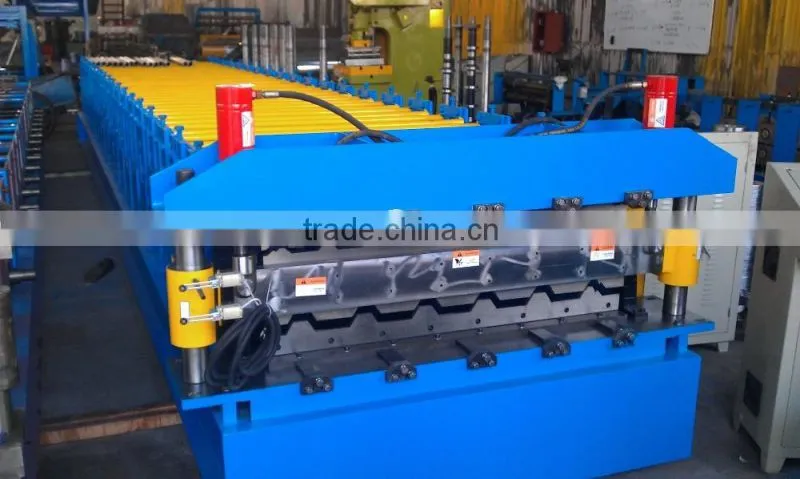

Detailed Images
Packing & Delivery
Payment term: T/T. 30% T/T in advance,70% T/T before shipment.
Delivery time: Within 30 days after receiving down payment.
Guarantee period: 24 months after B/L date.
