Excellent Quality of C-shape Steel Purlin Roll Forming Machine
US$ 16,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
PRO
Model Number:
C
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian or according to your requst
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Used Frame Machine For Sale Building Small Construction Equipment PricesUS$ 39,000 - 52,000MOQ: 1 Set -
Used Metal Roofing Used Construction Machinery in Dubai Purlin Roll Forming MachineUS$ 25,000 - 49,000MOQ: 1 Set
-
Super Galvalume Lowes Sheet Metal Roofing Sheet Price Glazed Tile Roll Forming MachineUS$ 22,000 - 38,000MOQ: 1 Set
-
Arch Roofing Metal Sheets Arch Sheet Steel Profile Roof Roll Forming Machine ByUS$ 20,000 - 47,000MOQ: 1 Set
-
Arch Long Span Roofing Sheet Used Roll Forming MachineUS$ 25,000 - 35,000MOQ: 1 Set
Place of Origin
Liaoning, China
Brand Name
PRO
Model Number
C
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Feeding device , transmission, main machine and forming roller (including guide table), cutting (after roll forming) device, hydraulic system, electric control system, run out table, etc. Main rack of the machine is processed on the planer type milling machine.
Main Technical specification
1.Rolling material: 2-3mm thickness, including 5 sets of common moulds
2.Working speed : 8-10 M/min
3.Step of rollers : 13 steps
2.Working speed : 8-10 M/min
3.Step of rollers : 13 steps
4.Main motor power : 11 KW
5.Hydraulic station motor power : 7.5 KW
6.Material of roller : CR12
7. Material of main shaft : 45# forged steel, quenching and tempering
8. Spindle Diameter : ￠85 mm
9. Wallboard thickness : 20mm
10. Chain : double-row 20A
11. Hydraulic station pressure : 10-12MPa
12. Material of cutting blade : Cr12, quenched.
13. Seven rollers as flattening, Two rollers as pinching
14. Electric control system: whole machine adopts PLC (Panasonic) frequency control, Cut-to-length error≤±3mm
5.Hydraulic station motor power : 7.5 KW
6.Material of roller : CR12
7. Material of main shaft : 45# forged steel, quenching and tempering
8. Spindle Diameter : ￠85 mm
9. Wallboard thickness : 20mm
10. Chain : double-row 20A
11. Hydraulic station pressure : 10-12MPa
12. Material of cutting blade : Cr12, quenched.
13. Seven rollers as flattening, Two rollers as pinching
14. Electric control system: whole machine adopts PLC (Panasonic) frequency control, Cut-to-length error≤±3mm
Production process
Manually de-coiling →Guiding & Feeding & Correcting→ Roll forming → Cutting after roll forming → Output product.

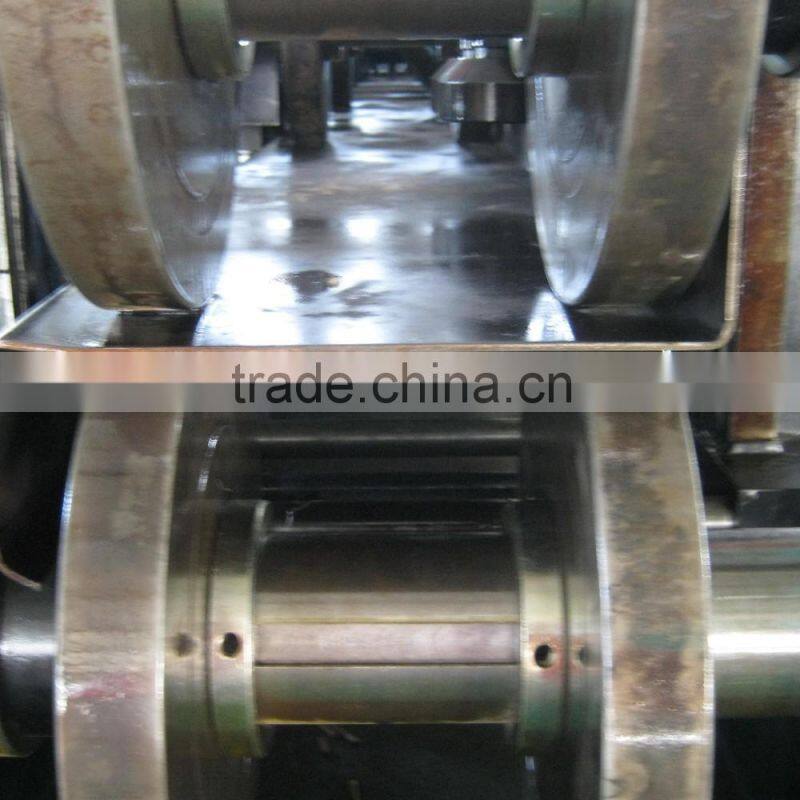

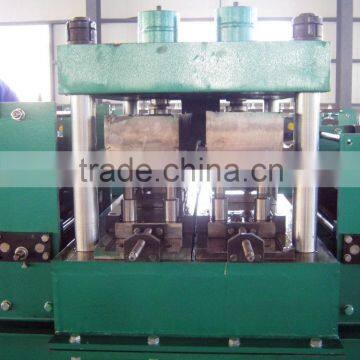

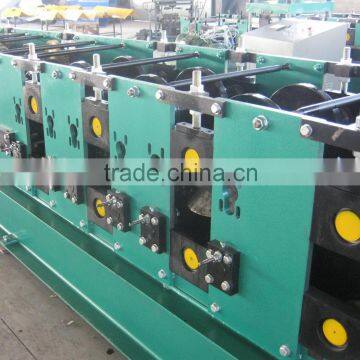

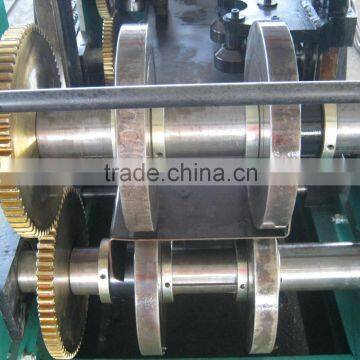

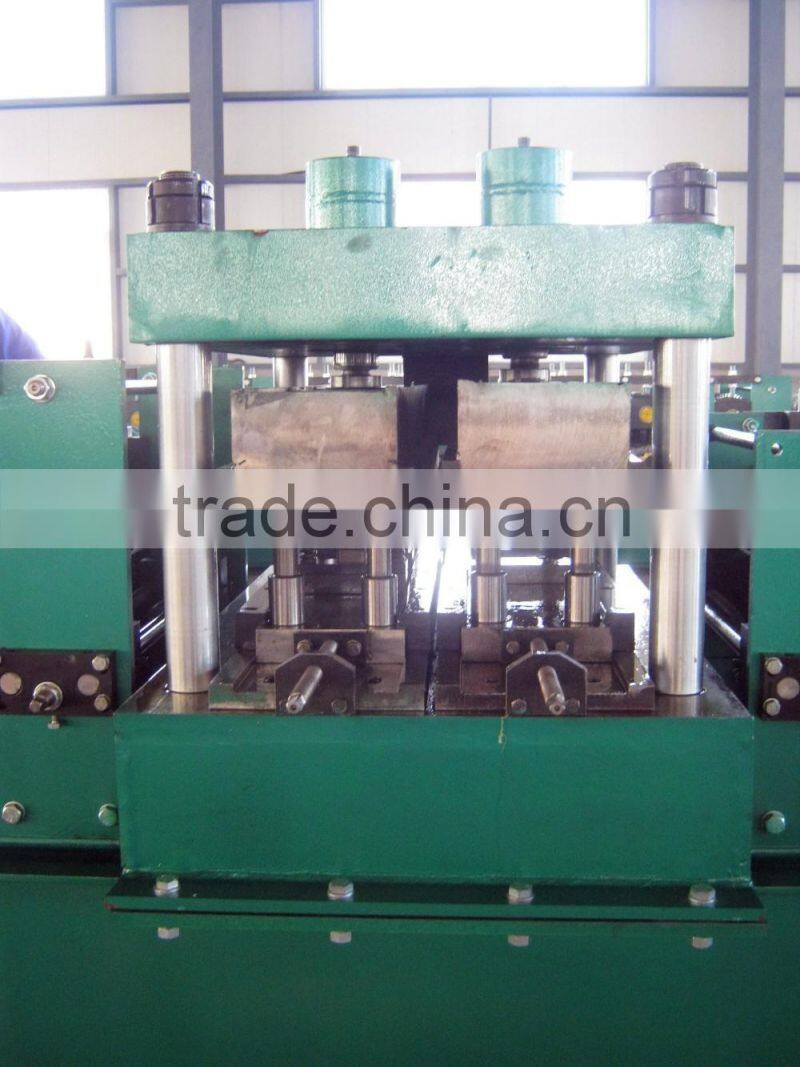

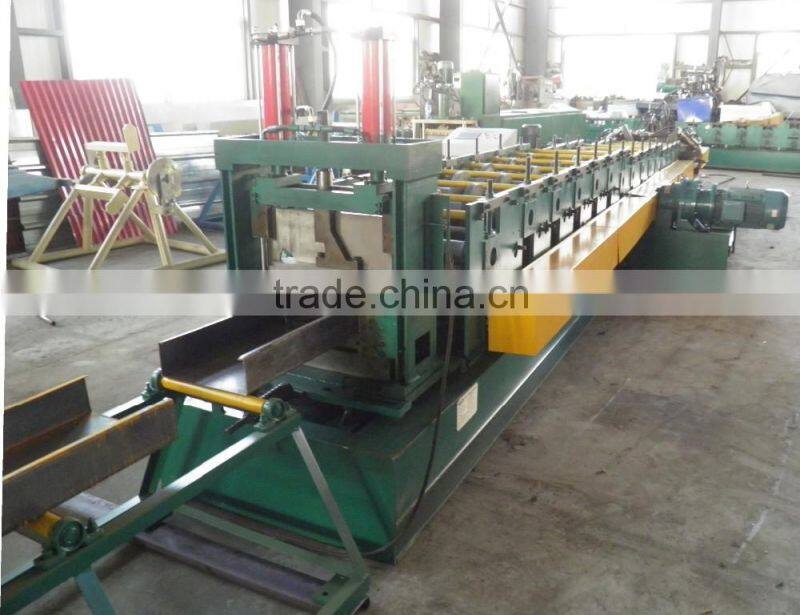

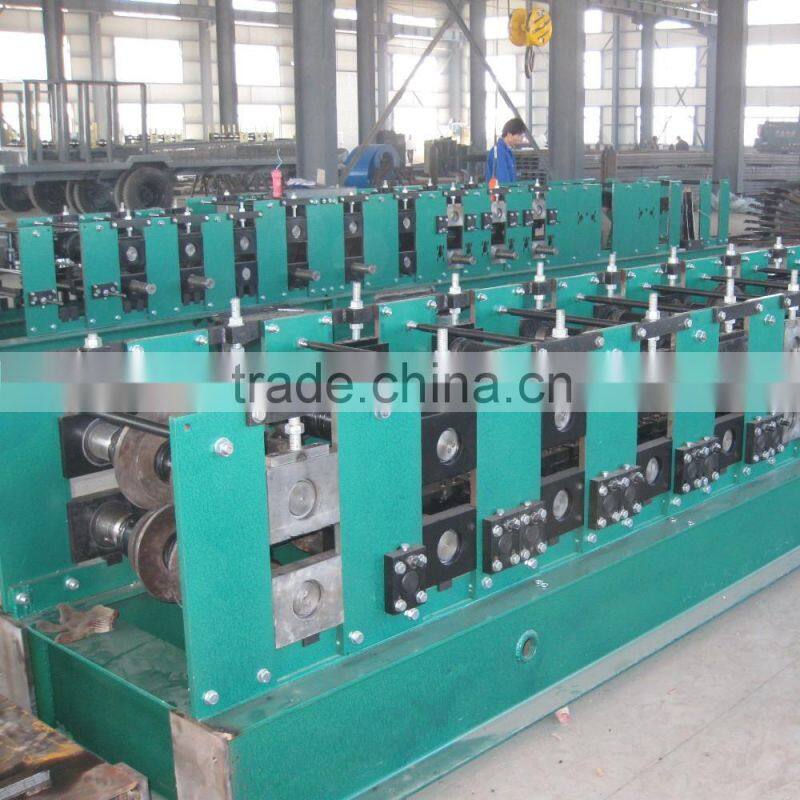

Detailed Images

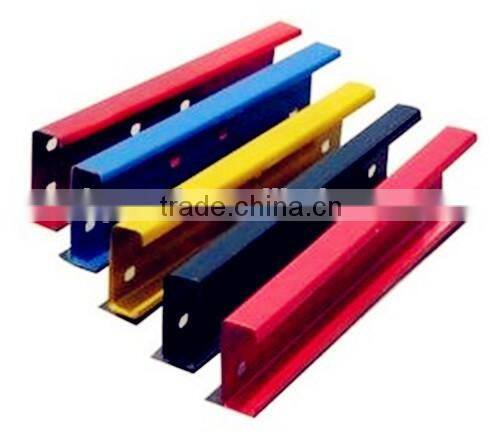

Profile (with 5 sets of moulds)
1.h=100mm,b=50mm,c=15mm,coil width=210mm
2.h=150mm,b=50/60mm,c=20mm,coil width=270/290mm
3.h=200mm,b=65/70mm,c=20mm,coil width=350/360mm
4.h=250mm,b=70/80mm,c=20mm,coil width=410/430mm
5.h=300mm,b=70/80mm,c=20mm,coil width=460/480mm
Packing & Delivery
Delivery time: 30 days since receiving buyer's 30% down payment
Payment term: TT, 30%TT in advanced, 70%TT before the machine shipped.
Guarantee period: 24 months since the date of B/L.
