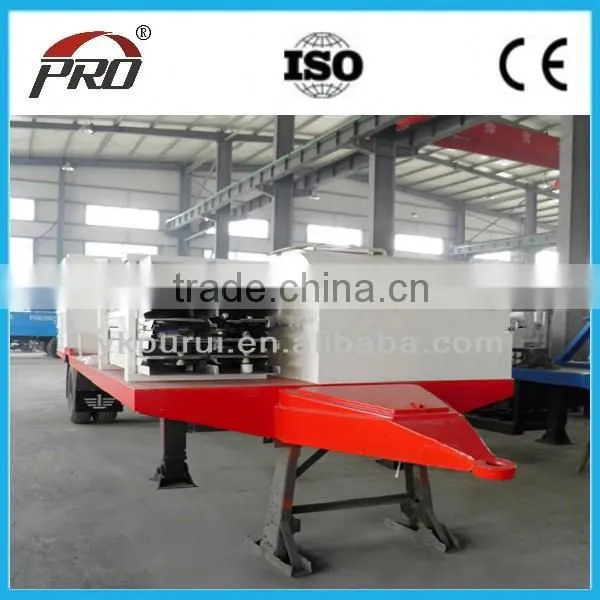

PRO Arch Sheet Roll Forming Machine for Roof

PRO Arch Sheet Roll Forming Machine for Roof thumbnail-1
PRO Arch Sheet Roll Forming Machine for Roof photo-1
US$ 30,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Tile Forming Machine, forming machine
Tile Type:
Steel
Contact Supplier Request Quote Chat Now
Yingkou Professional Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Tile Forming Machine, forming machine
Tile Type Steel
Use Roof
Brand Name PRO
Model Number PRO240
Power(W) 17900
Voltage 380v
Dimension(L*W*H) 11650mm*2230mm*2400mm
Weight 12t
Certification CE
Warranty 13 months after B/L date
After-sales Service Provided Engineers available to service machinery overseas
PRO arch sheet roll forming machine for roof
Product Description
Main Technical Specification:
Size: 11650mm × 2230mm × 2400mm
Total Weight: about 15000KG
MainMotorPower:17.9KW
Bendingpower:3.0kw+1.1x2kw
Sewing power: 2.2kw
Cutting power: 3.0kw
Forming power: 7.5kw
Working Speed:  Straight sheet: 15m/min
                                  Arch sheet: 13m/min
                                       Sewing: 16m/min
Feeding Width: 914mm
Effective Width: 610mm
Step of rollers: 14 steps
Controlling system: PLC (Ormon)
Material of cutting blade: Cr12 moV
Sheet operating factor: 66%
Thickness of the coil: 0.6-1.5mm
Material of roller shaft: 45# steel, galvanized
Material of rollers: 45# steel, quenched with hard chrome
Type of cutting: Roll-formed and length-set cutting
Electric Standard:380V / 50 HZ /3 PHASE
The depth of the groove:203mm
Proper span: ≤42m
Ship Container: 40’HQ x 1

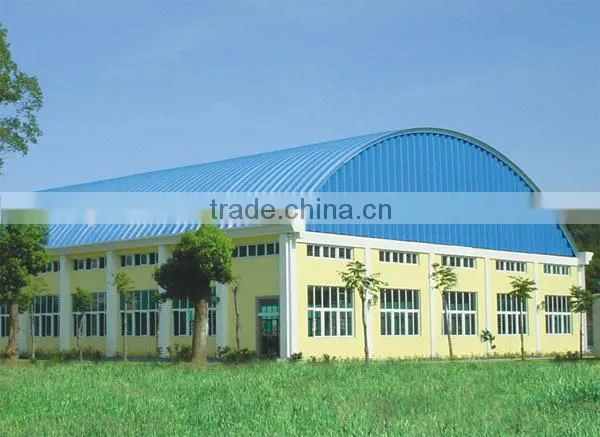

PRO arch sheet roll forming machine for roof
