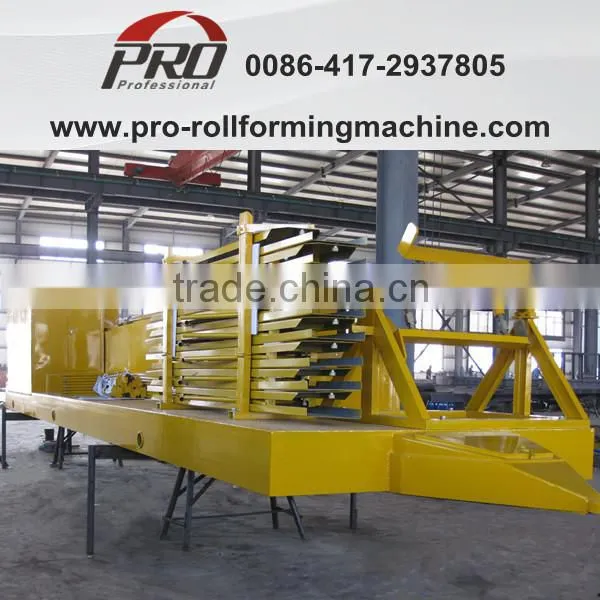

PROABMUBM CE Certificate metal arch sheet roof roll forming machine
Yingkou Professional Roll Forming Machine Co., Ltd.is a professional manufacture of roll forming machine. We can produce many kinds of different models equipments: single axle, double axles, three axles, floor type, whole hydraulic type etc. PLC, servo motor and generator provide software support. We can instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied. Clients who purchase our equipments can create largest profit space.

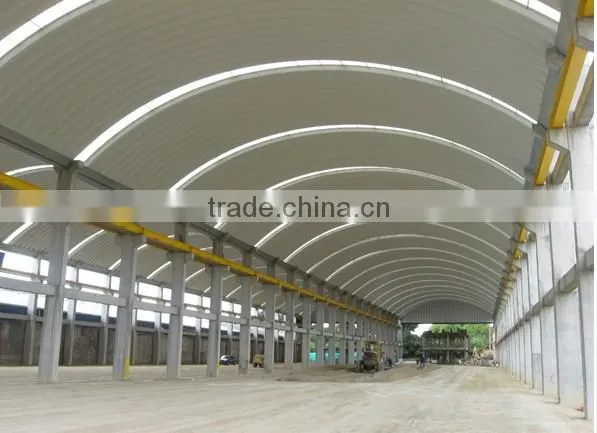

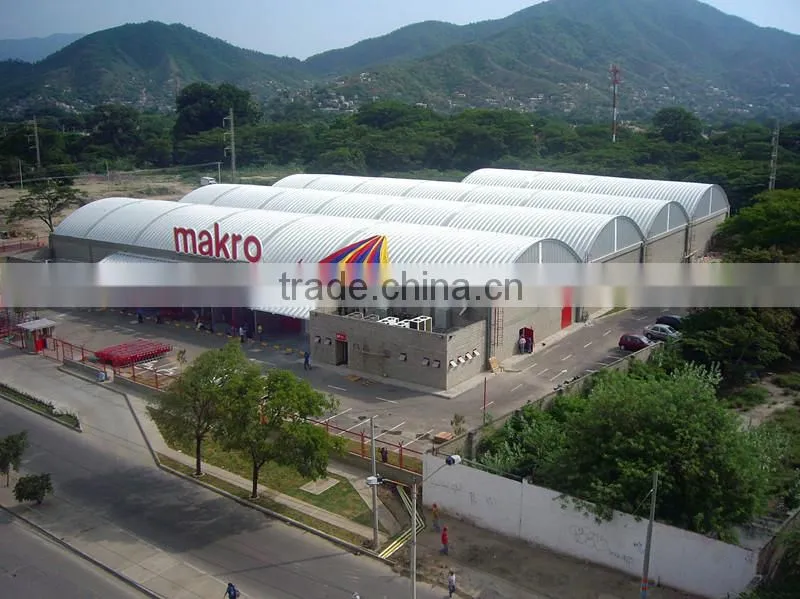

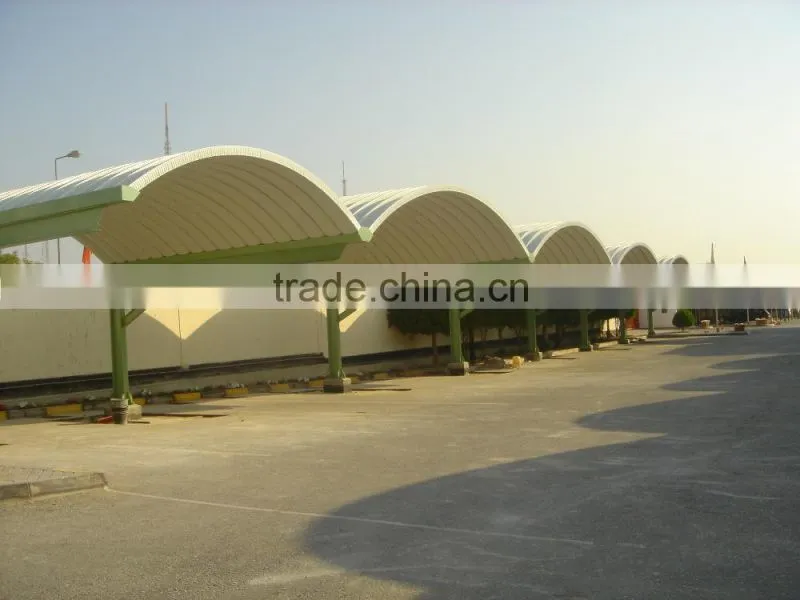

Our roll forming machine is a mobile plant, which can directly be produced on worksite, effectively lowering the cost, shorting the construction period and improving the efficiency of engineering. Clients choose suitable machines according to different geographical conditions, different climatic environment, and different spans. The project is widely used in large-scale and mid-scale industrial construction, such as factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre and so on.
Main Technical Specification: | |
Size: 11650mm × 2230mm × 2300mm |
Total Weight: about 15000KG |
Total MotorPower:17.9KW | |
Bending power: 3.0kw+1.1kwx2; Sewing power: 2.2kw |
Cutting power: 4.0kw; Forming power: 7.5kw |
|
Working Speed: Straight sheet: 15m/min Arch sheet: 13m/min Sewing: 16m/min | |
Feeding Width: 1250mm |
Effective Width: 800mm |
Step of rollers: 14 steps |
Controlling system: PLC&Manual |
Material of cutting blade: Cr12 moV |
Sheet operating factor: 64% |
Thickness of the coil: 0.6-1.5mm |
Material of roller shaft: 45# steel, galvanized |
Material of rollers:45# steel, quenched with hard chrome |
Type of cutting: Roll-formed and length-set cutting |
Electric Standard : 380V / 50 HZ / 3 PHASES |
The depth of the groove:320mm |
Proper span: ≤45m |
Ship Container: 40’HQ x 1 |
Characteristics | |
|
1. The rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium. 2. The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer. 3. The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument. 4. Our machine can be divided in to two cutting ways, one is hydraulic, and the other is mechanical. Controlling system include manual and automatic. It can be also designed according to your requirement. 5. Our helping hand wheel and the counter are used in adjustment of the bending of arch sheet, which makes the operation simpler. 6. Our hoisting tool is light and handy; the weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick. | |
Difference between PRO arch plate forming machine & ABM (k span machine, super k span machine) made by MIC.
1.Appearance
There are four shapes of PRO arch plate forming machine, they are machine with single axle, machine with double axles, machine with triple axles and floor type machine.
The machine is convenient and flexible when the length of it is 8900mm, or there will be larger working place on the 11690mm length machine. Here are horizontal machine and vertical machine. Mechanical control or hydraulic control is optional.
All the Automatic Building Machine made by MIC have triple axles, length is 10400mm, fully controlled by hydraulic.
2.Structure
Parameters of PRO arch plate forming machine as follow:
Material of shaft: 45# high-quality steel, galvanized. Material of roller: 45# high-quality steel, quenched, hard chrome plating. Material of cutter: 12CrMoV, heat treatment. Machine adopts automotive rear bridge as the axle, equipped with tires of 900-20 size, can load more and has better impact resistance and damping effect.
K span machine made by MIC has all Steel and burnished aluminum construction, precision steel forming rollers with hard chrome plating.
3.Software
PRO arch plate forming machine is equipped with PLC and servo motor, no software is loaded on the machine.
UBM(k span machine, super k span machine) made by MIC is fully controlled by software loaded on the machine.
4.Operation
PRO arch plate forming machine has a simple structure, which is easy to operate, and easy for training.
Automatic Building Machine made by MIC has a complex structure; the operator has to be trained PROly before operating.
5.Price
Selling price of PRO arch plate forming machine is from US$30,000 to US$100,000.
Selling price of Super K span machine made by MIC is much higher than PRO arch plate forming machine.
