Rroof Tile Zinc Aluminium Roofing Sheet Making Machine Rolling

Yingkou Professional Roll Forming Machine Co., Ltd.
Rroof Tile Zinc Aluminium Roofing Sheet Making Machine Rolling thumbnail-1
Rroof Tile Zinc Aluminium Roofing Sheet Making Machine Rolling thumbnail-2
Rroof Tile Zinc Aluminium Roofing Sheet Making Machine Rolling thumbnail-3
Rroof Tile Zinc Aluminium Roofing Sheet Making Machine Rolling thumbnail-4
Rroof Tile Zinc Aluminium Roofing Sheet Making Machine Rolling thumbnail-5
Rroof Tile Zinc Aluminium Roofing Sheet Making Machine Rolling thumbnail-6
Rroof Tile Zinc Aluminium Roofing Sheet Making Machine Rolling photo-1
Rroof Tile Zinc Aluminium Roofing Sheet Making Machine Rolling photo-2
Rroof Tile Zinc Aluminium Roofing Sheet Making Machine Rolling photo-3
Rroof Tile Zinc Aluminium Roofing Sheet Making Machine Rolling photo-4

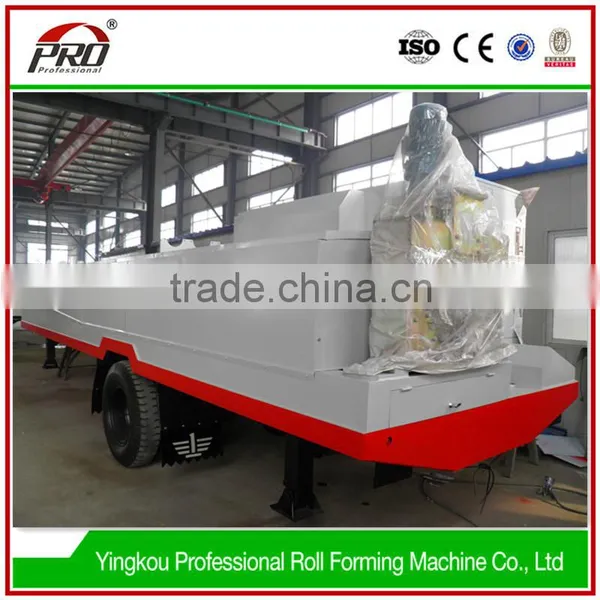

Rroof Tile Zinc Aluminium Roofing Sheet Making Machine Rolling photo-5

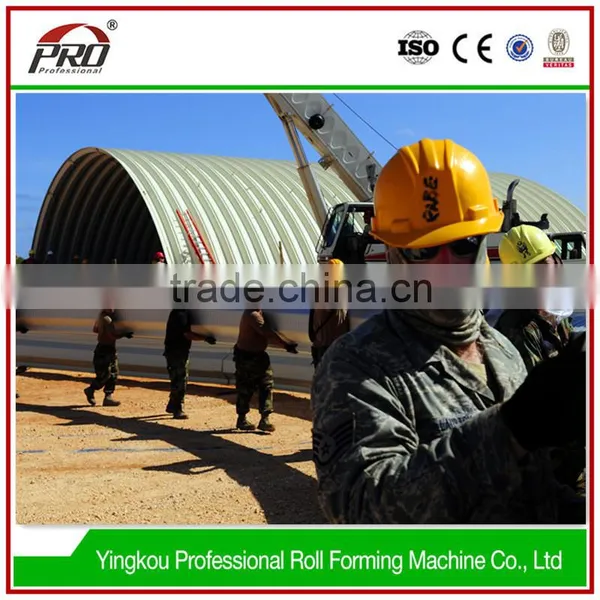

Rroof Tile Zinc Aluminium Roofing Sheet Making Machine Rolling photo-6
US$ 28,000 - 38,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Tile Forming Machine
Tile Type:
Colored Steel
Use:
Roof
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Tile Forming Machine
Tile Type Colored Steel
Use Roof
Production Capacity 12-15m/min
Place of Origin Liaoning, China
Brand Name PRO
Model Number PRO240
Power(W) 19.5kw
Voltage 380V/50HZ/3Phase
Dimension(L*W*H) 8900x2230x2300mm
Weight About 10T
Certification CE ISO
Warranty 2 Years
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Technical Parameter of PRO-1000-700

Production Name
Rroof Tile Zinc Aluminium Roofing Sheet Making Machine Rolling
Dimension
8900mm X 2230mm X 2300mm (Single Axle & 4 Tires)
Total Weight
About 10 Ton
Feeding Width
1000mm
Effective Width
700mm
Using Rate
70%
Thickness
0.5-1.6mm
Groove Depth
175mm
Bending Leaf
10mm Thickness,  Processed By CNC
Cutting Blade
12CrMov Material,  Heat Treatment
Cutting Type
Mechanical Cutting
Forming Type
Roll-Formed and Length-Set Cutting
Controlling System
PLC
Power
Total Motor Power : 19.5KW
Roll Forming Main Motor Power : 9.5KW
Bending Power : 3.0KW+1.5KWx2
Cutting Power : 4.0KW
Seaming Power
1.1KW+1.1KW
Roller Material
45# High-Quality Steel,  Quenched HRC 55~65,  Hard Chrome plating
Shaft Material
45# High-Quality Steel,  Galvanized
Stand of Molding
13+1 Steps
Working Speed
Forming Part : 15m/min
Bending Part: 13m/min
Seaming Part: 16m/min
Suitable Span
8~30m
De-Coiler
Inner-Diameter of Coil : 600mm ~ 800mm,
Max Width of Coil : 1000mm ~ 1200mm
Load : 10Ton

Technical Parameter of PRO-600-305

Production Name
Rroof Tile Zinc Aluminium Roofing Sheet Making Machine Rolling
Feeding Width
600mm
Effective Width
305mm
Using Rate
50.8%
Groove Depth
109mm
Power
Total Motor Power : 15.2KW
Roll Forming Main Motor Power : 5.5KW
Bending Power : 3.0KW+1.5KW
Cutting Power : 3.0KW
Suitable Span
4~24m

Related Production

Model
Feeding Width
Effective Width
Thickness of Steel Coil
Largest Span
PRO-600-300
600mm
300mm
0.5~1.6mm
30m
PRO-600-305
600mm
305mm
0.5~1.6mm
28m
PRO-914-400
914mm
400mm
0.5~1.6mm
40m
PRO-914-610
914mm
610mm
0.5~1.6mm
38m
PRO-914-650
914mm
650mm
0.5~1.6mm
26m
PRO-914-700
914mm
700mm
0.5~1.6mm
22m
PRO-914-750
914mm
750mm
0.5~1.6mm
14m
PRO-1000-610
1000mm
610mm
0.5~1.6mm
42m
PRO-1000-680
1000mm
680mm
0.5~1.6mm
38m
PRO-1000-750
1000mm
750mm
0.5~1.6mm
24m
PRO-1000-800
1000mm
800mm
0.5~1.6mm
18m
PRO-1200-800
1200mm
800mm
0.5~1.6mm
40m
PRO-1220-800
1220mm
800mm
0.5~1.6mm
42m
PRO-1250-800
1250mm
800mm
0.5~1.6mm
45m

Accessories List

Name
Amount
Usage
De-Coiler
1
Coil Support & De-Coil
Seaming Machine
2
Assemble the Finished Arches
Run Out Table
20(Set)
Sheet Support
Suspender
3(Set)
Lifting
Hanger
8
Lifting
Clamp
4
Bite Finished Arches
Bearing(208#)
4
Drive the Rollers
Driving Chain
3(Run)
Roll the Gears
Tool Kit
1(Set)
Finished Arches
Travel Switch
1(Suit)
Measure Length for Cut-to-Length
Detailed Images

Design Drawing

This is machine making 1000-700 plate type. If you want machine making orther plate type, please tell us and we have professional team to design for you!

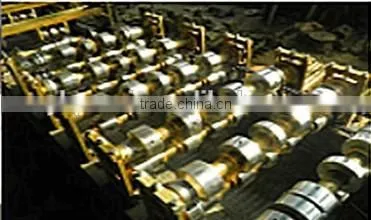

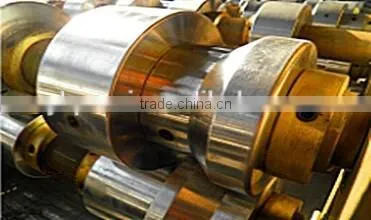

Rollers and Shafts Detail

Our roll forming machine’s rollers and shafts are connected with pin inside and screw outside, and with reinforcing design on both sides of rollers, which can fix the rollers and shafts tightly without deformation.

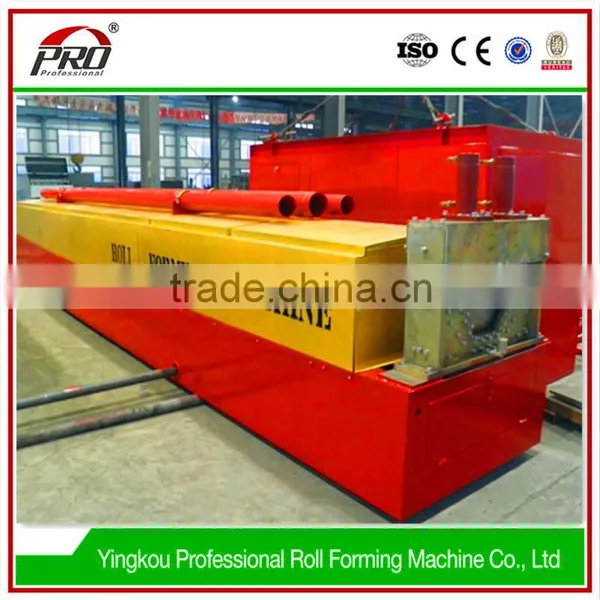

Main Machine Detail

Our roll forming machine includes 20 more wider rollers than other supplier’s machine, which can make the appearance of finished arch more beautiful.

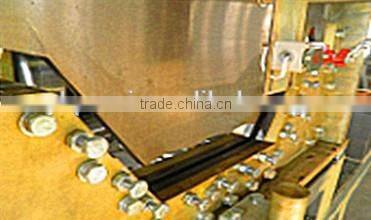

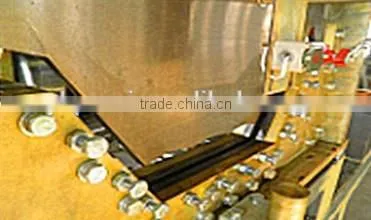

Impeller Detail

10mm thickness smooth impeller, produced by CNC machining center.

Cutting Detail

Cutting material is Cr12 MoV, best and sharpest cutting material.

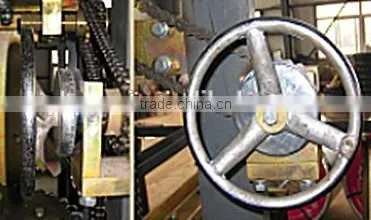

Adjust Span Detail

There is hand wheel with scale in bending part, for span height adjustment.

Our Service

Pre-Sales Service

* Inquiry and consult support.
* Design machine you want.
* View our Factory.
* Provide the technical support.

During the Production

* We will send photo of making machine process detail every once in a while.

After-Sales Service

* Training how to use machine.
* Training how to make project.
* Engineers available to service machinery overseas.

FAQ

Q: Can you  make the machine according to my design or photo type?
A: Yes, we have an experienced team for working out the most  suitable design and production plan for the machine according to your demand or photo type that you are going to book with us.
Q: Are you a factory or trading company?
A: We are a factory located in YingKou city, LiaoNing Province, China. Our city is near Beijing. All clients from abroad and home are warmly welcome to visit our factory!
Q: How do you guarantee the quality of the products?
A: Every section of our production has strict manufacture process, than professional inspectors check  every section of the production, next the production will work for testing quality, which must be 100% quality assurance. Unqualified resolute don't a better factory.

Payment
T/T( 30% by T/T in advance, the rest 70% to be paid by T/T after you inspect the machine in seller's factory before delivery )

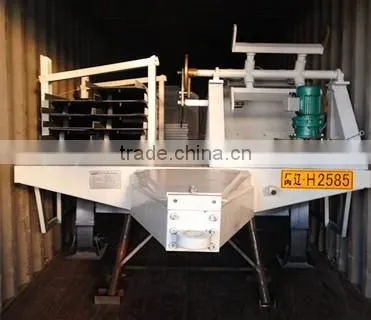

Packing & Delivery
