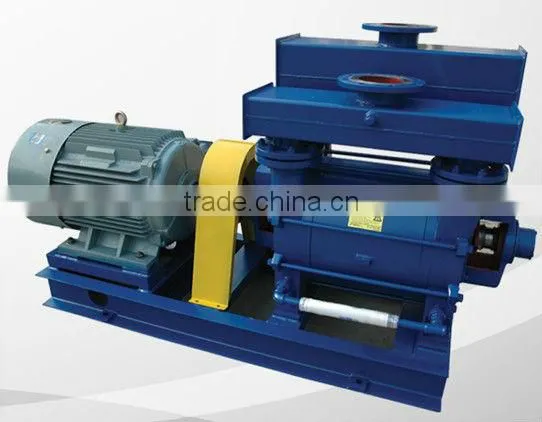

2BE1 Serise Paper Making Pump

2BE1 Serise Paper Making Pump thumbnail-1
2BE1 Serise Paper Making Pump photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Hi-sea
Model Number:
2BE1
Theory:
Vacuum Pump
Contact Supplier Request Quote Chat Now
Chongqing Hi-Sea Marine Equipment Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hi-sea
Model Number 2BE1
Theory Vacuum Pump
Structure Piston Pump
Usage Air Pump
Power Electric
Standard or Nonstandard Standard
Pressure High Pressure

Specifications

Paper Making Pump:
1. Competitive price
2. ISO9000 provided
3. Long after sale service
4. Best quality

Paper Making Pump:

2BE1 series liquid ring vacuum pumps are the products with high efficiency and energy saving, which are manufactured by our company combining with the advanced technology of the imported products. These series pumps are single stage and single function structure and have many advantages. Such as: Structure is simple, easy to maintain and reliable operation and so on. They can used to the large of water drainage and load shock wave and other hard conditions. Compare to the SK, 2SK, SZ series water ring vacuum pumps are widely used in our country at present, 2BE1 series are the ideal replacement with high vacuum, low power, and reliable operation.
Main features:
1, All bearings adopt the imported products with Japanese NSK to ensure the precise orientation of impeller and high stability during the running.
2, The material of the impeller is welded with nodular iron or steel to ensure the high stability and increase the lifetime of the pump greatly during any harsh conditions.
3, The pulley (when the pump is driven by the belt) adopts standard high precise taper bushing pulley to keep the reliable running and increase the lifetime; Also it is easy to dismantle.
4, The coupling (driven directly) adopts standard high strength elastic product. The elastic element is made of polyurethane to keep the reliable operation and long lifetime of the pump.
5, The pump body is made of steel or stainless steel to increase the lifetime of the pump five times than normal material.
6, The shaft sleeve as the most easily damaged part, our shaft sleeve is made of stainless steel to increase the lifetime of the pump 5 times than normal material.
7, Special separator built-on the pump can save the space and reduce the noise efficiently.
8, All the parts are cast by the resin sands with great quality, no puttying. Keep the heat dissipation is the best.
9, The mechanical seals (optional) adopt the imported parts to fully ensure the pump in the long-running process without leakage.

Model Ultimate  pressure  hPa Rotary  speed  (r/min) Pumping  Speed
(m3/min)		 Motor    power
(kW)		 Transmission  type Motor  voltage
(V)		 Weight  kg Inlet  Diam
(mm)		 Outlet  Diam
(mm)
2BE1  103 33 1300 5 11 Belt 380 240 65 65
1450 5.8 11 Direct  coupling 380 240
1625 6.4 15 Belt 380 280
1750 7 15 Belt 380 280
2BE1  153 33 1100 7.5 15 Belt 380 350 100 100
1300 9 18.5 Belt 380 400
1450 10 18.5 Direct  coupling 380 400
1625 11 22 Belt 380 440
1750 11.9 30 Belt 380 500
2BE1  202 33 790 9.5 18.5 Belt 380 850 125 125
880 11 18.5 Belt 380 850
980 12 22 Direct  coupling 380 925
1100 14 30 Belt 380 945
1170 15 30 Belt 380 945
2BE1  203 33 790 14 30 Belt 380 995 125 125
880 16 30 Belt 380 995
980 18 37 Direct  coupling 380 1065
1100 20 45 Belt 380 1085
1170 21 45 Belt 380 1085
2BE1  252 33 558 20 30 Belt 380 1460 150 150
660 25 37 Belt 380 1515
740 28 45 Direct  coupling 380 1693
820 30 55 Belt 380 1645
880 33 75 Belt 380 1805
2BE1  253 33 560 28 45 Belt 380 1695 150 150
590 30 55 Belt 380 2190
660 35 55 Belt 380 2170
740 39 75 Direct  coupling 380 2215
820 43 90 Belt 380 2055
2BE1  303 33 466 43 55 Belt 380 2645 200 200
520 45 75 Belt 380 2805
590 52 75 Direct  coupling 380 3080
660 58 90 Belt 380 2925
740 62 110 Direct  coupling 380 3160
2BE1  353 33 390 55 75 Belt 380 3560 250 250
415 58 90 Belt 380 3665
464 65 110 Belt 380 3905
520 72 132 Belt 380 4040
590 81 160 Direct  coupling 380 4750
