Integrated LED Solar Aviation Obstruction Light

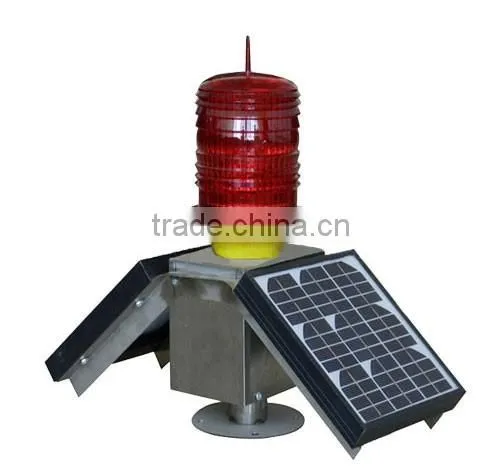

Integrated LED Solar Aviation Obstruction Light photo-1

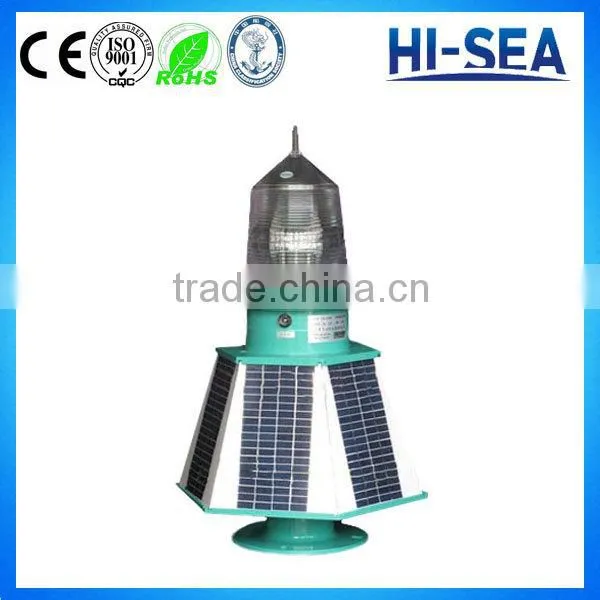

Integrated LED Solar Aviation Obstruction Light photo-2

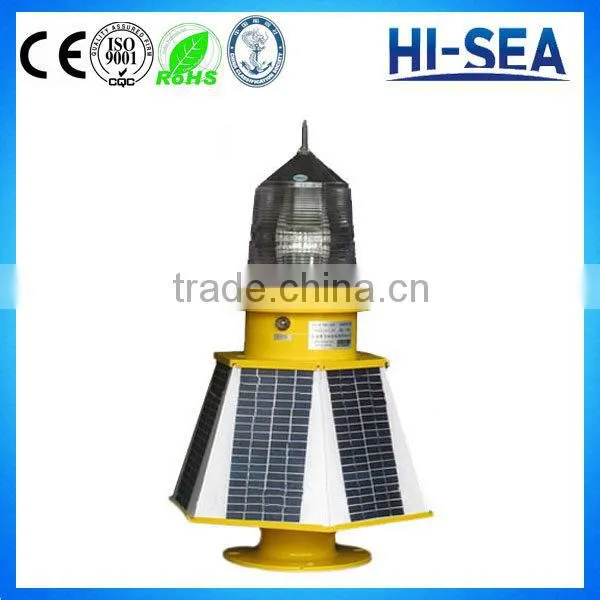

Integrated LED Solar Aviation Obstruction Light photo-3
US$ 50 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
Hi-Sea
Model Number:
HS-155B/C Solar Aviation Obstruction Light
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Chongqing, China
Brand Name Hi-Sea
Model Number HS-155B/C Solar Aviation Obstruction Light
Product Description

Integrated LED Solar Aviation Obstruction Light

obstruction light/aviation obstruction light/solar aviation obstruction light

HS-155B and HS-155C solar integrated navigation mark light is composed by Fresnel plastic lens, 5 sides solar panels, high performance and maintenance-free battery pack, multilayer high brightness LED integrated light source, microcomputer controller flash, daylight valve switch, marine grade aluminum alloy chassis, sealing battery box, power supply control switch, charger and charging connection port, navigation mark telemetering terminal interface and so on.

Flash control circuit of this lamp has been programmed to generate 256 kinfs of flash character signals so that the user can pull the code according to the required signal character. GPS module synchronization flash is avaiable to the lamp.

This solar integrated navigation lamp meets the national requirements of energy saving and emission reduction and green envirionmental protection.

Application
Applicable to inland and coastal buoys, shore beacons and lighthouses; transmission tower (electtric power, communication, microwave etc.), chimney (thermal power plant, coking plant, chemical plants etc.), high-rise buildings, bridges, large port machinery, large-scale engineering machinery, wind turbines and otheroccasions needing warning of aviation.


Techinical Parameters

Model
HS-155B
HS-155C
Working Voltage
12v
Quiescent Current
<5mA
Color
Red, Green, Yellow, Blue, White
Peak Luminous Intensity
4060cd
2080cd
Light Horizontal Output
≥8°(in accordance with IALA standard)
Solar Cell Power
24W (6 sides)
18W(6sides)
Battery Capacity
24AH(battery pack)
12AH(battery pack)
LED Integrated Light Source
100,000 hours service life (flash time up to 20 years)
Continous Luminous Time
≥70 days
≥50 days
Lens Material
UV resistant polypropylene acrylic acid
Protection Grade
IP68
Working Temperature
-40℃~+70℃
Relative Humidity
100%(condensation)
Daylight Switch Sensitivity
250±50Lx
Outline Dimension
Φ410×720mm
Φ410×650mm
Installation Dimension
4holes-14/Φ195mm
Weight
18.1kg
11.2kg
Visual Range
12.8nm
8.1nm
Vertical Divergence Angle
360°
Detailed Images

Solar LED Buoy Light Navigation Obstruction Mark Light

Integrated LED Solar Aviation Obstruction Light

Solar Aviation Obstruction Light
