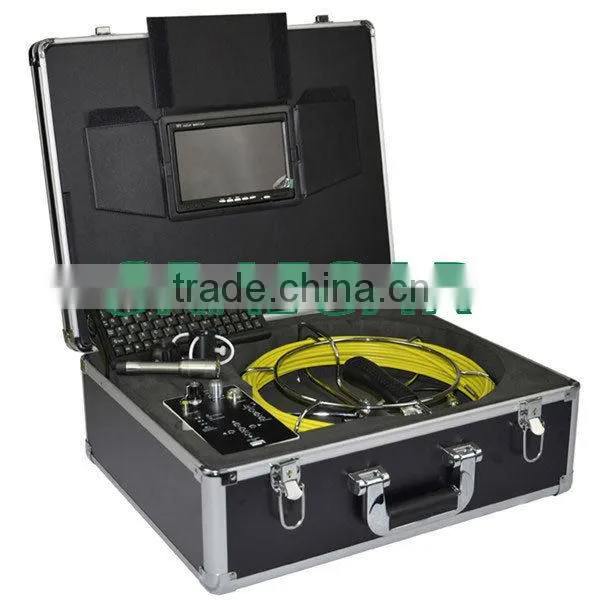

Pipe Inspection Camera Monitor Microphone 6MM Color Video Camera Drain and Sewer Inspection System With Keyboard

Specifications

Pipe Inspection Camera Monitor Microphone 6MM Color Video Camera Drain and Sewer Inspection System With Keyboard

pipe inspection with video DVR Pipe Inspection Cameras 6MM Color Video Camera Drain and Sewer Inspection System With Keyboard

6MM Color Video Camera Drain and Sewer Inspection System With Keyboard



MODEL NO.710DK5



SUPPORT CUSTOM-MADE, accessaries changeable.

Product features:

1 Camera:

5.5mm diameter size.

4 pcs Leds

Stainless housing.

2 Monitor:

7 inch big& cool monitor.

High-definition:720 X 576

SD card icon and SD capacity osd.

3 DVR:

Video&audio record.

Leds of camera adjustable.

Power light flash before power off in case of video lost.

4 keyboard:

Video text input.

Job record.

5 Battery work time: ≥260minutes.

6 AL case: portable

7 Skids: support the camera in the middle of pipe.

Packing list:

1 5.5mm camera

2 20-80m cable

3 7 inch Monitor

4 DVR

5 Keyboard

6 Li-on Battery

7 Charger

8 Skid

9 AL Case

Specification:

Camera
1 Camera size: Φ5.5mm	2 Camara power supply: DC 3.3V
3 Stainless steel shell /sapphir glass	4 Camera work current: 100MA
5 Sensor size: 1/4 inch	6 Waterproof: IP67
7 Total Pixels: PAL: 720X576 NTSC: 720X480	8 Camera light: 4 PCS white LEDS, illumination adjustable
9 View angle: 60°	10 Work temperature: -10°C-50°C
DVR
1 DVR Total Pixels: 720X576 (D1)	2 Movie format: AVI
3 DVR work current: 200MA DVR power supply: 12V	4 Microphone audio record
5 Storage medium: SD card (max 32G)	6 Stereo earphone output
7 Dagital clock and dagital calendar	8 USB keyboard input
9 Picture snap and movie record	10 Max edit page: 4 pages
Monitor
1 Monitor size: 7inch TFT color monitor	2 Up,down,left,right adjustable
3 Monitor Total Pixels: 1440 X 234	4 16:9&4:3 model
5 Monitor power supply: DC 12V	6 Sunshade include
7 Osd language: English	8 Waterproof connector
Keyboard
1 Keyboard size: 323X130X11mm	2 Text edit line: PAL 28 letter 15 line NTSC 26 letter 12 line
3 Language: English	4 Max edit page: 4 pages
Cable wheel
1 Cable size: Φ320XH110mm	2 Fiberglass diameter: 4.8mm
3 Wire material: fiberglass rod	4 Fiberglass color: yellow/blue
5 Cable length: 20-80 changeable	6 Wheel material:stainless steel
Microphone
1 Frequency respose: 20~20KHz	2 Line Length: 1m
Li-on battery
1 Charge time: 5hours ; Work time: ≥260minutes	2 12V 4000MAH battery
Skid
Φ12 X 30mm
Charger
1 input: AC100-240V~50/60Hz	2 Output: DC 12V/1000MA
3 DC plug diameter :2.1mm
AL Case	ABS Case
1 Material:fire board+Aluminum alloy	1 Material:engineering plastic
2 Size: L480XW415XH200mm	2 Size: L520XW435XH200mm
3 Color:black	3 Color: orange/green/black
