Waterproof plumbing sewer pipe inspection camera Systems water well air duct push rod inspection camera
Can be used in:Pipe, Pipeline, Drain, Sewer Lines, Ducts, Tanks, Water Leak, Exhaust Vests, Tubes, Chimneys, Industrial Lines, Confined Space Investigation, Heat and Colling Lines, Attics, Wells, Underwater, Maintenance of the Plumbing and Wiring Behind Walls, Channel and Drain Lines, Sewage Tanks, Ventilation Shafts, Civil Engineering, Electrics Installation Shafts, Cavities, Rescue Areas.
PUSH RODE INSPECTION CAMERA | |
Camera Size |
Φ 40mm self-level camera head |
Camera Material |
Stainless steel and Sapphire lens |
Sensor Size |
1/4 inch |
Total Pixels |
PAL:720*576 NTSC:720*480 |
View Range |
120 ° |
Illumination |
42PCS white LEDS |
Waterproof Level |
IP68 |
Skids |
90/140/220mm |
Camera Power Supply |
DC 12V |
Operating Temperature |
-10°C to +50°C |
CABLE | |

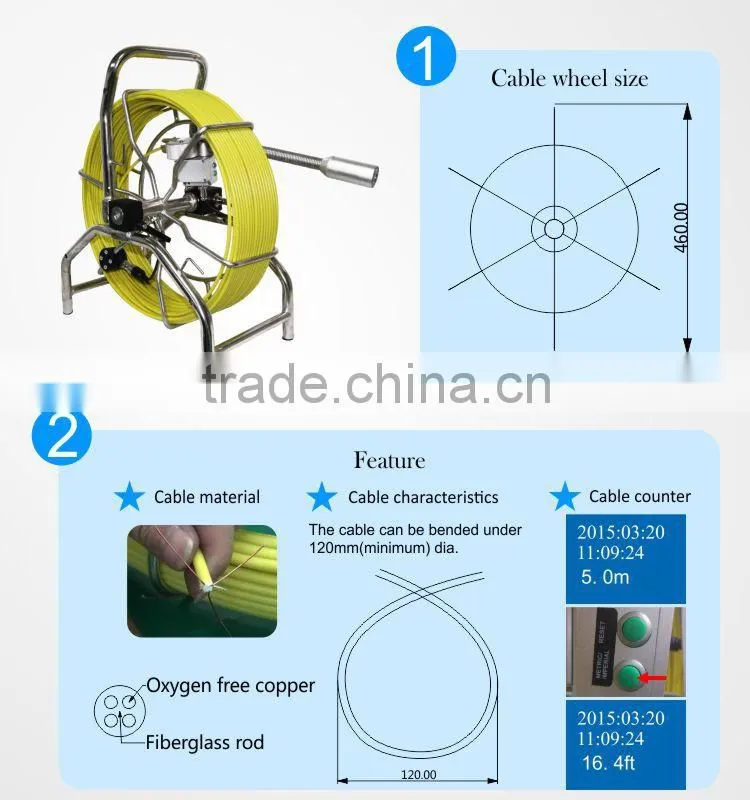

Cable Size |
460(L)X270(W)X560(H) |
Wire Material |
Fiberglass rod |
Fiberglass Length |
60m/80m |
Fiberglass Diameter |
Φ7mm |

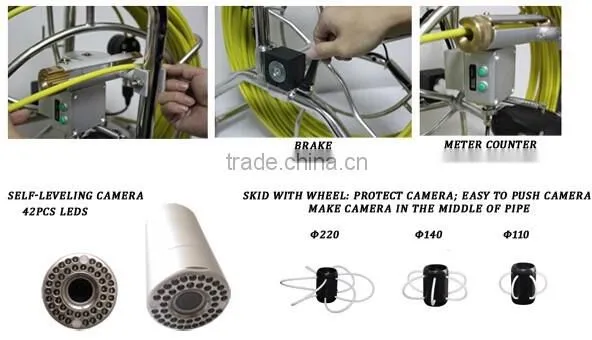

Function |
Meter counter and brake(stop the cable moving) |
Fiberglass Color |
Yellow |
HANLD HELD MONITOR | |
Monitor Size |
7 inch TFT color monitor |
Pixels |
1440*234 |
OSD Language |
English |
Up, down left, right adjustable | |
16:9 & 4:3 model | |
Storage Medium |
8GSD card (max 32G)+card reader |
Digital Clock and Digital Calendar | |
Battery Level Display | |
Total Pixels |
720*567(D1) |
Picture Sanp and Movie Record | |
Movie Format |
AVI |
Microphone Audio Record | |
Battery |
12V 4000MAH rechargeable li-ion battery(18650) |
Used Time |
>260minutes |
CHARGER | |
Input |
AC100-240V~50/60Hz |
Plug Diameter |
2.1m |
PACKING
2 cartons
20*48*41cm
54*36*65cm
Gross weight:15KG
