Marine Bronze Male Screw Thread Angle Safety Valve

Marine Bronze Male Screw Thread Angle Safety Valve thumbnail-1
Marine Bronze Male Screw Thread Angle Safety Valve photo-1
US$ 20 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Safety
Pressure:
Low Pressure
Contact Supplier Request Quote Chat Now
Chongqing Hi-Sea Marine Equipment Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Safety
Pressure Low Pressure
Power Manual
Material Brass
Temperature of Media Normal Temperature
Media Other, Water,oil
Port Size DN10-DN25
Place of Origin Chongqing, China
Model Number CB907-1994
Brand Name HS
Application Other, Marine, water,oil

Angle Safety Valve

Marine Bronze Male Screw Thread Angle Safety Valve CB907-1994:

1.Design standard:CB907-1994.

2.End standard:CB56-80.

3.End type:Thread.

4.DN:10mm-25mm.

5.Main material:

  • Body/Bonnet:ZQAL9-2;
  • Seat:QAL9-2;
  • Disc:QAL9-2.

6.Application:Sea water piping,fresh water piping and oil piping.

7.Function:Such valves are used for pressure control.

8.Fundamental dimensions of  Marine Bronze Male Screw Thread Angle Safety Valve:

 DN

PN

Flange connection dimension

Height

Structure length

 mm

 Mpa

M/mm

H/mm

L/mm

 10

0.1~0.25

M22x1.5

 138

 40

 0.25~0.6

 0.6~0.9

 0.9~1.2

 140

 1.2~1.6

 1.6~2.5

 M27x1.5

 146

 42

 2.5~3.2

 149

 15



0.1~0.25

 M30x2

 148

 48

  0.25~0.6



 0.6~0.9



 0.9~1.2

 155

 1.2~1.6

1.6~2.5

 M36x2

 162

 50

  2.5~3.2

 20



0.1~0.25

 M36x2

 170

 55



 0.25~0.6

  0.6~0.9



 0.9~1.2

 1.2~1.6

1.6~2.5

 M39x2

 176

 60

 2.5~3.2

 186

25



0.1~0.25

 M42x2

 190

 60

  0.25~0.6

  0.6~0.9

 0.9~1.2



 1.2~1.6



 197

 1.6~2.5

 M48x2

 203

 67

  2.5~3.2

 210

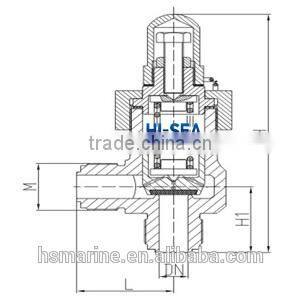

9.Drawing od  Marine Bronze Male Screw Thread Angle Safety Valve:

Marine Bronze Male Screw Thread Angle Safety Valve

10. Certificate available:

Marine Bronze Male Screw Thread Angle Safety Valve
