Ultrasonic Thickness Meter TM-8811,Ultrasonic Thickness Tester,Ultrasonic Thickness Gauge, Thickness Meters, Thickness Gauge

Ultrasonic Thickness Meter TM-8811,Ultrasonic Thickness Tester,Ultrasonic Thickness Gauge, Thickness Meters, Thickness Gauge thumbnail-1
Ultrasonic Thickness Meter TM-8811,Ultrasonic Thickness Tester,Ultrasonic Thickness Gauge, Thickness Meters, Thickness Gauge photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Graigar
Model Number:
TM-8811
Contact Supplier Request Quote Chat Now
Shenzhen Graigar Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Graigar
Model Number TM-8811

Specifications

paint thickness gauge, ultrasonic thickness gauge, coating thickness gauge, thickness tester, thickness meter, TM-8811

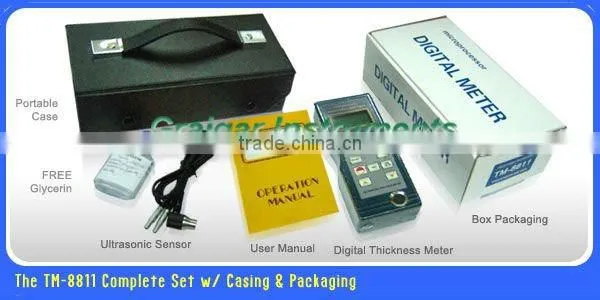

Ultrasonic Thickness Meter TM-8811

Application:
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks etc. in industries of petroleum, shipbuilding, and machine manufacturing.

Specifications:
Measuring range: 1.5-200mm, 0.06-8inch
Operating principle: ULTRASONIC
Materials measured: any hard materials, including steel, cast iron, aluminum, red opper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials
Sound velocity: 500-9000m/s
Lower limit steel pipes: 15x2.0mm, 20x3.0mm determined by the transducer
Calibration block: included
Resolution: 0.1mm
Accuracy: +/-(0.5%n+0.1)
Power supply: 4x1.5V AA(UM-3)battery
Battery indicator: low battery indicator
Operating conditions: 0-+45C(32F-104F), ≤90%RH
Dimensions: 160x68x32mm (6.3x2.68x1.26 inch)
Weight: 208g / 0.46lb (not including battery)



Ultrasonic Thickness Meter TM-8811,Ultrasonic thickness tester,Ultrasonic thickness gauge, thickness meters, thickness gaugeUltrasonic Thickness Meter TM-8811,Ultrasonic thickness tester,Ultrasonic thickness gauge, thickness meters, thickness gaugeUltrasonic Thickness Meter TM-8811,Ultrasonic thickness tester,Ultrasonic thickness gauge, thickness meters, thickness gauge
