Home > Electrical & Electronics > Sensor > Pressure Sensor > ETCR035AD-Clamp AC/DC Current Sensor

ETCR035AD-Clamp AC/DC Current Sensor

Name: ETCR035AD-Clamp AC/DC Current Sensor
Brand: ETCR
SKU: 130820077

ETCR035AD-Clamp AC/DC Current Sensor thumbnail-1

ETCR035AD-Clamp AC/DC Current Sensor thumbnail-2

ETCR035AD-Clamp AC/DC Current Sensor photo-1

ETCR035AD-Clamp AC/DC Current Sensor photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ETCR

Model Number:

ETCR035AD

Contact Supplier Request Quote Chat Now

Shenzhen Graigar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ETCR

Model Number ETCR035AD

Usage Magnetic Sensor

Theory Current Sensor

Output Analog Sensor

ETCR030D1-Clamp DC Leakage Current Sensor

PRODUCT DESCRIPTION

. Introduction

ETCR035AD Clamp AC/DC Current Sensor is specially designed to test current and leakage of circuit below AC/DC600, with small size, high accuracy, good stability. It is widely applied in AC current leakage, current, power and energy measurement with high precision and small phase error of electricity, communications, meteorology, railway, oilfield, construction, measurement, scientific and research teaching unit, industrial and mining enterprises, which can be connected to a variety of high precision digital multi-meter and data recorder.

Technical Specification

Function	AC/DC current detection
Power Supply	Battery, 6LR61 9VDC (can connect external power supply)
Test model	Clamp CT, Non contact measurement, non-exposure of meter of the jaw

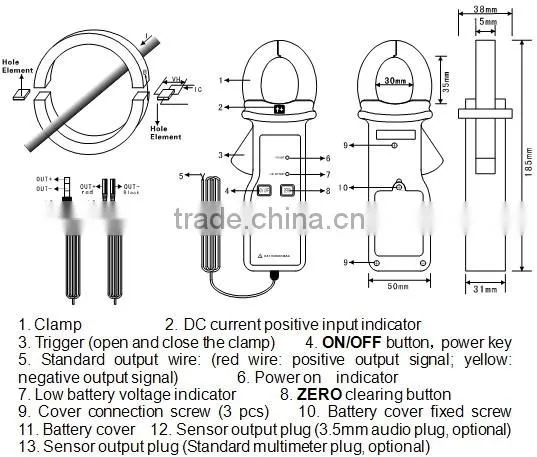

Dimension	185mm×70mm×38mm
Clamp Size	30mm×35mm
AC Frequency	45~400Hz
Range	AC/DC 0.0A-600A
Resolution	0.1A
Accuracy	1%(23c±3c,below 70%RH)
Output	1mV/A
Frequency Response	10KHz(-3dB)
Zero-Adjustment	Yes
Lead length	2m
Wire Position	Detected wire should be put on the centre of the jaw
Circuit Voltage	Lower than AC600V
Power on/off	Push ON/OFF key
Auto Power-off	5 Minutes after power on, it will power off automatically to lower the power consumption
Battery Voltage	Indicating the battery voltage is lower then 7.2V.Then the battery have to be changed
Weight	180g(including the battery)
Consumption	10mW
Auto Power-off	5 Minutes after power on, it will power off automatically to lower the power consumption
Working environment	-20c-50c below 80%rh
Storage environment	-10c-60c below 70%rh
Max error refer to environment	-10c-0c or 40c-50c,Error will increase max to 1%rdg
Insulation strength	AC2kV/rms (between core and shell)
Safety rules	IEC1010-1, IEC1010-2-032, Pollution degree 2 CAT iii(600V)
Accessary	Sensor;1PC; Battery (6F22 9V): 1PC
