Marine HVAC Fan Coil

Specifications

Fan Coil :

Marine HVAC Fan Coil

Application:

The fan coil is the complement product for marine air-conditioner system.It has the characteristics of compact structure,Little virbration,low noise and easy installation.

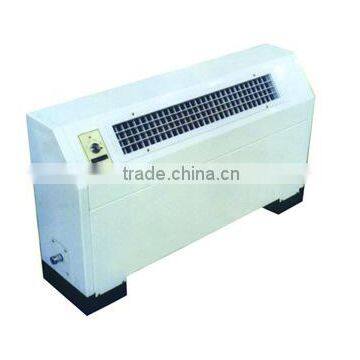

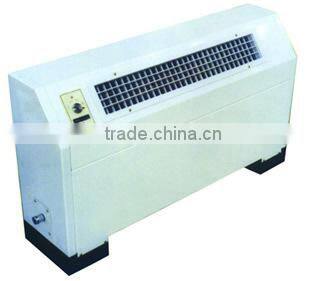

CFP-LM vertical surface fan coil and CFP-WA horizontal concealed fan coil is mainly composed of air filter,air heater-exchanger,low noise centrifugal fan,knob-type speed regulation swith and electric control box.

CFP-LG vertical fan coil is mainly composed of air filter,air heater-exchanger,low noise centrifugal fan,automatic swinging air damper,LCD touching control screen and elettric control box.

Installation:

1.When lifting the fan coil for installation,care must be taken to avoid damage or deformation of the casing by coillision.

2.The fan coil is installed on the base,For the base bolt hole dimension,see the outline dimension drawing of the fan coil,When installing, Between the fan coil  bottom and the base should be installed damper cushion,Its four sides should be left with some space for installation and maintanence.With the space at the operation side bigger than 500mm to fancilitate the filter screen to be pulled out for cleaning.

3.Connect the chiled(hot) water or steam inlet and outlet pipes with the fan coil downpipe must have a 30~40mm water seal.

4.All the chilled water pipelines should be wrapped with a 20mm-thick rubber-cotton insulation layer,Tightened with white cloth strips externally.

Main technical parametres:

Dimensions:

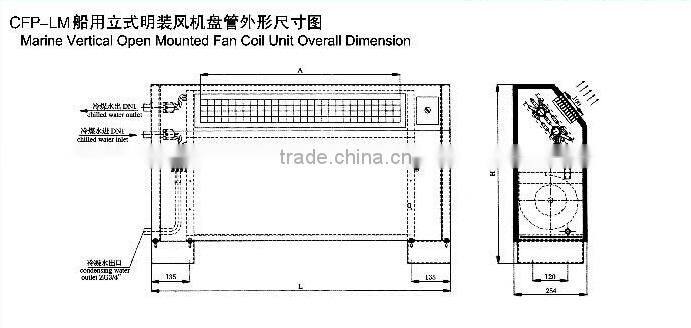

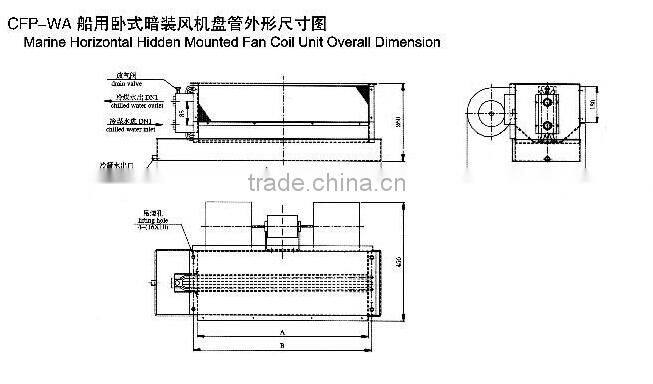

 Drawing:
