Specifications
Angle Stop Valve:1. Diameter: DN15 mm
2. Pressure: 32 Mpa
3. Media: Water, Oil, Gas, Steam
4. Certificate: ISO9001
Angle Stop Valve:
DN15 High Pressure Angle Stop Valve:
1. Brief Introduction:
(1). Model: J44Y, J44H, J47Y, J47H
(2). Suitable Pressure: 1.6 Mpa to 32 Mpa
(3). Suitable Temperature: ≤425°C
(4). Media: Water, Oil, Steam, Gas, Liquid
2. Dimensions:
Model |
Nominal Diameter |
Main Connection Size |
Outside Size |
||||||||
L |
D |
D 1 |
M |
D 2 |
b |
Z-d |
L O |
H |
H 1 |
||
AJ44H-320 |
3 |
60 |
70 |
42 |
M14×1.5 |
10 |
15 |
3-16 |
100 |
71 |
77 |
|
AJ44H-320 AL44H-320
|
6 |
60 |
70 |
42 |
M14×1.5 |
10 |
15 |
3-16 |
150 |
80 |
94 |
J44Y-160 |
10 |
90 |
95 |
60 |
M24×2 |
10 |
20 |
3-18 |
200 |
260 |
275 |
|
J44Y-160
|
15 |
105 |
95 |
60 |
M24×2 |
16 |
20 |
3-18 |
200 |
268 |
288 |
J44Y-320 |
10 |
90 |
95 |
60 |
M24×2 |
10 |
20 |
3-18 |
200 |
268 |
275 |
|
J44Y-320
|
15 |
105 |
105 |
68 |
M33×2 |
17 |
20 |
3-18 |
200 |
268 |
288 |
J44Y-160 |
25 |
120 |
102 |
68 |
M33×2 |
28 |
20 |
3-18 |
300 |
225 |
245 |
|
J44Y-160
|
32 |
135 |
115 |
80 |
M42×2 |
37 |
22 |
4-18 |
300 |
222 |
248 |
|
J44Y-160
|
40 |
165 |
165 |
115 |
M52×2 |
47 |
28 |
6-26 |
350 |
265 |
300 |
|
J44Y-160
|
50 |
190 |
165 |
115 |
M64×3 |
59 |
32 |
6-26 |
400 |
303 |
345 |
J44Y-320 |
25 |
120 |
115 |
80 |
M42×2 |
35 |
22 |
4-18 |
300 |
225 |
245 |
|
J44Y-320
|
32 |
135 |
135 |
95 |
M48×2 |
41 |
25 |
4-22 |
300 |
222 |
248 |
|
J44Y-320
|
40 |
165 |
165 |
115 |
M64×3 |
58 |
32 |
6-26 |
350 |
265 |
300 |
|
J44Y-320
|
50 |
190 |
200 |
145 |
M80×3 |
70 |
40 |
6-29 |
400 |
303 |
345 |
3. DN15 High Pressure Angle Stop Valve Working Theory Picture:

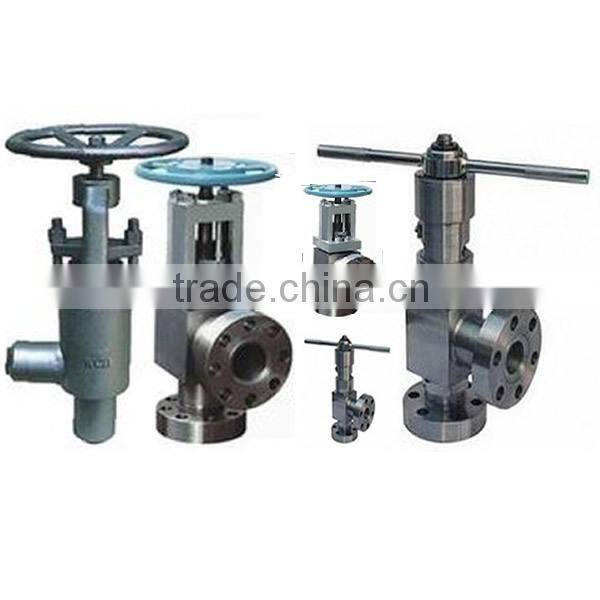

4. DN15 High Pressure Angle Stop Valve Sample Picture:
