Specifications
Flange Check Valve:1. Valve Type: Ball Check Valve
2. Diameter: 200-1000 mm
3. Pressure: 1.0-1.6 Mpa
4. API, GB, DIN
Flange Check Valve:

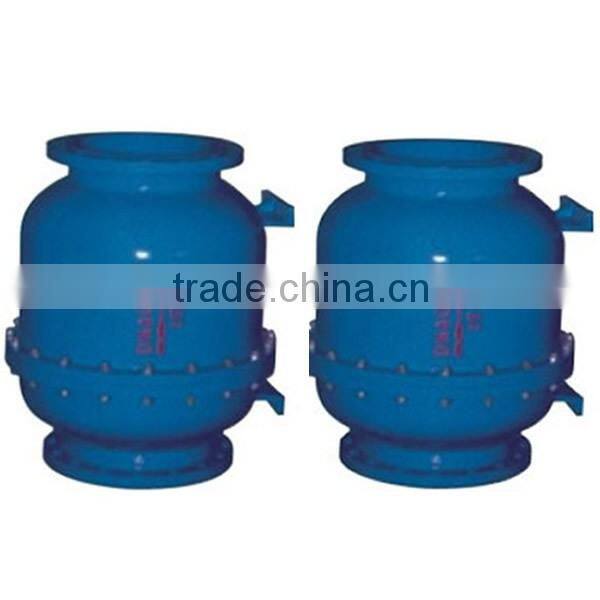

Steel Ball Type Flange Check Valve:
1. Product Detailed Information:
(1). Model: HQ45X
(2). Nominal Pressure: 1.0-1.6 Mpa
(3). Nominal Diameter: 200-1000 mm
(4). Suitable Media: Water, Weak Corrosive Fluids
(5). Applicable Temperature: 0-80 degree
(6). Flange Standard: GB/T 17241.6 GB/T 9113
(7). Test Standard: GB/T 13927 AP1598
2. Material:
Valve Body: Cast Iron, Ball Iron, Cast Steel
Valve Clack: Cast Copper, Stainless Steel
Valve Seat: Copper, Stainless Steel
Spring: Stainless Steel
3. Specification:
Steel Ball Type Flange Check Valve External Size | ||||||||||||
Nominal Diameter |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
700 |
800 |
900 |
1000 |
L(mm) |
550 |
650 |
698 |
781 |
914 |
978 |
978 |
1295 |
1448 |
1600 |
1760 |
1900 |
H(mm) |
510 |
570 |
640 |
715 |
815 |
825 |
980 |
1155 |
1260 |
1350 |
1660 |
1700 |
Connection Size |
Flange Connection Size PN1.0MPA Standard GB4216.4-84; PN1.6MPA Standard GB4216.5-84 |
|||||||||||
4. Steel Ball Type Flange Check Valve Warehouse Picture:
