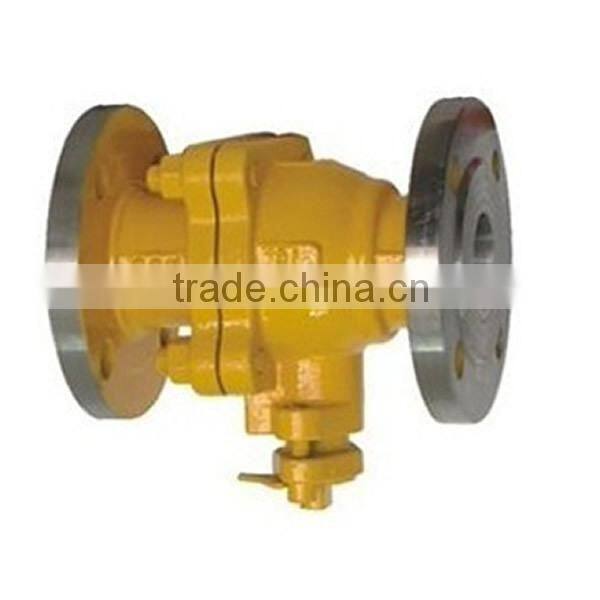

Help CenterFlange Stainless Steel Natural Gas Ball Valve
Related Products
Specifications
Natural Gas Ball Valve:1. Connection: Flange
2. Pressure: 1.6-4.0 Mpa
3. Diameter: DN15-150 mm
4. Advantage: OEM, ODM
Natural Gas Ball Valve:
Flange Stainless Steel Natural Gas Ball Valve:
1. Product Brief Introduction:
(1). Model: Q41FN
(2). Design, Manufacture: GB/T12237-89
(3). Flange Connection: JB/T79-94,GB9113-2000
(4). Structure Length: GB12221-89
(5). Material: Stainless Steel
(6). Connection: Flange
(7). Flow Way: Bothway
(8). Drive Way: Hand Drive
(9). Medium: Natural Gas
(10). Application: Natural Gas Pipeline
2. Product Specification:
Remark: Nominal Pressure: 1.6 Mpa, 2.5 Mpa, 4.0 Mpa
DN |
L |
H |
D |
D1 |
D2 |
b |
f |
Z-φd |
D0 |
15 |
130 |
82 |
95 |
65 |
45 |
16 |
2 |
4-14 |
130 |
20 |
140 |
100 |
105 |
75 |
55 |
16 |
2 |
4-14 |
140 |
25 |
150 |
104 |
115 |
85 |
65 |
16 |
2 |
4-14 |
150 |
32 |
165 |
134 |
135 |
100 |
78 |
18 |
3 |
4-18 |
170 |
40 |
180 |
140 |
145 |
110 |
85 |
18 |
3 |
4-18 |
230 |
50 |
200 |
155 |
160 |
125 |
100 |
20 |
3 |
4-18 |
230 |
65 |
220 |
180 |
180 |
145 |
120 |
22 |
3 |
8-18 |
300 |
80 |
250 |
200 |
195 |
160 |
135 |
22 |
3 |
8-18 |
400 |
100 |
290 |
222 |
230 |
190 |
160 |
24 |
3 |
8-23 |
400 |
125 |
400 |
236 |
270 |
220 |
188 |
28 |
3 |
8-25 |
1100 |
150 |
400 |
295 |
300 |
250 |
218 |
30 |
3 |
8-25 |
1100 |
3. Flange Stainless Steel Natural Gas Ball Valve Vertical Way Picture:
4. Flange Stainless Steel Natural Gas Ball Valve Packing and Shipping:
