Spring Type Carbon Steel Boiler Valve
- Shanghai Port or Ningbo Port
- T/T Money Gram
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Control | |
| Pressure | Medium Pressure | Power | Manual | |
| Material | Other, Carbon Steel | Temperature of Media | Normal Temperature | |
| Media | Other, Steam, Water, Air, Non-corrosive substance | Port Size | DN150 mm | |
| Place of Origin | Chongqing, China | Model Number | N/A | |
| Brand Name | HS |
Product Description
Specifications
Boiler Valve:1. Pressure: 1.6 Mpa
2. Diameter: 32-150 mm
3. Connection: Flange
4. Advantage: OEM, ODM Service Accepted
Boiler Valve:
Spring Type Carbon Steel Boiler Valve:
1. Product Brief Introduction:
(1). Material: Carbon Steel
(2). Nominal Diameter: DN32-DN150 mm
(3). Pressure: Normal Pressure, 1.6 Mpa
(4). Model: A47H-16
(5). Media: Steam, Water, Air, Non-corrosive substance
(6). Spare Part: Spring
(7). Connection Way: Flange
(8). Structure Way: Spring Type
(9).Temperature: Less Than or Equal 425 Degree
2. Main Parts and Materials:
| Part Name | Material |
| Valve Body | WCB |
| Disc, Seat, Ring, Adjusting Valve, Guide Cover, Screw, Stem | 2Cr13, Stainless Steel |
| Bonnet, Stem, Wrench | WCB |
| Spring | 50CrVA, Spring Steel |

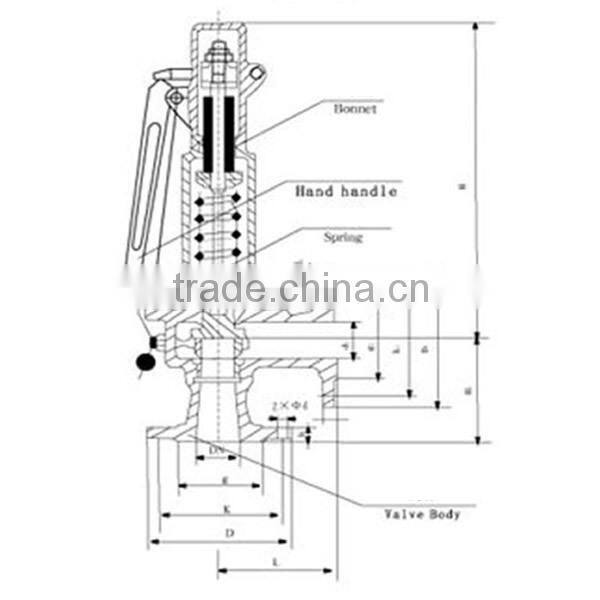

3. Spring Type Carbon Steel Boiler Valve Drawing Picture:

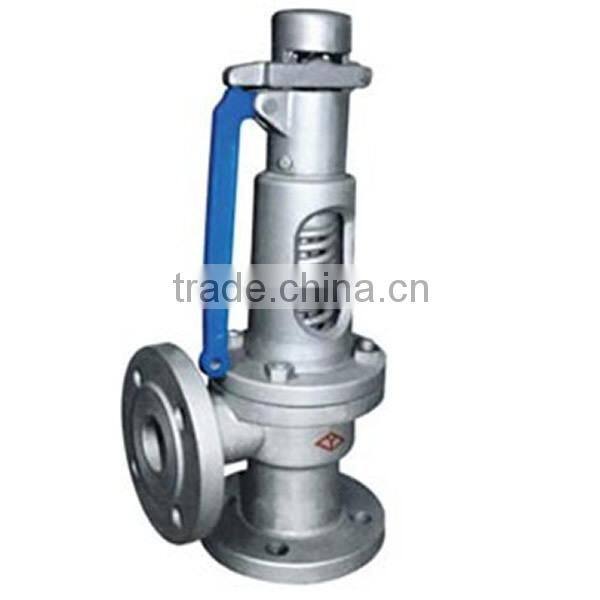

4. Spring Type Carbon Steel Boiler Valve Sample Picture:
5. Spring Type Carbon Steel Boiler Valve Shipping Picture:
