Laser Distance Meter GM100D Efinder Distance Tester
Negotiable
MOQ: 10 Parcels (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Graigar
Model Number:
GM100D
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Laser Distance Meter GM60D Rangefinder Distance TesterNegotiableMOQ: 10 Parcels -
Lase Distance Meter GM40D Rangefinder Distance TesterNegotiableMOQ: 10 Parcels
-
Smart Sensor AR861 Laser Range Finder Laser Distance Meter Measure 0.3-60mUS$ 100 - 120MOQ: 1 Piece
-
UNI-T UT396B New Professional Laser Distance Meters UT-396B 0.05-80m/120mNegotiableMOQ: 1 Piece
-
UNI-T UT396A Professional Digital Laser Distance Meters UT-396A 0.05-80mNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Graigar
Model Number
GM100D
Measurement Range
0.1m~100m(4 in ~197 ft)
Specifications
LaserDistance Meter GM100Drangefinder distance testerLaser Distance Meter GM100D
| Model | GM100D |
| Specifications & Functions | |
| Distance Range | 0.1m~100m (4 in ~328 ft) |
| Tilt measurement | Yes (±0.3º) |
| Temperature measurement | Yes |
| Accuracy of distance | ±1.5mm (±0.06inch) |
| Measuring units | m, in, ft, m², ft², m³, ft³ |
| LCD display | 2 inch large color screen |
| Software | mOS Visible software |
| Work principal | Photoelectric (not shake while measuring) |
| Measurement Speed | 3time/s |
| Waterproof & Dustproof | IP54 |
| History measurement record | 30 records |
| Laser type | 635nm, <1mW, ClassII |
| Battery Life | >15000 times |
| Key Life | >1 million times |
| Area, Volume Calculations | Yes. |
| Indirect measurement using Pythagoras | Yes. Support 2, 3 indirect measurements |
| Addition/Subtraction | Yes |
| Continuous Measurement | Yes |
| Triangle measurement | Yes |
| Auto horizontal measurement | Yes |
| Auto height measurement | Yes |
| Edit Measuring data Function | Yes |
| Min/Max Distance Tracking | Yes |
| Record lock/ Unlock/ | Yes |
| Display illumination and multi-line display. | Yes. Max 4 displays |
| Datum Option | Yes. Can choose Front edge or end piece edge as datum |
| Buzzer indication | Yes |
| Backlight display | Yes. |
| Auto Bias Technology | Yes. Support for external calibration |
| Error indicaton | Yes. Display error code |
| Personal setup | Level, Timer, Stacking out, Bubble, Beep, Measure unit, Time, Brightness of backlight, Off-set, Time format, Factory reset, Angle unit |
| Data Hold | Yes. Automatic |
| Data Clear | Yes |
| Battery indicaton | Yes. High, mid, low |
| laser Auto. switch-off | Yes. 30s without any operation |
| Auto instrument switch-off | Yes. 3minutes without any operation |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 60°C |
| CERTIFICATE | CE, ROHS, FCC, LVD for Laser (60825-1-2007), LVD (EN 61010-1-2001) |
| Warranty | 12months |
| GENERAL CHARACTERISTICS | |
| Battery Supply | Li-ion battery/1200mAh (Rechargable) |
| Product Color | Yellow+Black |
| Product Weight | 137g (Including battery) |
| Dimension | 125*55*29 mm |

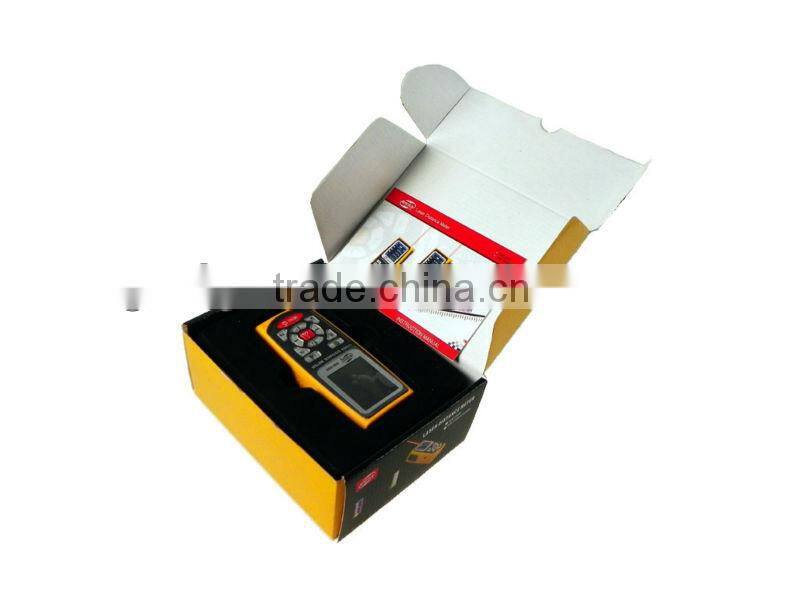

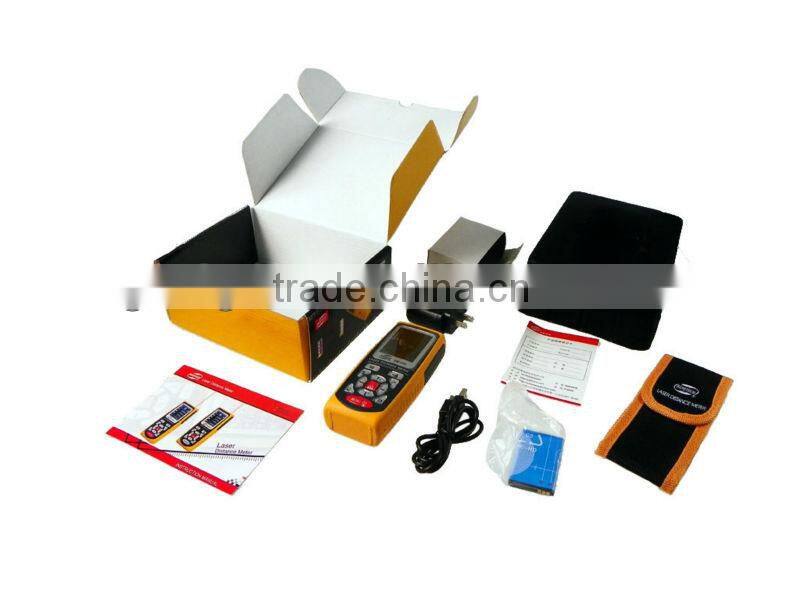

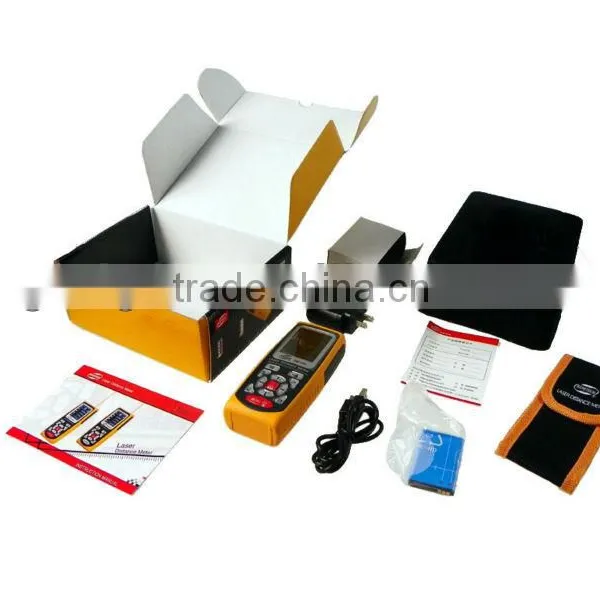

| Standard Accessories | Pouch bag, Li-ion battery, Battery charger , screwdriver |

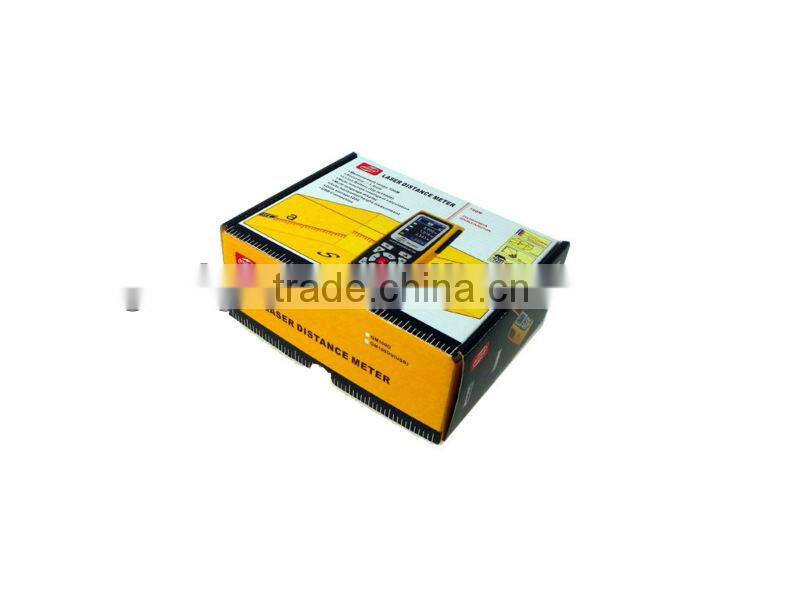

| Standard Packing Method | Gift box |
| Standard quantity per Outer Carton | 20 |
| Dimension for Standard Outer Carton | 38.7*30.2*41cm |
| Weight for Stander Outer Carton | 8.0kg |
