Multi-function Cable length Tester NOYAFA NF-868 Wire Tracker Cable ScannerBreakpoint Tester FOR RJ45/RJ11/BNC/USB
Product features:
1.Capable to test open circuit, short , cross connection, reverse connection and pairing connection and broken wire positioning .
2.To make a accurate determination of open circuit position (left, right or middle).
3.To quickly find the target wire or cable among the plenty of wires.
4.To perform crosstalk test on network cable for solving the potential problem of slow speed.
5.Capable to measure cable length such as network cable, coaxial cable, telephone cable and USB cable with three methods (M-S, M-R and OPEN).
6.A tester to perform cable tracking on exchanger or Router with power-on.
7.Utomatic delay power on-off and backlight function.
8.Self-test function shall automatically make compensation due to change of battery level and ambient temperature.
Specification of product:
|
Overall dimensions |
Main tester: 185×80×32mm Receiver:218×46×29mm Remote identifier: 107×30×24mm |
Display |
Dot matrix 128×64 (Effective visible area 56×40mm); |
Power supply |
Main tester receiver: 9V compound tandem cell; |
|
Testing cable types
|
STP/UTP 5E, 6E network , telephone , coaxial ,USB signal cable and common metal wires connected with alligator clips; |
Operating environment temperature/ humidity |
-10 ~ +60 / 20% ~ 70%; |
Testing device interface |

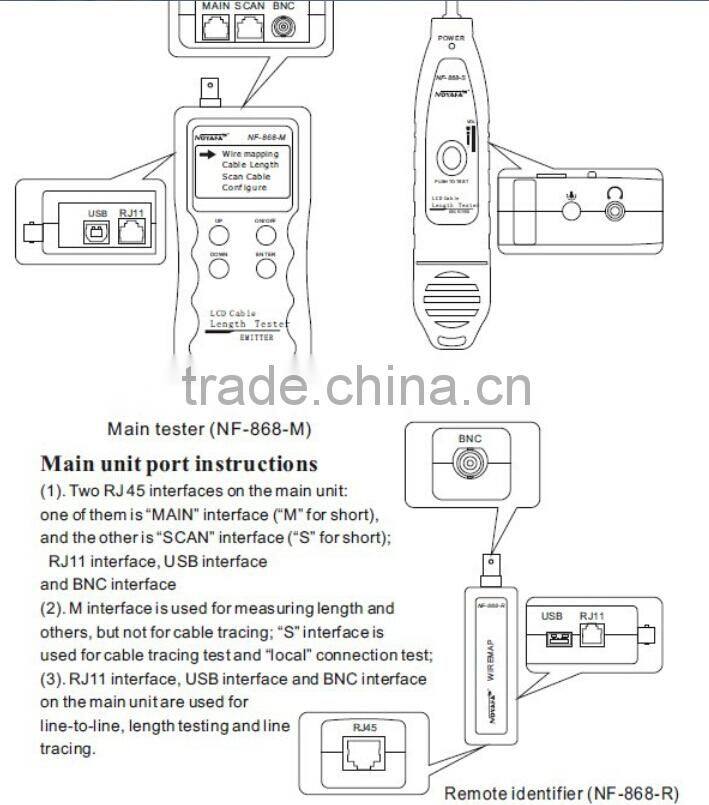

Main unit: RJ45 (M), RJ45 (S), loop interface, RJ11, BNC connector,USB B-type interface; Remote identifier: RJ45, RJ11, BNC connector, USB A-type interface; |
|
Length measurement
|
Range: 1-1200m; Calibration precision:2% (+/-0.5m,or+/-1.5 feet); (calibration; cable >10m) measurement precision:3% ((+/-0.5m,or +/-1.5 feet); (AMP, CAT 5E, 6E cable material) Display unit: meter, inch, yard; |
