NOYAFA NF8108-M Multifunction Network LAN Phone Cable Tester Meter Cable Hunting, Sorting and Circuit Status Testing.
US$ 35 - 55
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Noyafa
Model Number:
NF8108-M
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NOYAFA NF-8208 LCD Display Network LAN Wire Tracker Tracer Length TesterUS$ 35 - 70MOQ: 5 Pieces -
Project Monitoring Tester NOYAFA NF-705 Video Signal Generation and Analysis CCTV Camera Test Monitor PortableUS$ 200 - 250MOQ: 3 Pieces
-
Project Monitoring Tester NOYAFA NF-703 Video Signal Generation and Analysis CCTV Camera Test Monitor PortableUS$ 125 - 160MOQ: 3 Pieces
-
Project Monitoring Tester NOYAFA NF-701 Video Signal Generation and Analysis CCTV Security Surveillance Camera TesterUS$ 125 - 145MOQ: 3 Pieces
-
NOYAFA NF-868A Multifunction Troubleshooter Length Tester Phone Network LAN USB Coaxial Cable Troubleshooter Length Tester RedUS$ 50 - 75MOQ: 5 Pieces
Place of Origin
Guangdong, China
Brand Name
Noyafa
Model Number
NF8108-M
NOYAFA NF8108-M Multifunction Network LAN Phone Cable Tester Meter cable hunting, sorting and circuit status testing.
Item specifics:
Is_customized : Yes
Brand Name : Noyafa
Model Number : NF-909
Place of Origin : Shenzhen.China
Warranty : 1 Year

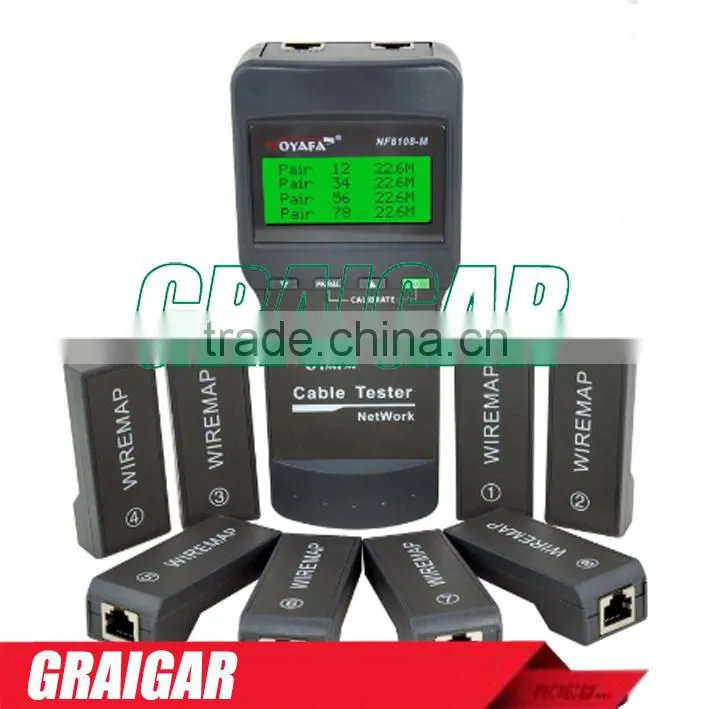

| LCD | 4 x 16 characters screen with backlight (valid visual field 61.6 x 25.2 mm) |
| Type of Testing Cable | STP/UTP twin twisted cable, coaxial cable, telephone line |

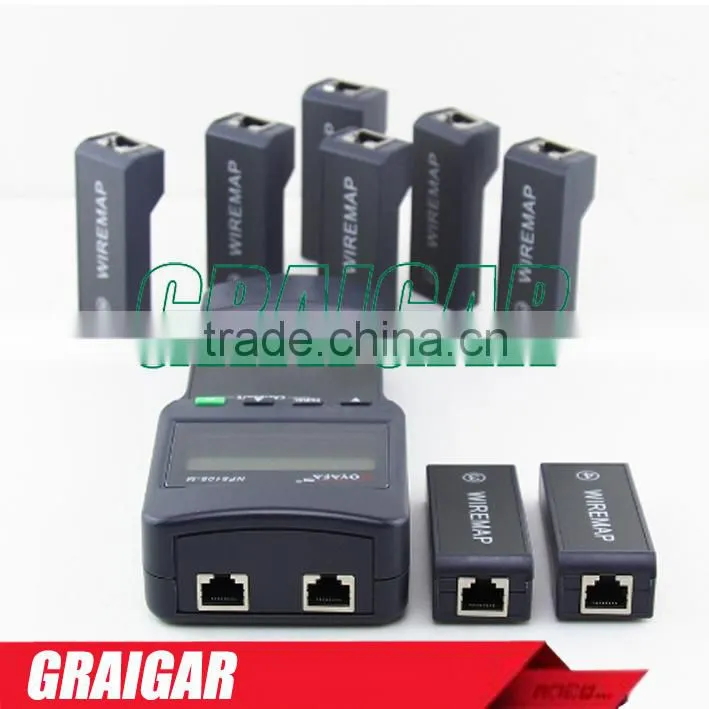

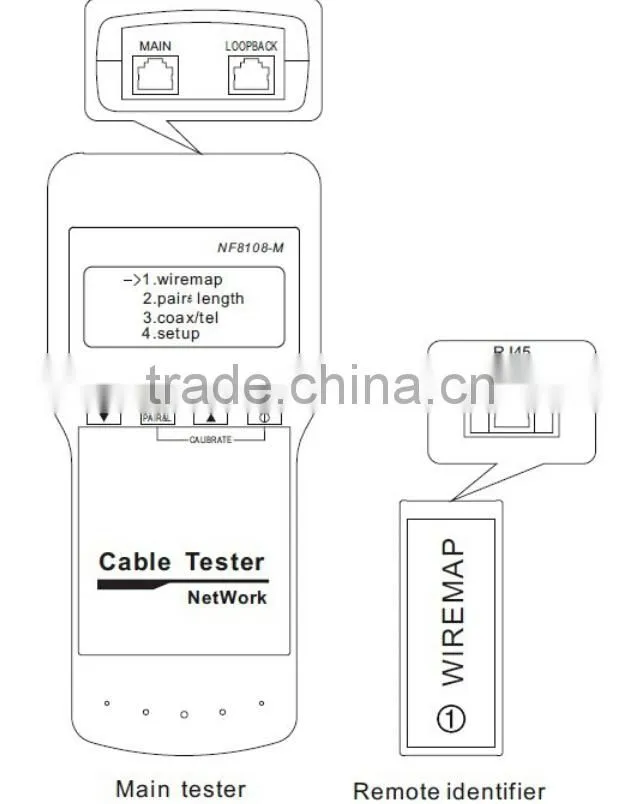

| Tester Port | Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R) |
| Length Measurement of Twin Twisted Cable | 1350M (31,200 FT) |
| Calibration accuracy | 3% (± 0.5m or ± 1.5 ft) (calibrating cable > 5 M) |
| Display | M or FT |
| Locating Cable | 8 far-end passive test jacks included |
| Working Ambient Temperature | -10 ~ 60 °C (14 ~ 140 °F) |
| Power | 2 x AA batteries (not included) |
| Item size | approx. 180 (L) x 80 (W) x 40 (D) mm (7.09' x 3.15' x 1.57' inch) |
| Item Weight | approx. 246 g (8.68 oz) |
| Length Calibration | is more than 5M |

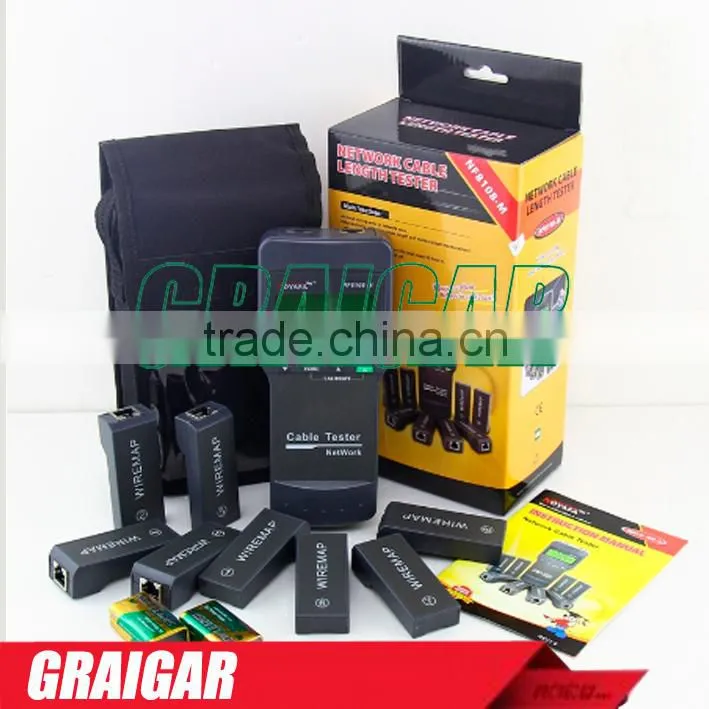

Included:
1 x Network Cable Tester
8 x Far-End Test Jack (ID1 ~ ID8)
1 x Instruction Manual
