Help CenterWear Resistant Dredger Ball Joints
Related Products
Dredger Ball Joints :

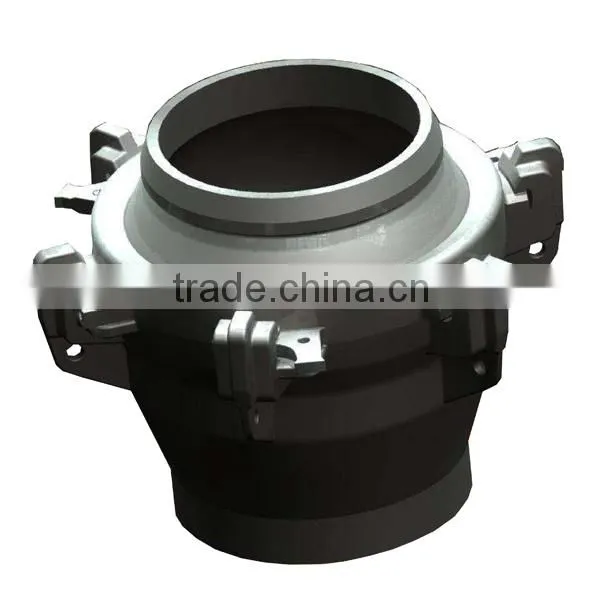

Wear Resistant Dredger Ball Joints :
Dredger ball joint main features:
1.Pipe through ball construction
2.Ball joint to be welded to the dredge pipe
3.Low maintenance required
4.Exchangeable case liner,Exchangeable rubber seal
5.Ball joint can be customized to client’s requirements
6.Easy assembly and dis-assembly
Materials used:
Ball: ZG30Mn
Case: ZG30Mn
Gland: ZG30Mn
Liner: ZG30Mn
Seal: NBR
Lock: Q345
Technical Specifications
Dredge pipe ID(mm) |
Width(mm) |
Hight(mm) |
Weight(kg) |
550 |
575 |
850 |
1150 |
600 |
650 |
900 |
1400 |
650 |
700 |
1000 |
1700 |
700 |
750 |
1050 |
2100 |
750 |
775 |
1100 |
2300 |
800 |
870 |
1150 |
3000 |
850 |
900 |
1200 |
3500 |
900 |
950 |
1300 |
4000 |
1000 |
1050 |
1400 |
4800 |
NOTE:We can provide customer with the best suitable solution and lowest cost , the dredge ball joints are designed in six different types, giving variations of tilting angle from 15 to 18 degrees and duties from 10 bar to 30 bar.

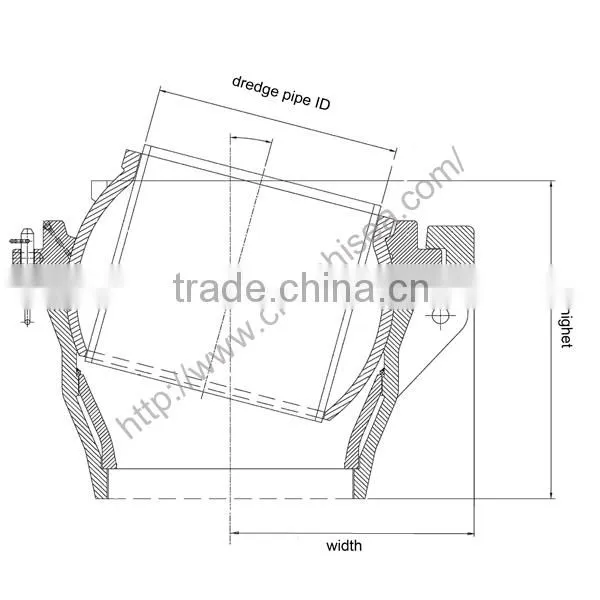

dredger ball joints drawing
