Hydraulic Dredge Cutter Head for Cutter Suction Dredger

Name: Hydraulic Dredge Cutter Head for Cutter Suction Dredger
Brand: Hi-sea
Availability: InStock

FOB Price

US$ 1 - 60,000 / Piece

1 Piece(Min. Order)

Port Shanghai Qingdao and other ports
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China		Brand Name	Hi-sea
Model Number	Client's requirements		Part	Other, Dredging Cutter Head

Product Description

Hydraulic Dredge Cutter Head for Cutter Suction Dredger

hydraulic dredge cutter head dredge cutter head for cutter suction dredger

Hydraulic dredge cutter head has strong digging force.The hydraulic dredge cutter head is one of key structure of cutter suction dredger.It can be used for slurry, mud, sand, compacted sand, gravel, rocks, and minerals.It is driven by hydraulic motor.Therefore,it has high work efficiency and low spill.The maintenance costs are lower.

Hi-sea hydraulic dredge cutter head has high quality and excellent design.customization as available according to your special requirements.For more information,please feel free to contact us.

Features:
High efficiency
Hydraulic motor
Strong dredging force
Low maintenance costs
Easy to repair

Parameters:

Inner dia.(mm)	Blade	Speed(r/min)	Max. shaft power(KW)	Suction pipe dia.(mm)	Working capacity(m3/h)	Matched pump water flow(m3/h)
650	5	0-34	15	150	80	360-450
830	5	0-34	35	250-300	150	750-800
955	5	0-35	62	350-400	350	1200-1400
1100	5	0-30	80	400	400	1500-2000
1330	5	0-30	101	400-450	650	2000-2500
1550	5	0-30	130	500-550	900	3000-3500
1750	5	0-32	251	600-650	1200	4000-4500
1830	5	0-30	375	600-650	1600	5000-6000

Note:Customization is available according to your special requirements.

Drawing of Hydraulic Dredge Cutter Head for Cutter Suction Dredger

Detailed Image

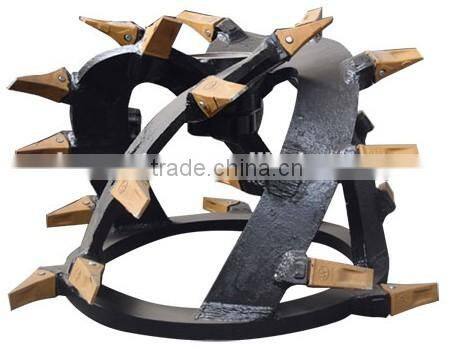

Hydraulic Dredge Cutter Head for Cutter Suction Dredger(1)

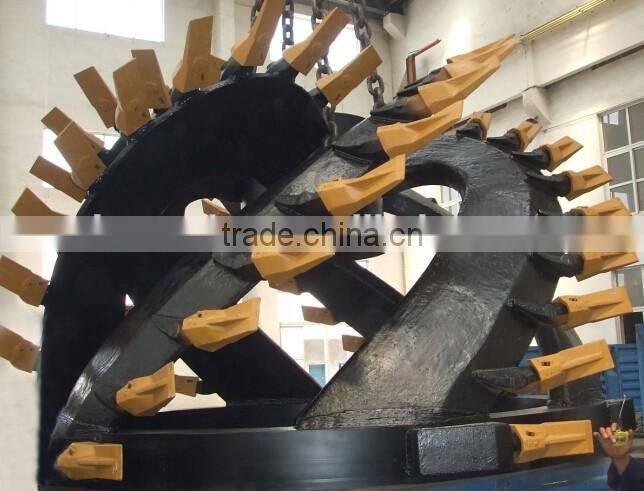

Hydraulic Dredge Cutter Head for Cutter Suction Dredger(2)

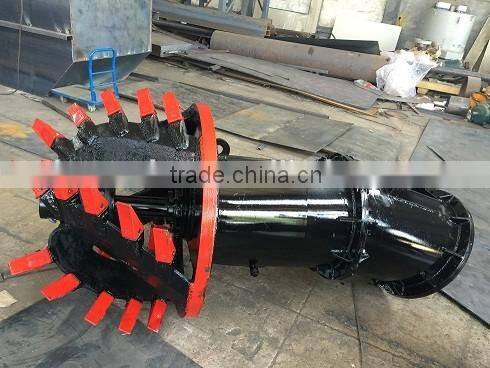

Hydraulic Dredge Cutter Head for Cutter Suction Dredger(3)

Certifications

RINA LR BV DNV

ABS NK CCS KR
