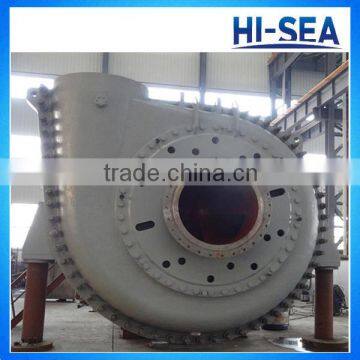

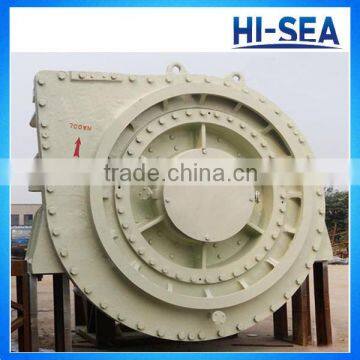

WN Series High Capacity Slurry,Mud,Sand,Gravel Centrifugal Dredge Pump
US$ 90,000 - 120,000
/ Piece
1 Piece(Min. Order)
- Shanghai Qingdao and other ports
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | Hi-sea | |
| Model Number | Client's requirements | Part | Other, Dredging Equipment |
Product Description
Product Description
WN Series High Capacity Slurry,Mud,Sand,Gravel Centrifugal Dredge Pump
dredge pump WN dredge pump high quality dredge pump
Our Dredge Pump’s structure is suitable to dredgers or dredging ships.The pumps has a single-stage,single-suction and double pump shell structure,which meets the dredging requirements.Therefore,The Single-walled Dredge Pump and Double-walled Dredge Pump are available. WN series of Dredge Pump is one new type of dredging pump.The WN series are designed according to the dredging requirements of rivers,lakes and seas and the imminent situation of reclamation work.
The series of mud pump has many characteristics,such as the overall structure,good dredging performance,long service life,high efficiency,reliable shaft seal and the comprehensive economic use,which is remarkable characteristic.This type of dredge pump can completely meet the requirements of dredgers.They are approved by CCS.
200 WN - 500 WN type dredge pump integral by a single pump shell, single stage single suction cantilever horizontal structure, press and gear box of the connection way all can provide two kinds of typical structure, namely take bracket type and pump box and type. Own bracket type lubrication way as the grease lubrication or thin oil lubrication.
600 WN - 1000 WN type dredge pump overall adopts double pump shell, single stage single suction cantilever horizontal structure, bring their own bracket, lubrication way as the forced thin oil lubrication. Double pump shell the safety and reliability of the design makes sheath always can use to close to wear through, and when sheath rupture, pump room will not fill.
The series of mud pump has many characteristics,such as the overall structure,good dredging performance,long service life,high efficiency,reliable shaft seal and the comprehensive economic use,which is remarkable characteristic.This type of dredge pump can completely meet the requirements of dredgers.They are approved by CCS.
200 WN - 500 WN type dredge pump integral by a single pump shell, single stage single suction cantilever horizontal structure, press and gear box of the connection way all can provide two kinds of typical structure, namely take bracket type and pump box and type. Own bracket type lubrication way as the grease lubrication or thin oil lubrication.
600 WN - 1000 WN type dredge pump overall adopts double pump shell, single stage single suction cantilever horizontal structure, bring their own bracket, lubrication way as the forced thin oil lubrication. Double pump shell the safety and reliability of the design makes sheath always can use to close to wear through, and when sheath rupture, pump room will not fill.
The main features of Dredge Pump are:
1.The overall structure Marine sex is good
A.Structure is simple,reliable
B.Easy to tear open outfit,easy maintenance
2.Dredging good performance
A.Cavitation performance is good
B.The flow ability,wide applicability
C.Performance curve steep drop
D.Can realize a variety of pump performance deployment
3.Wear-resisting performance is good,over-current components long life
4.Hydraulic loss is small,high efficiency,low power consumption
5.Shaft seal and reliable,and no leakage
6.Electric barring institutions,saves time and effort
A.Cavitation performance is good
B.The flow ability,wide applicability
C.Performance curve steep drop
D.Can realize a variety of pump performance deployment
3.Wear-resisting performance is good,over-current components long life
4.Hydraulic loss is small,high efficiency,low power consumption
5.Shaft seal and reliable,and no leakage
6.Electric barring institutions,saves time and effort
Specifications:
Note:20--Discharge Diameter(mm) WN--Model D--Low head Q--Submersible pump
The size can be customized according to customers'requirements.

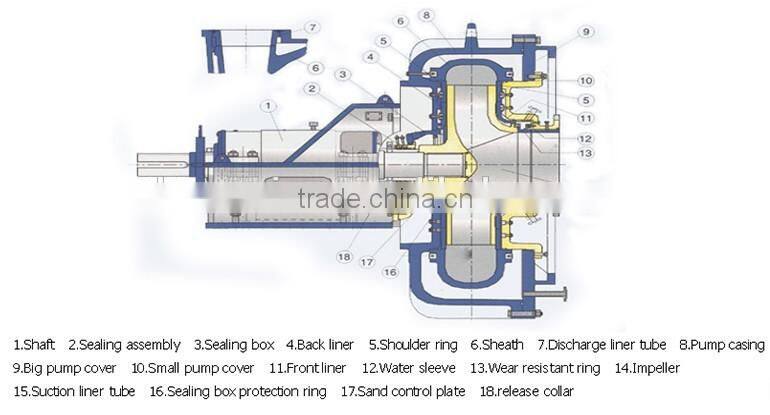

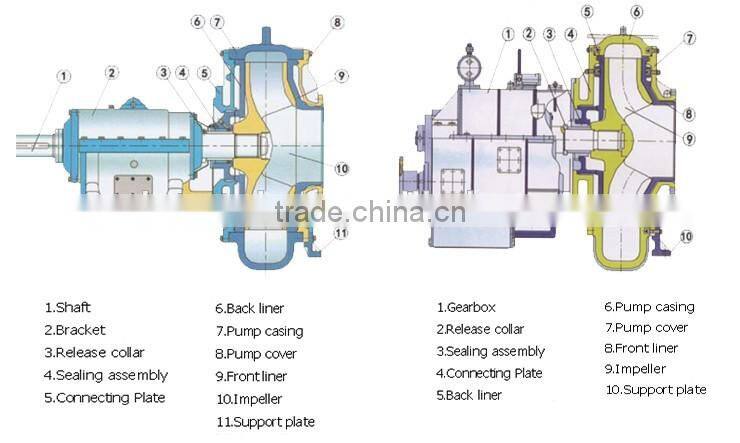

Construction Sketch of 200WN-500WN Dredge Pump
Construction Sketch of 600WN-1000WN Dredge Pump

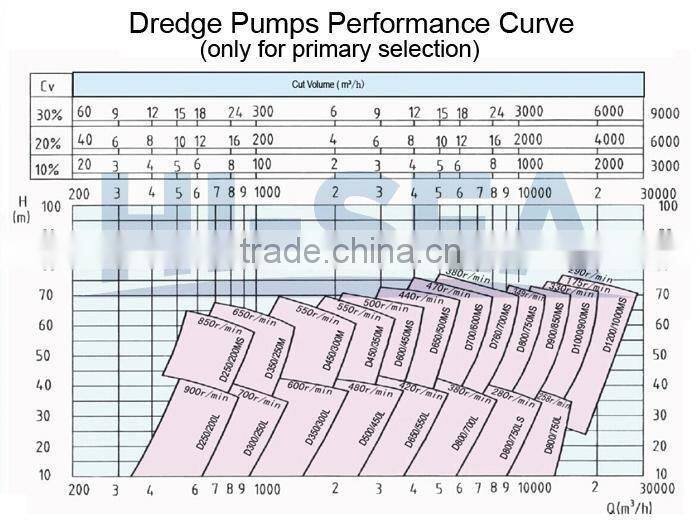

Dredge Pump Performance Curve
Detailed Image

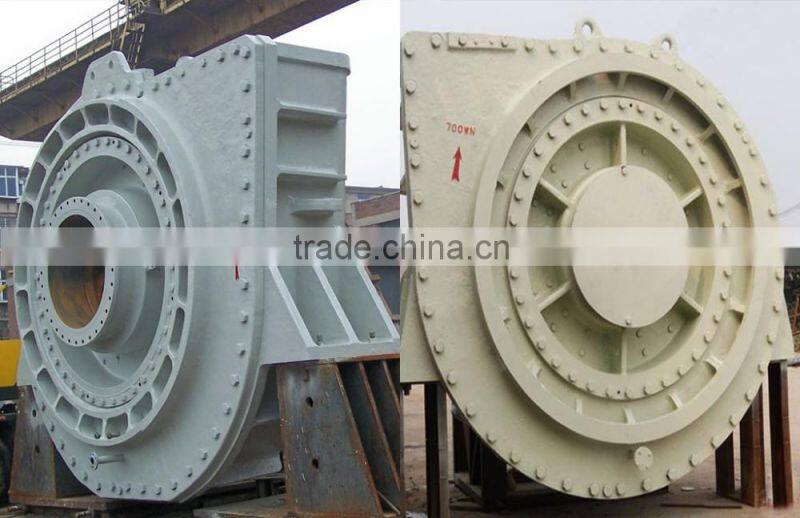

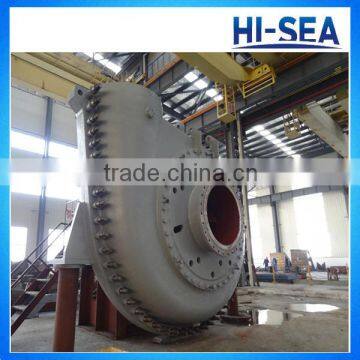

Dredge Pump(1)

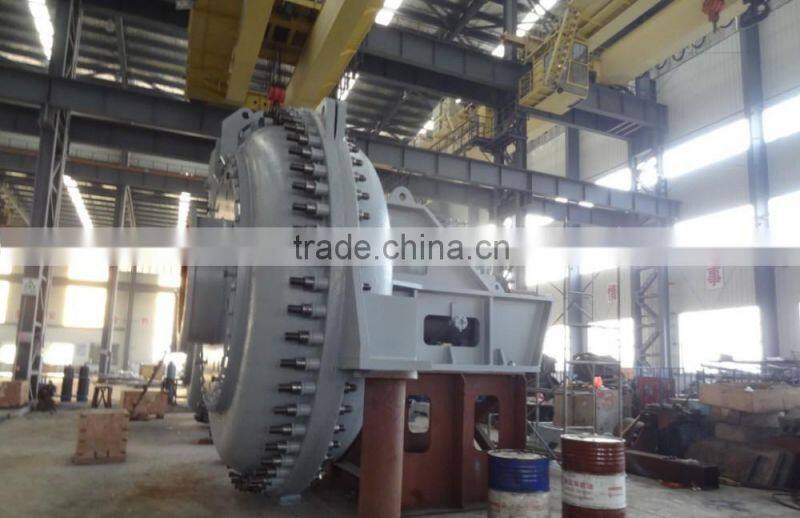

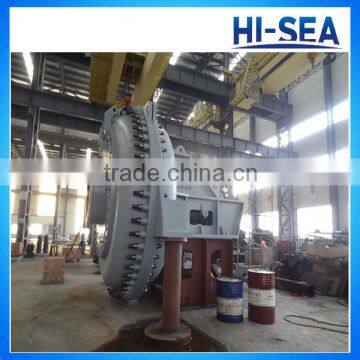

Dredge Pump(2)

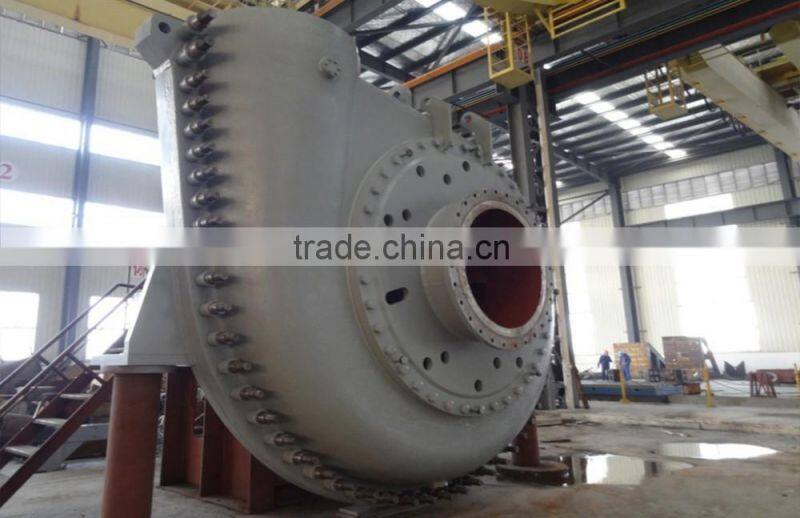

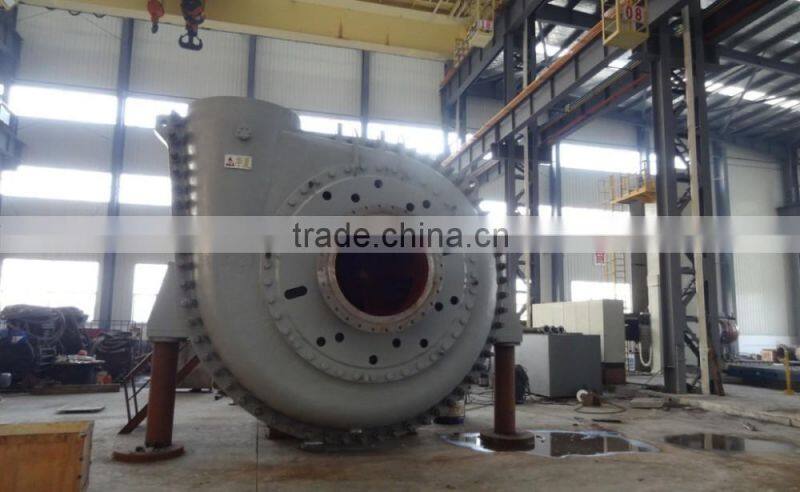

Dredge Pump(3)

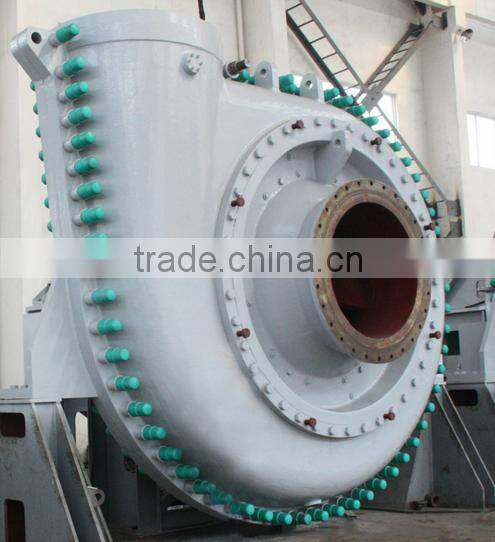

Dredge Pump(4)
