New Type CSD Dredge Cutter Head

Name: New Type CSD Dredge Cutter Head
Brand: Hi-sea
Availability: InStock

FOB Price

US$ 1 - 60,000 / Piece

1 Piece(Min. Order)

Port Shanghai Qingdao and other ports
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China		Brand Name	Hi-sea
Model Number	Client's requirements		Part	Other, Dredging Cutter Head

Product Description

New Type CSD Dredge Cutter Head

high quality dredge cutter head high quality cutter head dredger cutter head

New type dredge cutter head of cutter suction dredger is mainly used to cooperate with the dredger for homework.Dredger is a very common device in the clearing operations.Dredgers are in charge of dredging work and so on.The work efficiency is very high.However,the new type dredge cutter head is an important part of cutter suction dredger.It is available for cutting and stirring sediment.And it largely determines the production quantity and the dredging efficiency.The cutter head is multi-use and can be used for slurry, mud, sand, compacted sand, gravel, rocks, and minerals.

The basic cutter head skeleton includes a hub, a ring and several curved arms that link the hub and ring together. The adapters with teeth or replaceable cutting edges are fitted on the front side of the cutter arm.

Hi-sea new type dredge cutter head has professional design and high quality.We provide a wide range of cutter heads to the clients. New type dredge cutter heads can be customized according to clients’ special requests.

Features:
Low cost
Low spill
Various cutter heads
Easy to repair
Refined tooth and cutting edge design
Replaceable dredge cutter teeth
Cutter shaft, cutter bearing,blade and others can be optional

Parameters:

Inner ring Dia.（mm）	No.of blade	Output torque (KN*M)	Speed(rpm)	Max shaft power (KW)	Suction Dia. (mm)	Capacity (m3/h)
830	7-8	9.7	0-34	35	250-300	200
955	7-8	17	0-35	62	350-400	350
955	7-8	21	0-30	66	350-400	350
1330	7-8	32	0-30	101	400-450	650
1550	7-8	56	0-30	176	500-550	900
1750	8-9	75	0-32	251	600-650	1200
1750	8-9	84	0-30	264	600-650	1200
1750	7-8	90	0-24	226	600-650	1200
1830	8-9	119	0-30	375	600-650	1600
2000	8-9	175	0-30	550	650-700	1800
2150	8-9	180	0-30	750	700-750	2000
2260	8-9	286	0-30	900	800-850	3000
2330	9-10	350	0-30	1100	850-900	4000
2400	9-10	446	0-30	1400	900-950	4500

Note:Customization is available according to clients' requirements.

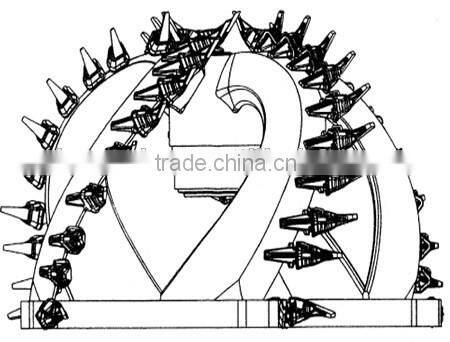

Drawing of New Type CSD Dredge Cutter Head

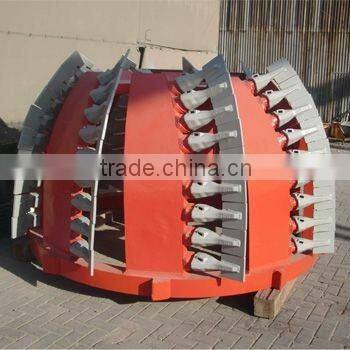

Detailed Image

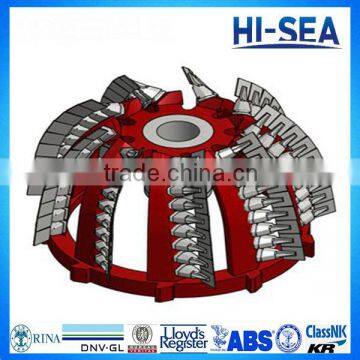

New Type CSD Dredge Cutter Head(1)

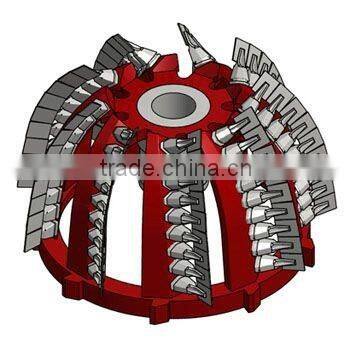

New Type CSD Dredge Cutter Head(2)

Certifications

RINA LR BV DNV

ABS NK CCS KR
